M5Stack NFC Universal Unit (ST25R3916) - 13.56MHz RFID Reader/Writer Module

M5Stack NFC Universal Unit (ST25R3916) – 13.56MHz RFID Reader/Writer Module

SKU: U216 Categories: RFID Reader, RFID Emulator
Brand: MTools Tec

$9.99

SKU: U216 – High-performance NFC/RFID read/write unit with ST25R3916 IC supporting ISO14443A/B, FeliCa™, ISO15693 protocols. Features I2C interface, card emulation mode, and LEGO-compatible design for access control, identity verification, and smart transportation applications.

Out of stock

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

Overview

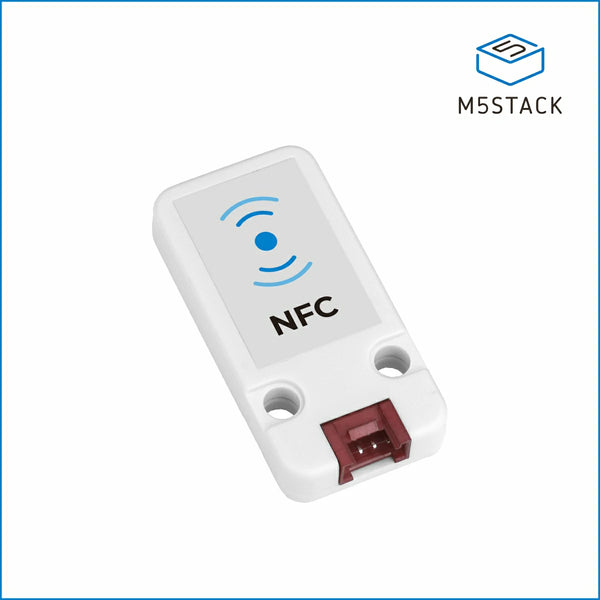

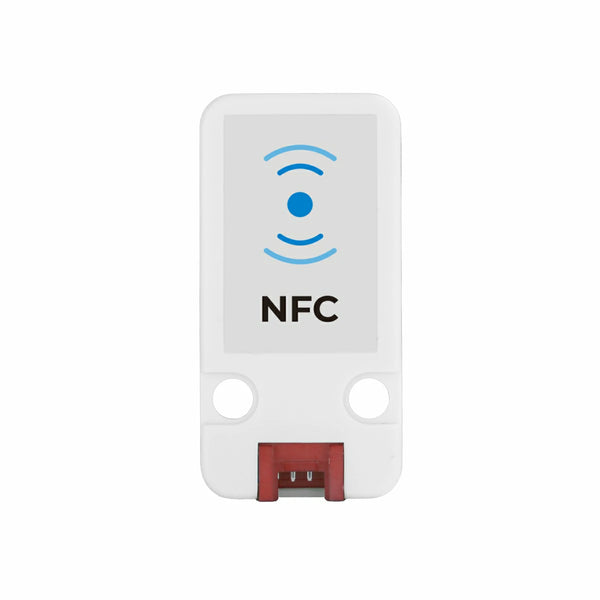

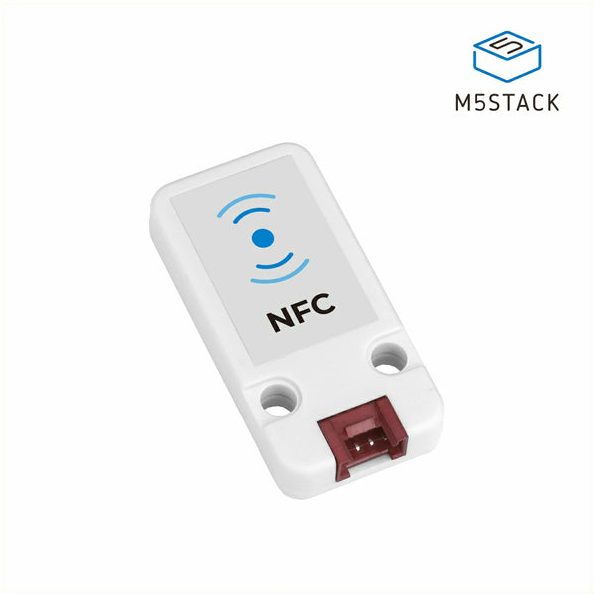

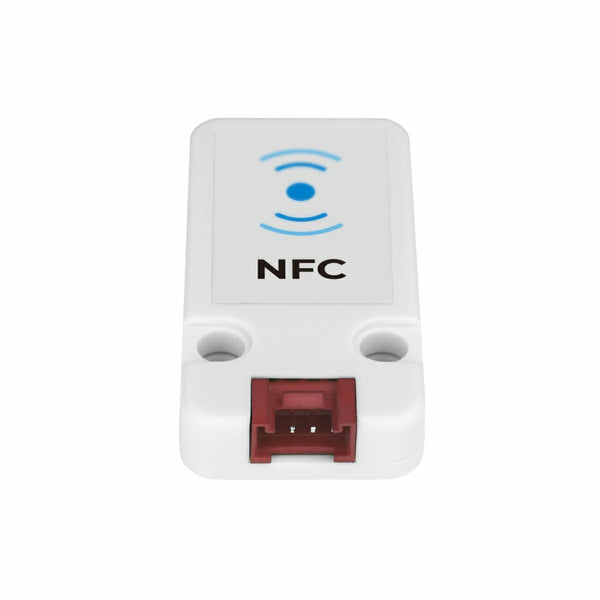

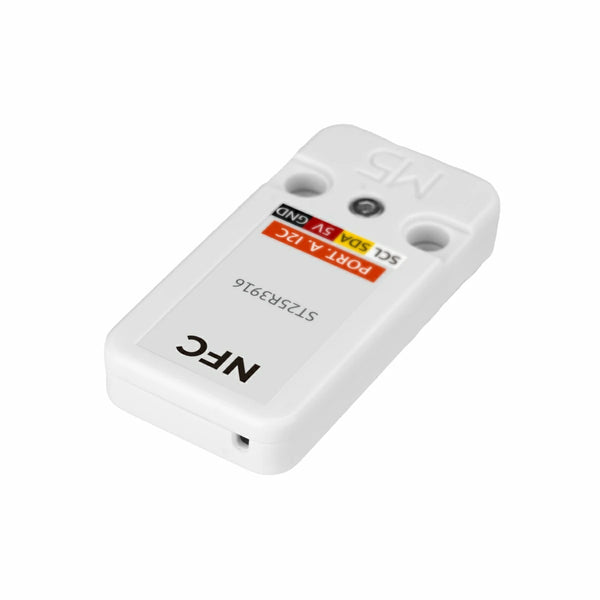

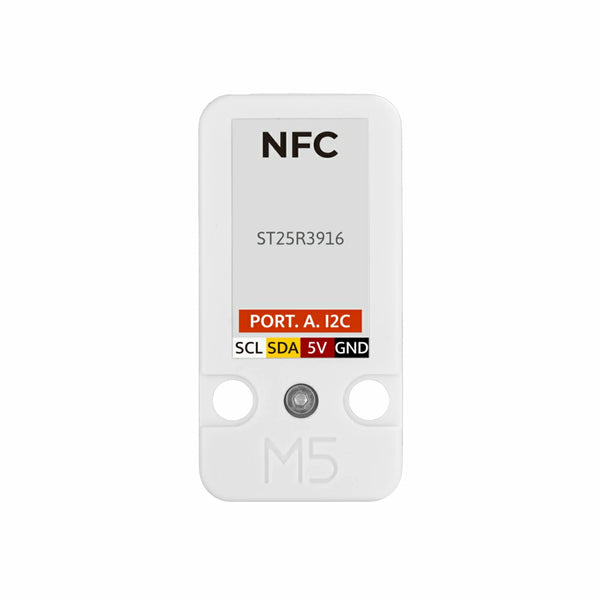

Unit NFC is a near-field communication read/write unit operating at 13.56 MHz. It features the ST25R3916 high-performance NFC front-end IC, supporting mainstream protocols including ISO 14443A, ISO 14443B, FeliCa™, and ISO 15693, enabling reliable read/write operations and data exchange with a wide variety of NFC/RFID tags and cards.

The IC supports reader/writer mode, card emulation mode, and custom protocol mode, with automatic antenna tuning, high-sensitivity reception, and comprehensive protocol handling. Communication with the host is via I2C interface for stable and reliable data transmission. The LEGO-compatible hole design makes structural integration straightforward.

Features

13.56 MHz high-frequency near-field communication
Equipped with ST25R3916 high-performance NFC IC
Supports ISO 14443A, ISO 14443B, FeliCa™, and ISO 15693 protocols
Three operating modes: Reader/Writer / Card Emulation / Custom Protocol

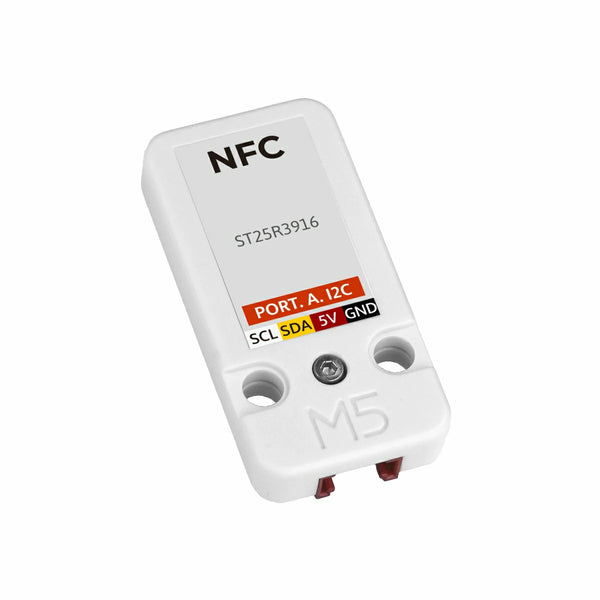

I2C communication interface (@0x50, 100K / 400K)
Read/write range: ≤ 40mm
LEGO-compatible mounting holes for easy structural integration

Supported Protocols

Reader / Writer Mode

NFC-A (ISO 14443A)
NFC-B (ISO 14443B)
NFC-F (FeliCa™)
NFC-V (ISO 15693)

Card Emulation Mode

NFC-A
NFC-F

Specifications

Parameter	Value
IC	ST25R3916-AQWT
Operating Frequency	13.56 MHz
Communication Interface	I2C @0x50 (100K / 400K)
Read/Write Range	≤ 40mm
Power – Sleep	5V @ 19.33 µA
Power – Continuous Reading	5V @ 67.65 mA
Power – Intermittent Reading	5V @ 66.48 mA
Product Size	48.0 × 24.0 × 8.0 mm
Product Weight	5.9 g
Package Size	138.0 × 93.0 × 9.0 mm
Gross Weight	11.5 g

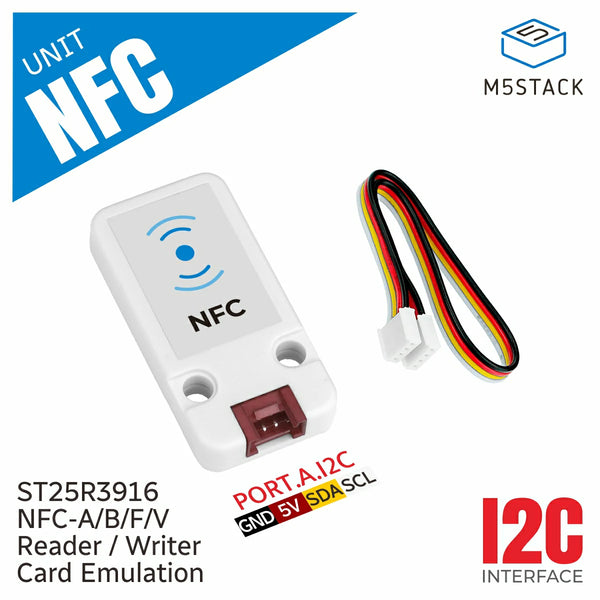

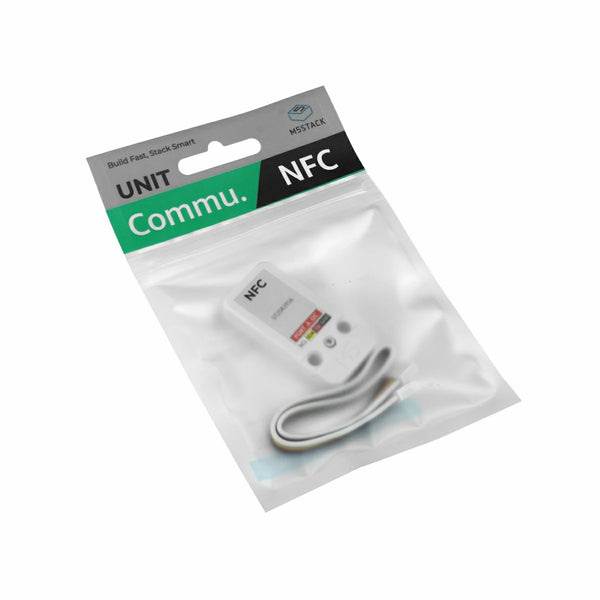

Includes

1 × Unit NFC (ST25R3916)
1 × HY2.0-4P Grove Cable (20cm)

Applications

Access control systems
Identity authentication & verification
Smart transportation
NFC/RFID tag read/write tools
Contactless payment prototyping

Development Platforms

UiFlow2
Arduino IDE

📄 Official Documentation (docs.m5stack.com)
