GAT562 30s Kit – 30dBm Mesh Device with Filter

SKU: MTGAT56230S Categories: Lora, Lora Node
Brand: MTools Tec

Price range: $69.99 through $75.99

The nRF52840 Off-Grid tracker with Buzzer, RGB LEDs, GPS and BME280 Pad. 30dBm 1W Power.

New version comes with Filter, please choose the frequency accordingly.

Working Frequency

Type

Clear

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

The GAT562 Mesh Tracker is an advanced off-grid communication device featuring:

Core Technology

nRF52840 chipset for Bluetooth 5.0 connectivity
SX1262 LoRa radio for long-range communication
1.3″ TFT display for clear information viewing
5020 PWM Buzzer for customized message ringtone
RGB LED for changeable message indicator

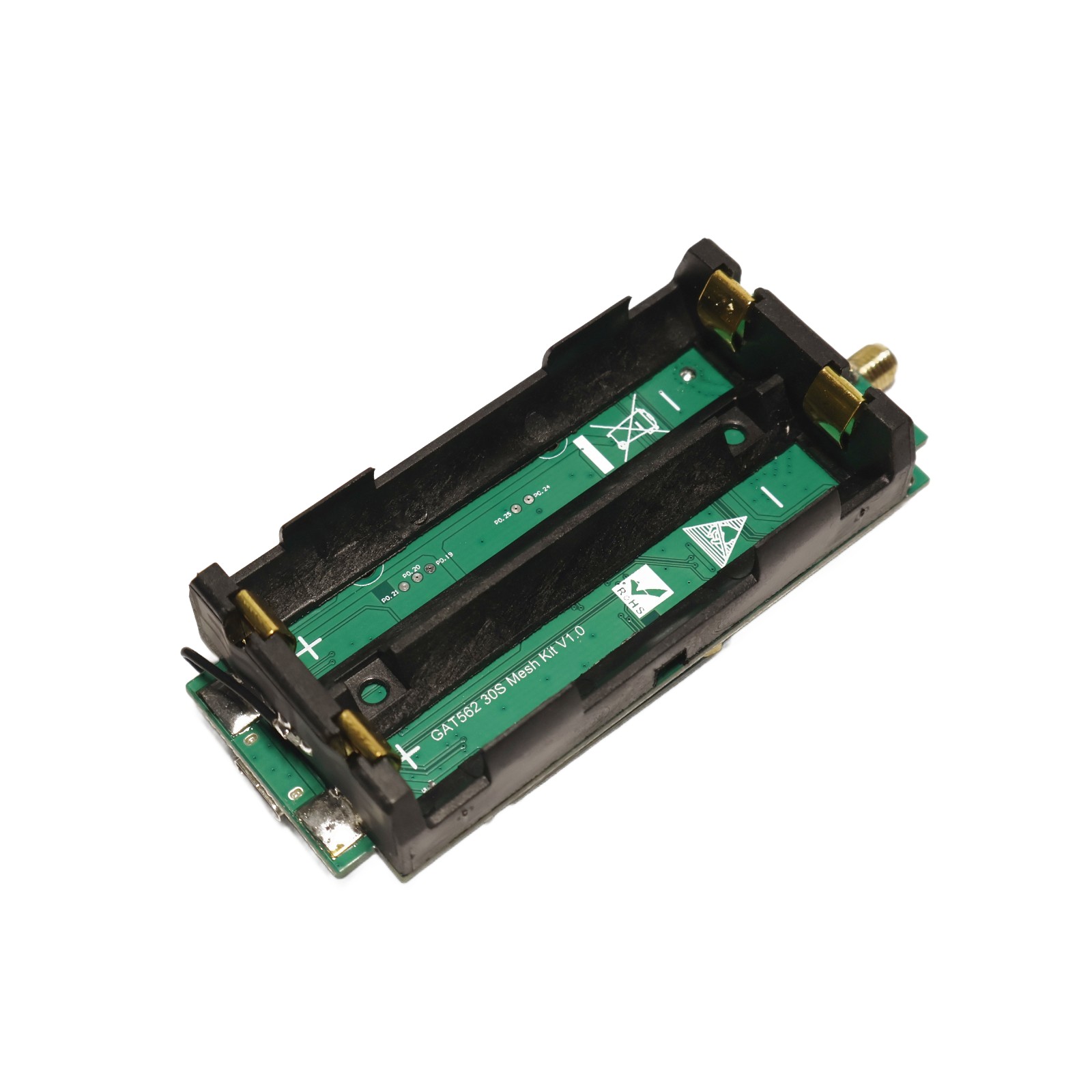

2×18650 Battery Shell for replaceable battery

Specifications

Processor: nRF52840 (Bluetooth 5.0)
Radio: SX1262 (LoRa)
Power: 2500mAh Li-ion battery
Display: 1.3-inch TFT
Range: 107+ km (terrain dependent)

How to flash firmware

Download Meshtastic Firmware

Visit https://github.com/mtoolstec/mt-firmware and download the latest released zip
Unzip the unified zip and find firmware-gat562_mesh_tracker_pro-xxxxxxx.uf2

Flash MeshCore Firmware

visit https://ssaprus.works/ and follow the web instruction to install WhisperOS via USB

Drag & Drop UF2

Connect to USB
Power on with side button pressed
Drag and drop uf2 firmware to device

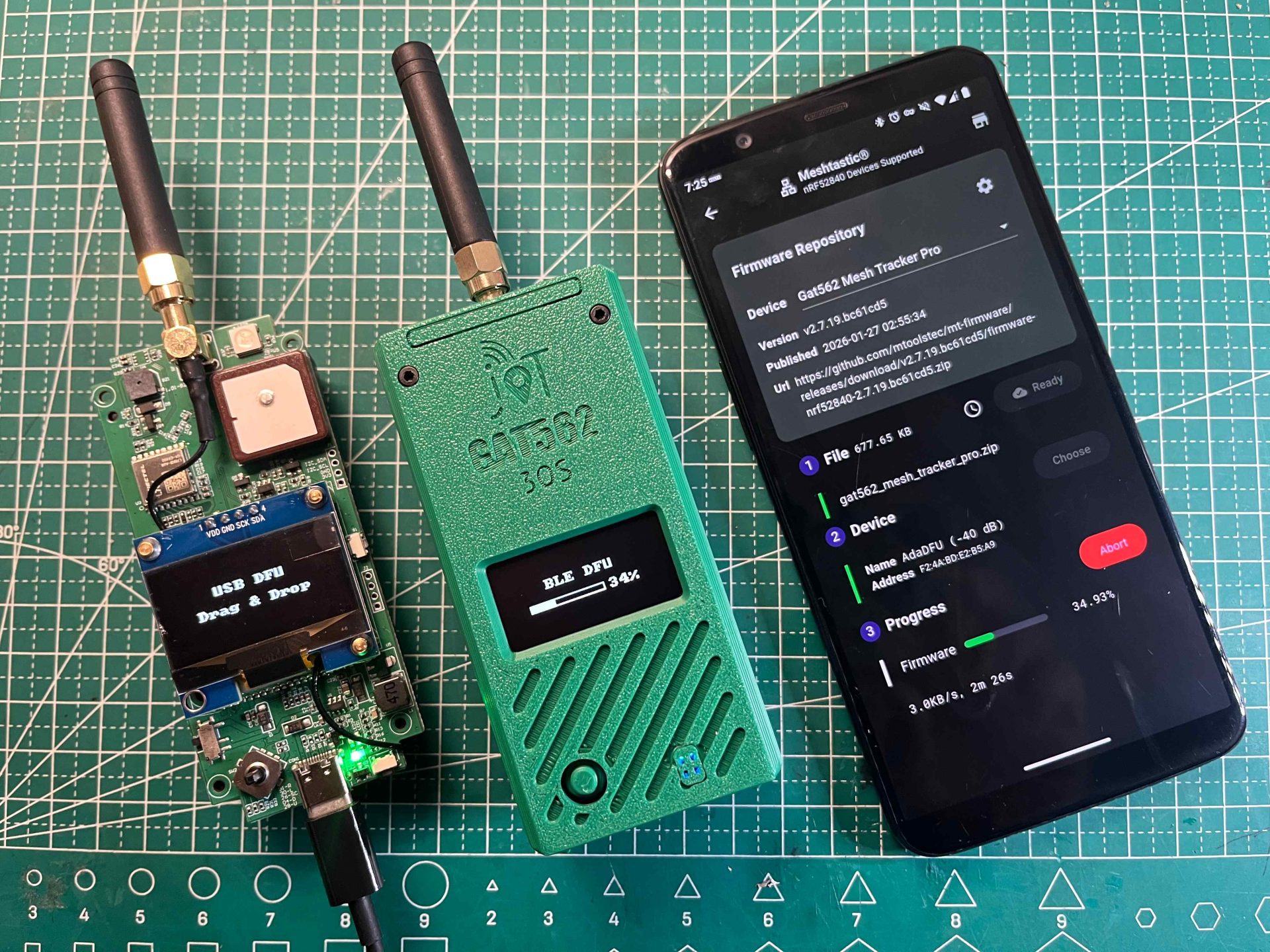

Bluetooth OTA

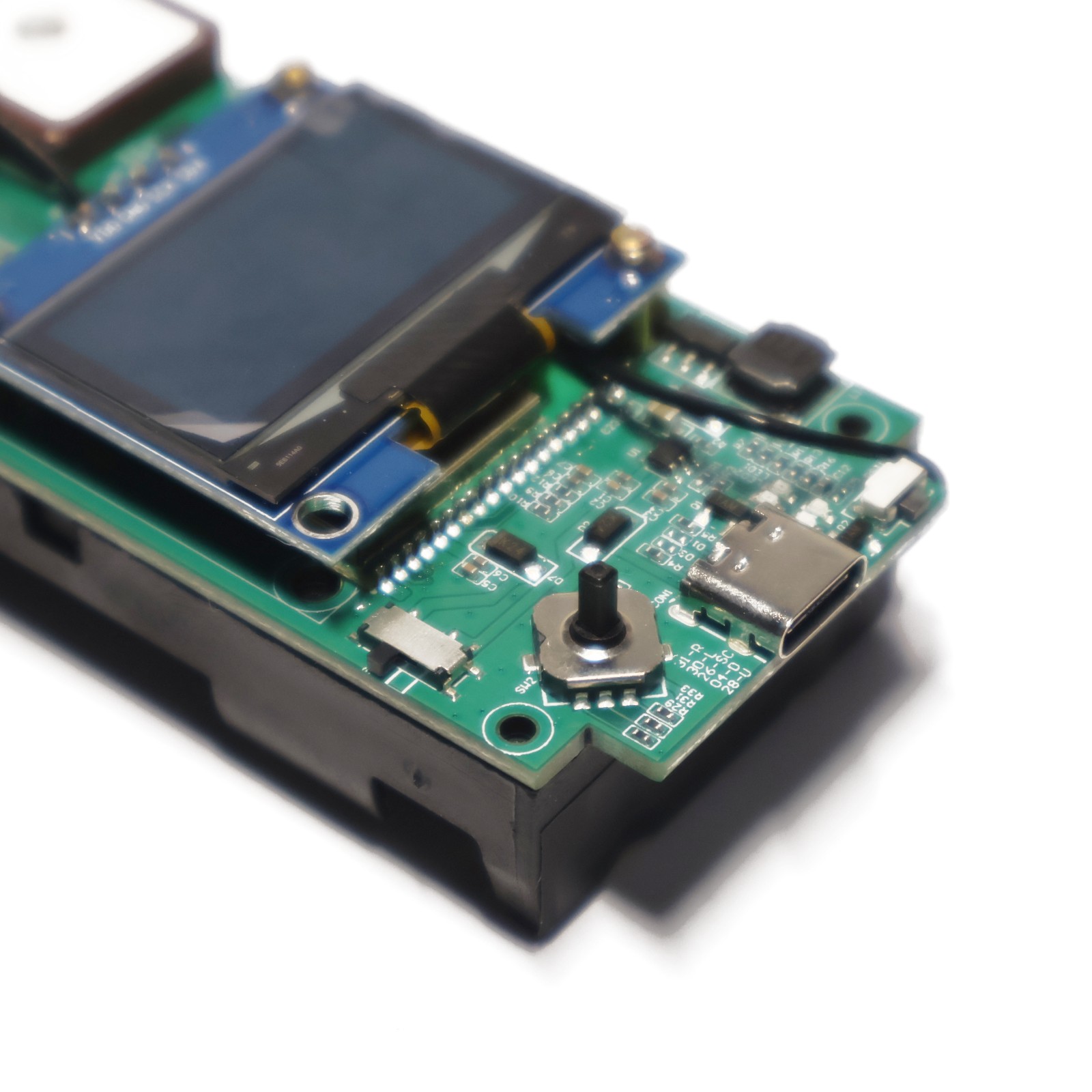

Power on with Joystick pressed
Use MTools BLE or nRF52 DFU App to connect device
One-click to download and start DFU

FAQ on GAT562 30s

Q: Can run Meshtastic or MeshCore at the same time?

A: Nope. The device can only run one kind of Firmware at same time.

Q: Can I switch between Meshtastic or MeshCore Powered firmware with Bluetooth

A: Yes, it’s easy to do it with MTools BLE App and GAT562 30s with Advanced Bootloader.

Q: Why does it 30s Kit keep rebooting when connected to PC via USB?
A: PC provides a very low current on 5V output via USB. The power is not enough to sent 1W signal. Just install 18650 battery or connect to a powerful and stable 5V power will be steady.

Use Cases

Outdoor adventures
Emergency communication
IoT development
Remote area connectivity

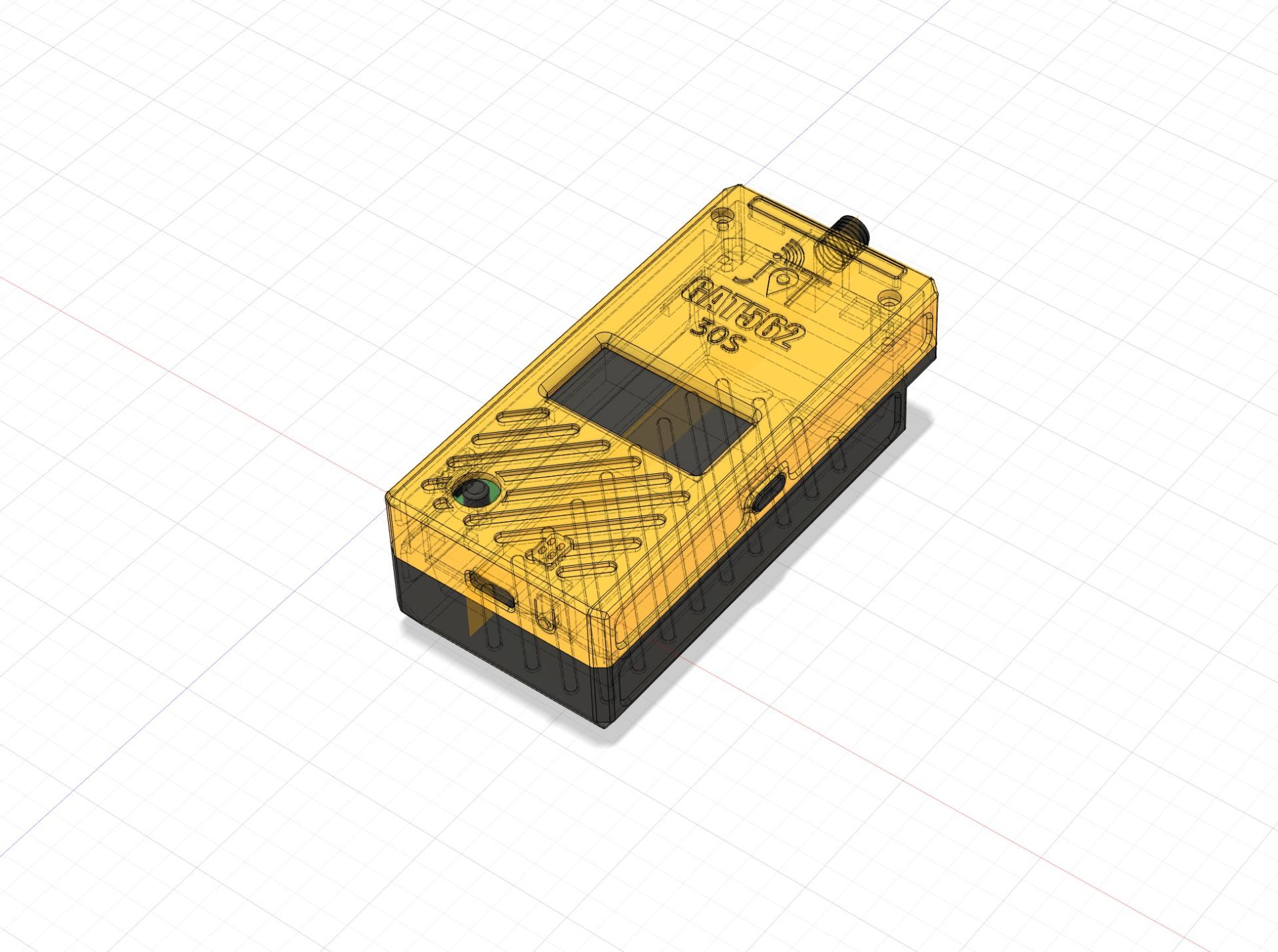

3D Printing Housing

https://makerworld.com/en/models/1971757-gat562-30s-housing#profileId-2120099

🔧 Browser-Based Firmware Flasher

Flash the latest firmware to your GAT562 30s device directly in Chrome/Edge — no software install required.

🚀 Open Web Flasher

Supports nRF52840-based devices (GAT562 30s series)
Works in Chrome / Edge desktop (Web Serial API required)
One-click flash — no drivers, no CLI tools needed
