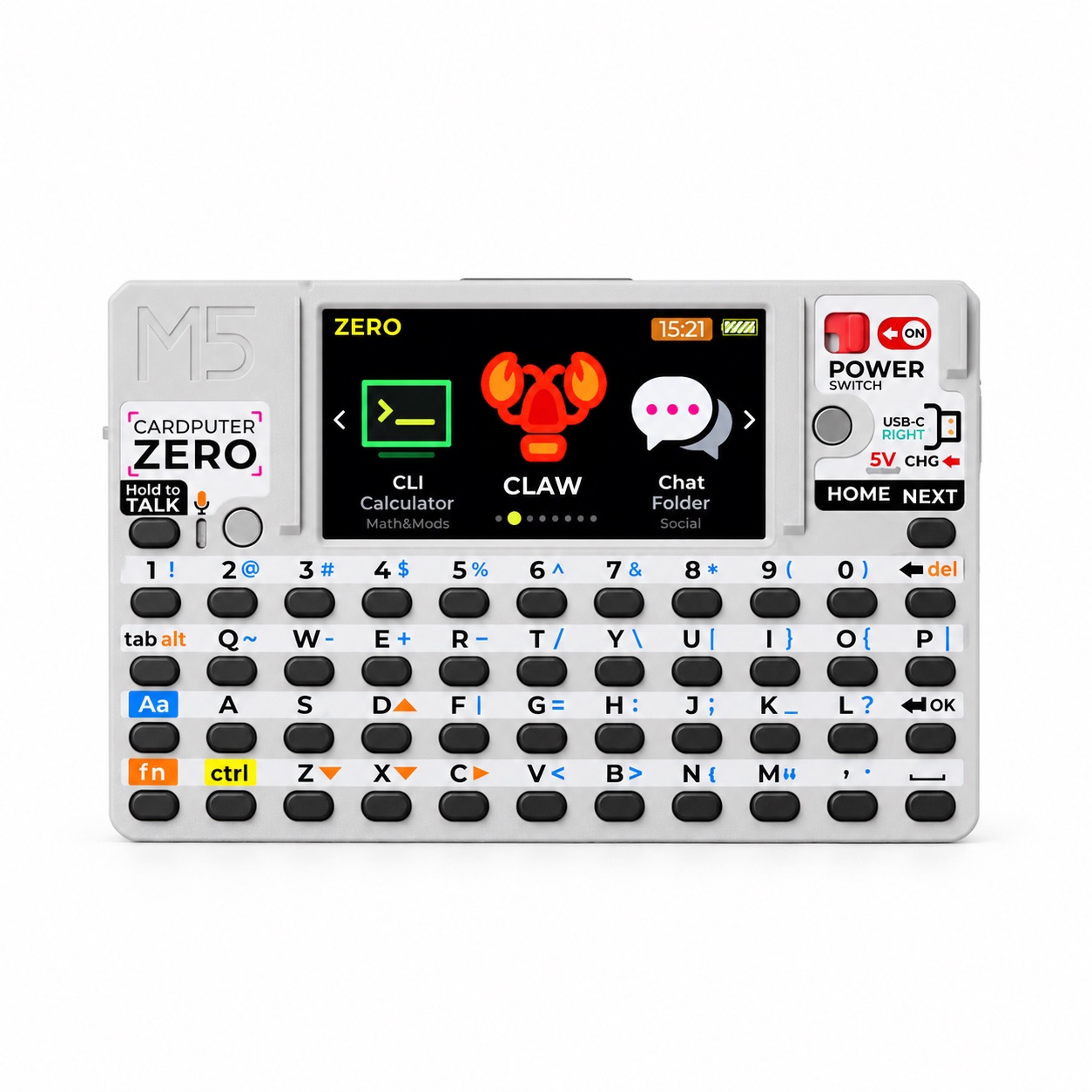

M5Stack CardputerZero main product image

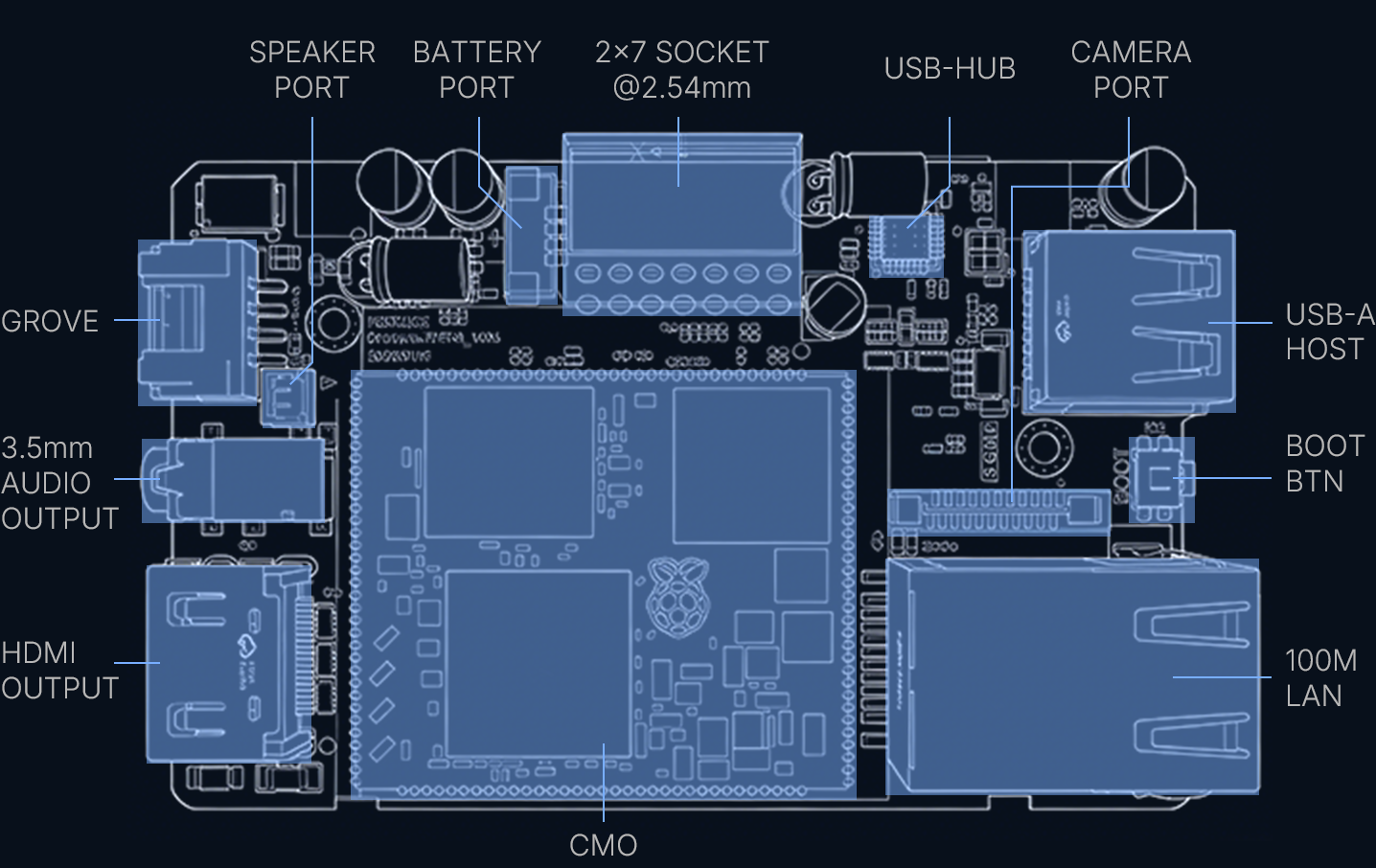

CardputerZero rear hardware and expansion ports

M5Stack CardputerZero – Pocket Raspberry Pi Linux Computer

SKU: MT-M5CZERO Category: IoT Devices
Brand: MTools Tec

A compact Raspberry Pi Linux computer with a 46-key keyboard, 1.9-inch display, Wi-Fi, Bluetooth and hardware expansion interfaces. Built for portable coding, terminal workflows and hands-on projects.

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

M5Stack CardputerZero

A pocket Raspberry Pi computer for coding, hardware experiments and portable Linux projects.

Linux, wherever you build

Work with SSH, Python, Git and terminal editors from a compact device with a physical keyboard. A Raspberry Pi Compute Module 0 provides a familiar Linux foundation for portable projects.

Made for hands-on projects

Connect compatible Grove and M5Unit accessories, or prototype your own hardware using the available SPI, I2C, UART, USB and GPIO interfaces.

More ways to create

Explore lightweight AI workflows, retro games and portable media projects. The integrated camera, motion sensor, speaker and audio output offer room for creative experiments.

Hardware at a glance

SPEC	PARAMETER
SoM	Raspberry Pi CM0
Display	1.9" ST7789P3, 170×320
Keyboard	TCA8418RVMR, 46 Keys
Storage	32GB microSD Card
Camera	IMX219, 8MP
Sensors	BMI270 IMU + BMM150 Magnetometer
RTC	RX8130CE
Audio	ES8388 Codec, 1W @ 8Ω Speaker, Microphone
Audio Jack	3.5mm, 32Ω Earphone
Connectivity	SR9900A 100M RJ45, GL852G USB 2.0 Hub
Display Out	1920×1080 @ 30Hz
IR TX/RX	MHS151RCT @ IRM-VB3843
Expansion	Grove HY2.0-4P + EXT 2.54-14P
Power	Battery 1750mAh, BQ27220 Fuel Gauge
Wireless	Wi-Fi 2.4GHz

Software capabilities depend on the installed operating system and applications. Expansion accessories shown in manufacturer demonstrations are not stated as included.

Build your pocket workflow

Use CardputerZero as a compact terminal, a hardware prototyping companion or a platform for interactive projects. Connect compatible modules to explore additional capabilities.

Product information: M5Stack CardputerZero manufacturer reference.

Specifications

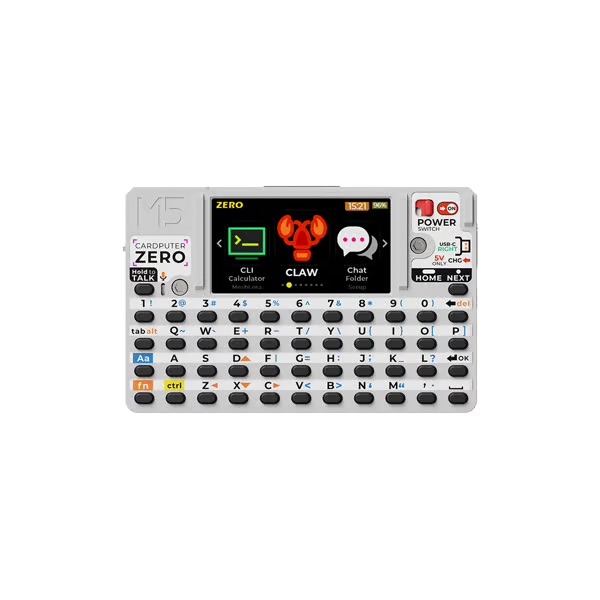

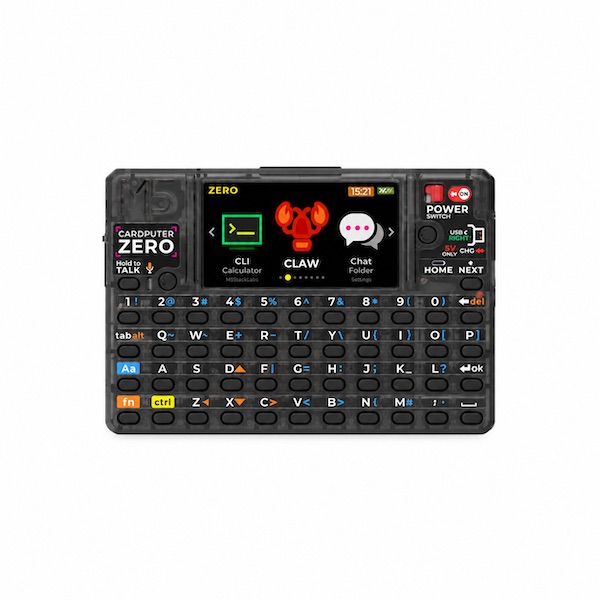

Color	Gray, Smoke Transparent
Color	Gray, Smoke Transparent

SoM	Raspberry Pi CM0
Keyboard	TCA8418RVMR, 46 Keys
Storage	32GB microSD Card
Camera	IMX219, 8MP
Sensors	BMI270 IMU + BMM150 Magnetometer
RTC	RX8130CE
Audio	ES8388 Codec, 1W @ 8Ω Speaker, Microphone
Audio Jack	3.5mm, 32Ω Earphone
Connectivity	SR9900A 100M RJ45, GL852G USB 2.0 Hub
Display Out	1920×1080 @ 30Hz
IR TX/RX	MHS151RCT @ IRM-VB3843
Expansion	Grove HY2.0-4P + EXT 2.54-14P
Wireless	Wi-Fi 2.4GHz
SoM	Raspberry Pi CM0	Keyboard	TCA8418RVMR, 46 Keys
Storage	32GB microSD Card	Camera	IMX219, 8MP
Sensors	BMI270 IMU + BMM150 Magnetometer	RTC	RX8130CE
Audio	ES8388 Codec, 1W @ 8Ω Speaker, Microphone	Audio Jack	3.5mm, 32Ω Earphone
Connectivity	SR9900A 100M RJ45, GL852G USB 2.0 Hub	Display Out	1920×1080 @ 30Hz
IR TX/RX	MHS151RCT @ IRM-VB3843	Expansion	Grove HY2.0-4P + EXT 2.54-14P
Wireless	Wi-Fi 2.4GHz

Specifications

Display	1.9" ST7789P3, 170×320
Display	1.9" ST7789P3, 170×320

Electronics

Power	Battery 1750mAh, BQ27220 Fuel Gauge
Power	Battery 1750mAh, BQ27220 Fuel Gauge

Color	Gray, Smoke Transparent
SoM	Raspberry Pi CM0
Display	1.9" ST7789P3, 170×320
Keyboard	TCA8418RVMR, 46 Keys
Storage	32GB microSD Card
Camera	IMX219, 8MP
Sensors	BMI270 IMU + BMM150 Magnetometer
RTC	RX8130CE
Audio	ES8388 Codec, 1W @ 8Ω Speaker, Microphone
Audio Jack	3.5mm, 32Ω Earphone
Connectivity	SR9900A 100M RJ45, GL852G USB 2.0 Hub
Display Out	1920×1080 @ 30Hz
IR TX/RX	MHS151RCT @ IRM-VB3843
Expansion	Grove HY2.0-4P + EXT 2.54-14P
Power	Battery 1750mAh, BQ27220 Fuel Gauge
Wireless	Wi-Fi 2.4GHz
