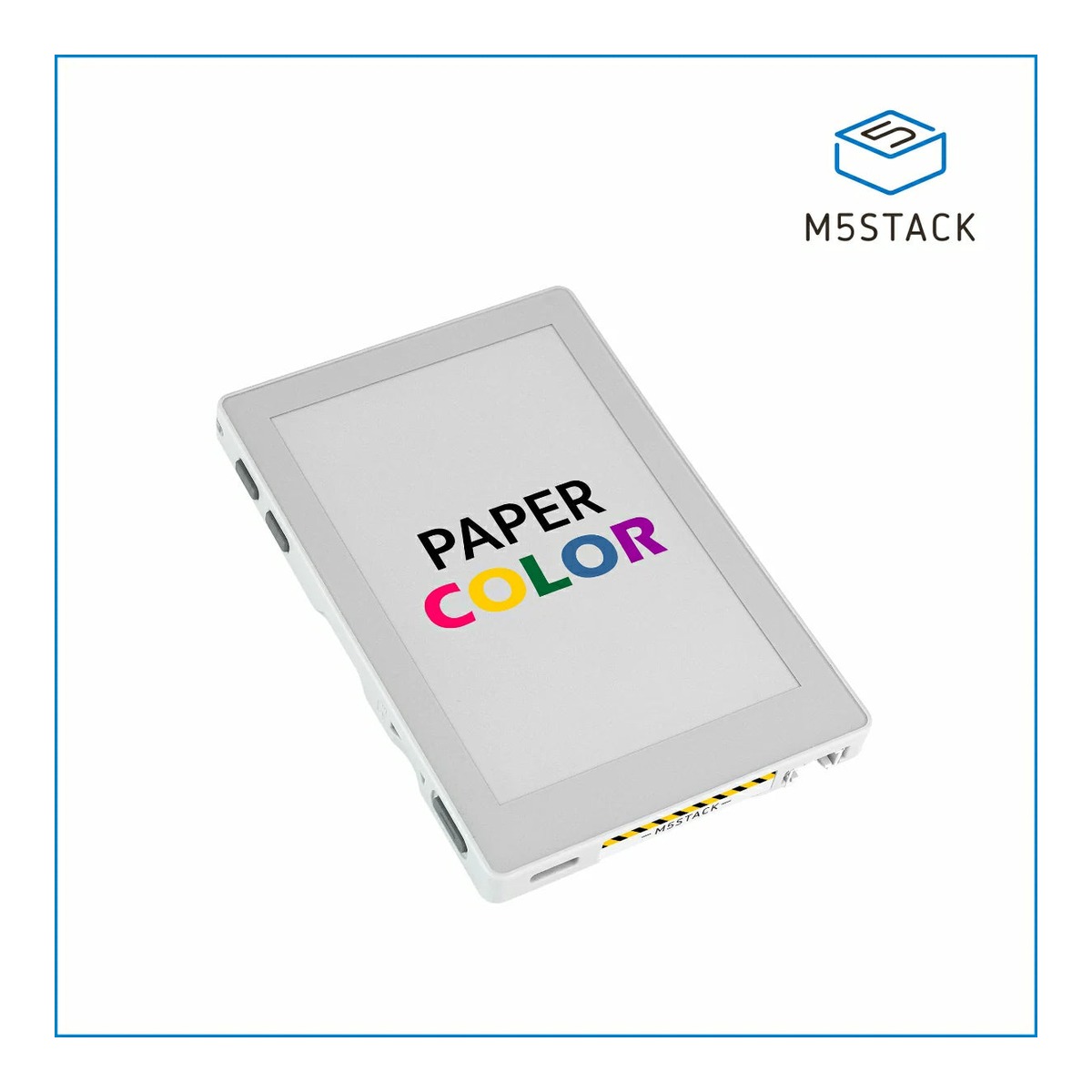

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 2

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 3

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 4

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 5

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 6

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 7

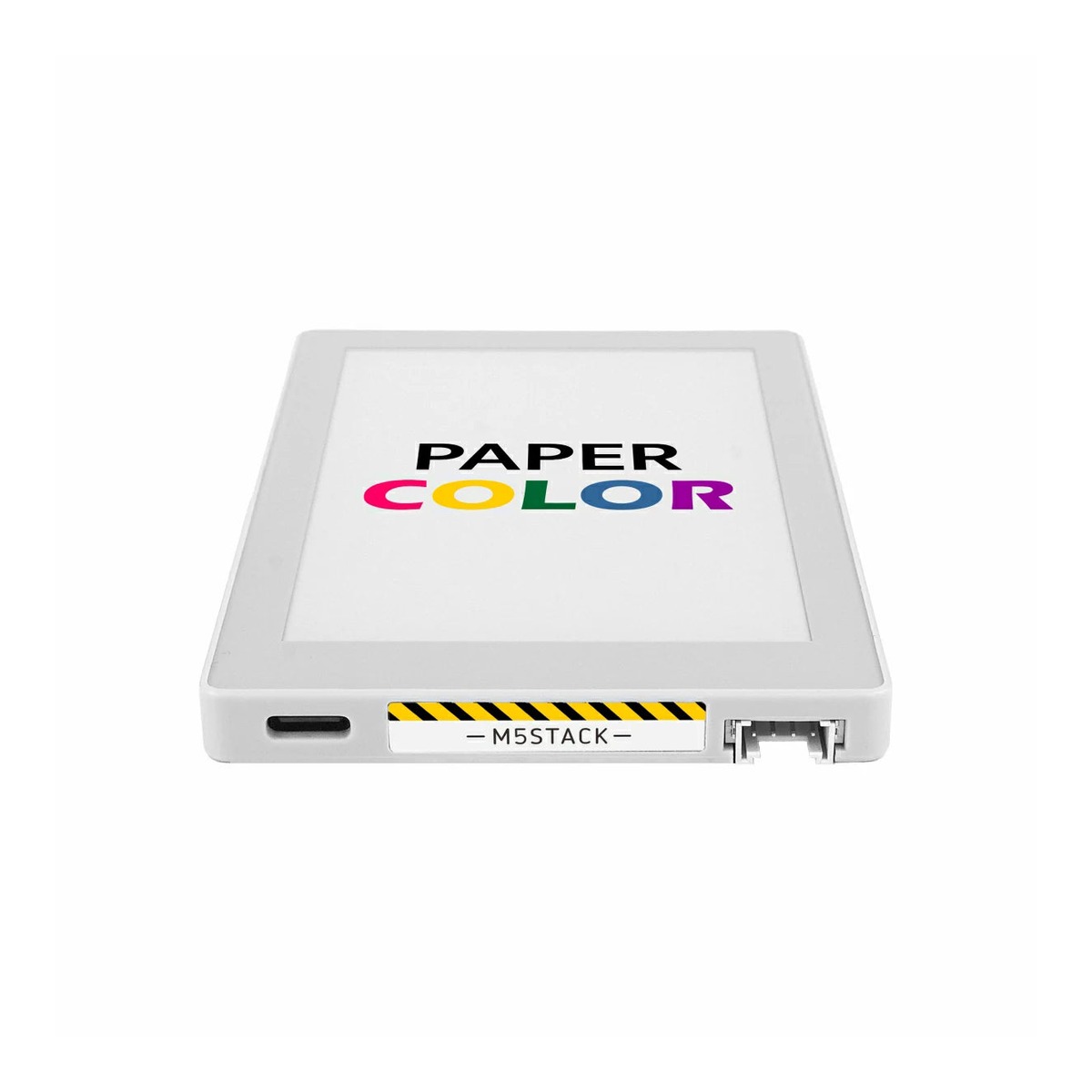

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 8

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 9

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 10

M5Paper Color – ESP32-S3 Dev Kit with 4" Full-Color E-Ink Display - Image 11

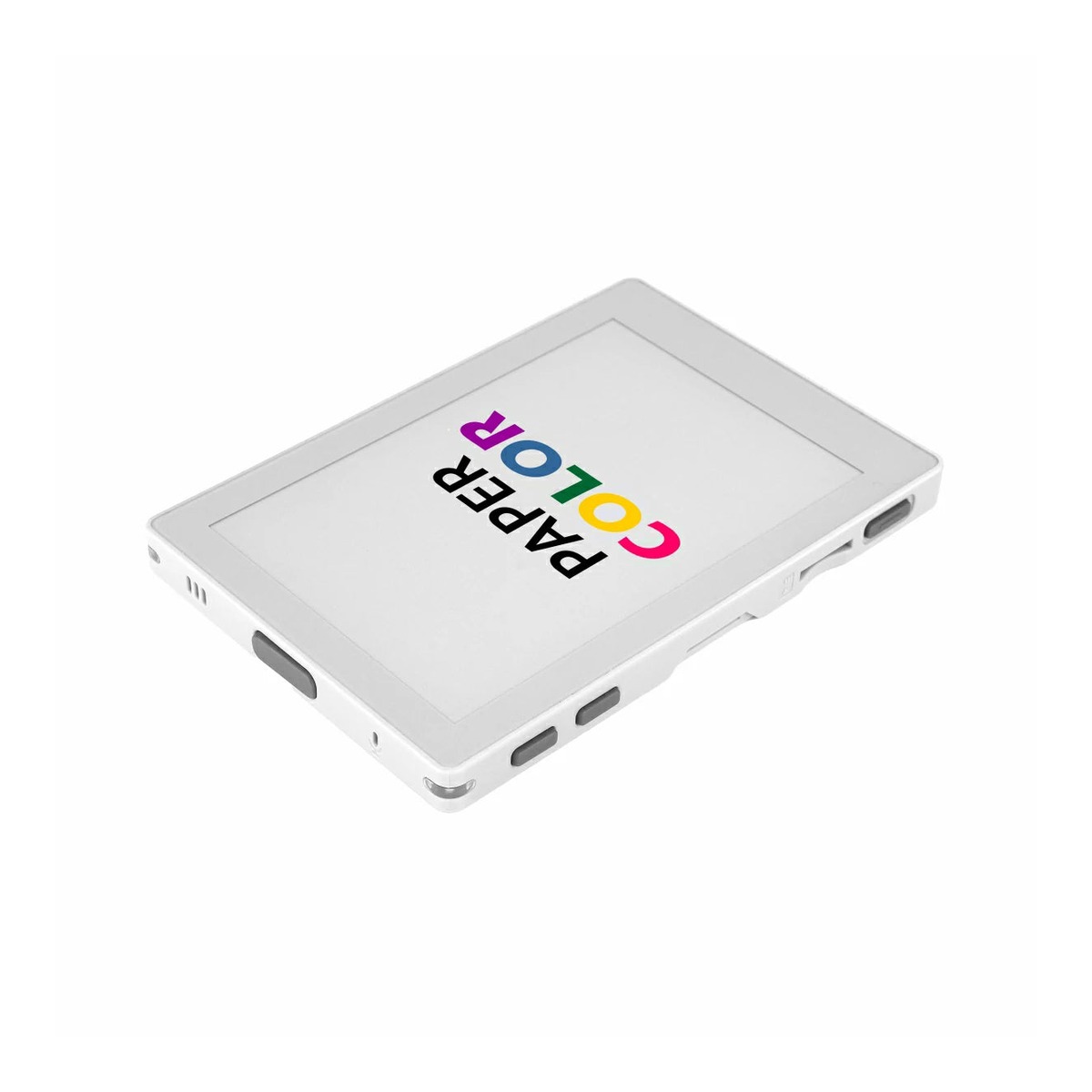

M5Paper Color – ESP32-S3 Dev Kit with 4″ Full-Color E-Ink Display

SKU: M5-C151 Category: IoT Devices
Brand: MTools Tec

Original price was: $89.99.Current price is: $79.99.

Meet M5Paper Color — a powerful ESP32-S3 development board featuring a stunning 4-inch SPECTRA 6 full-color E-Ink display (600×400). Ultra-low standby power (92uA), built-in Wi-Fi, audio, sensors, and a 1250mAh battery — the perfect platform for smart IoT displays, e-signage, and voice-interactive devices.

7 in stock

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

M5Paper Color — Full-Color E-Ink Dev Board with ESP32-S3

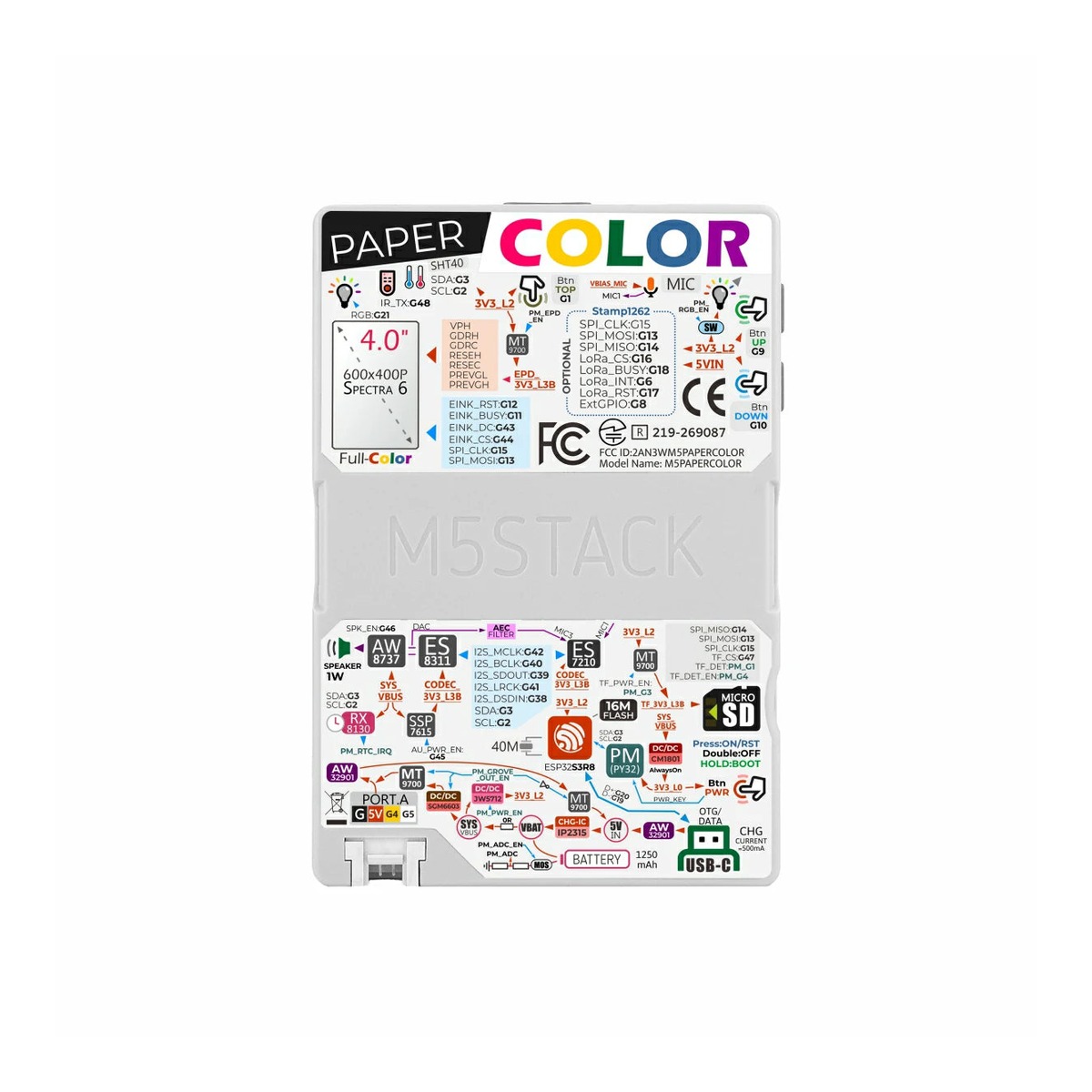

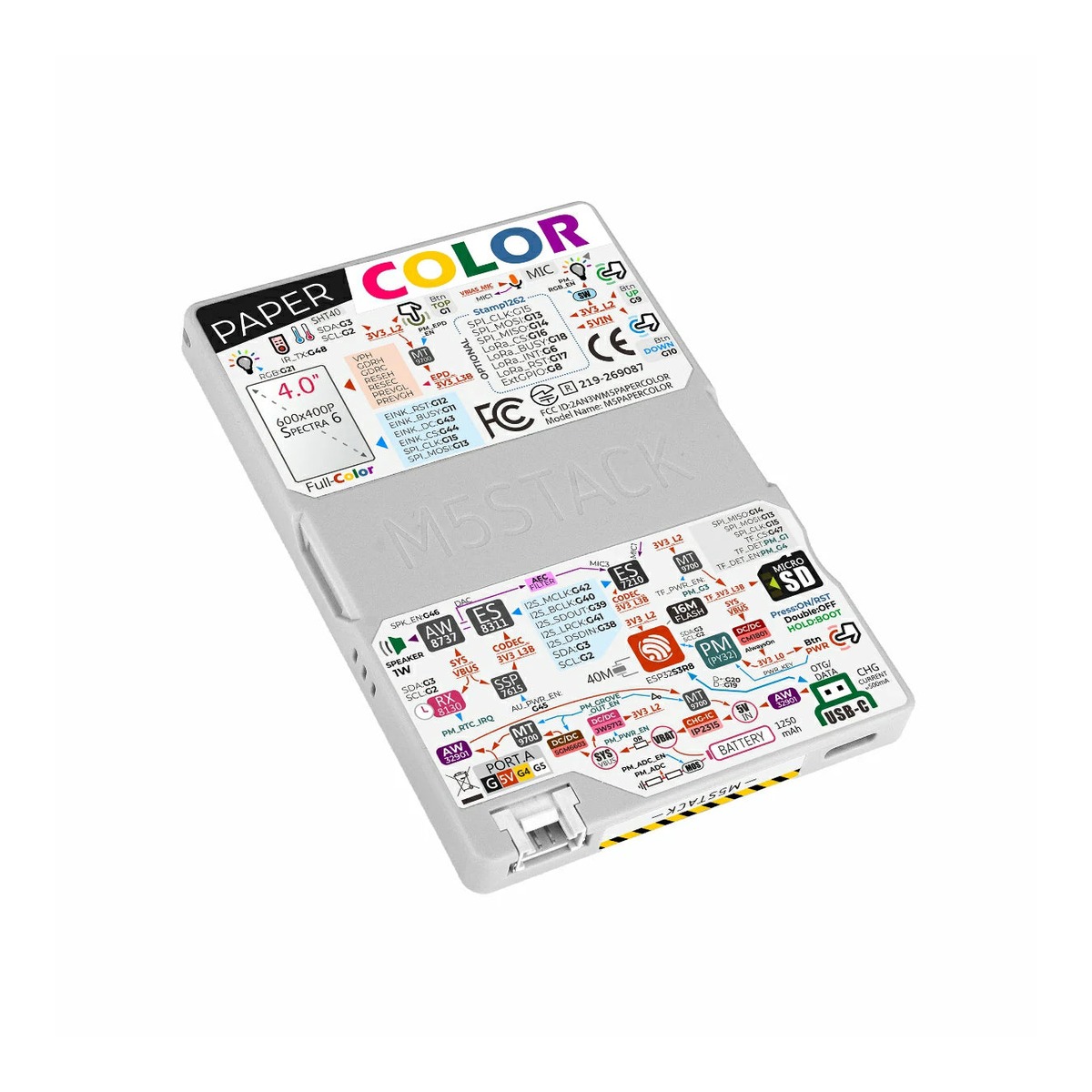

The M5Paper Color (SKU: C151) is an all-in-one IoT development board centered around a 4-inch SPECTRA 6 E-Paper display at 600×400 resolution. Powered by the ESP32-S3R8 (dual-core Xtensa LX7 @ 240MHz) with 16MB Flash and 8MB PSRAM, it delivers exceptional performance for embedded display applications while maintaining ultra-low power consumption.

Stunning Full-Color E-Ink Display

4-inch SPECTRA 6 (E6) full-color e-paper — vivid, sunlight-readable
Resolution: 600 x 400 pixels
Ultra-low power: content persists without power draw
Standby consumption: only 92.53uA

Powerful Core and Connectivity

ESP32-S3R8 @ dual-core 240MHz
16MB Flash + 8MB PSRAM
2.4 GHz Wi-Fi built-in

Complete Audio System

ES8311 audio codec + AW8737A amplifier
1W speaker (8 Ohm) for clear playback
MEMS microphone with AEC echo cancellation

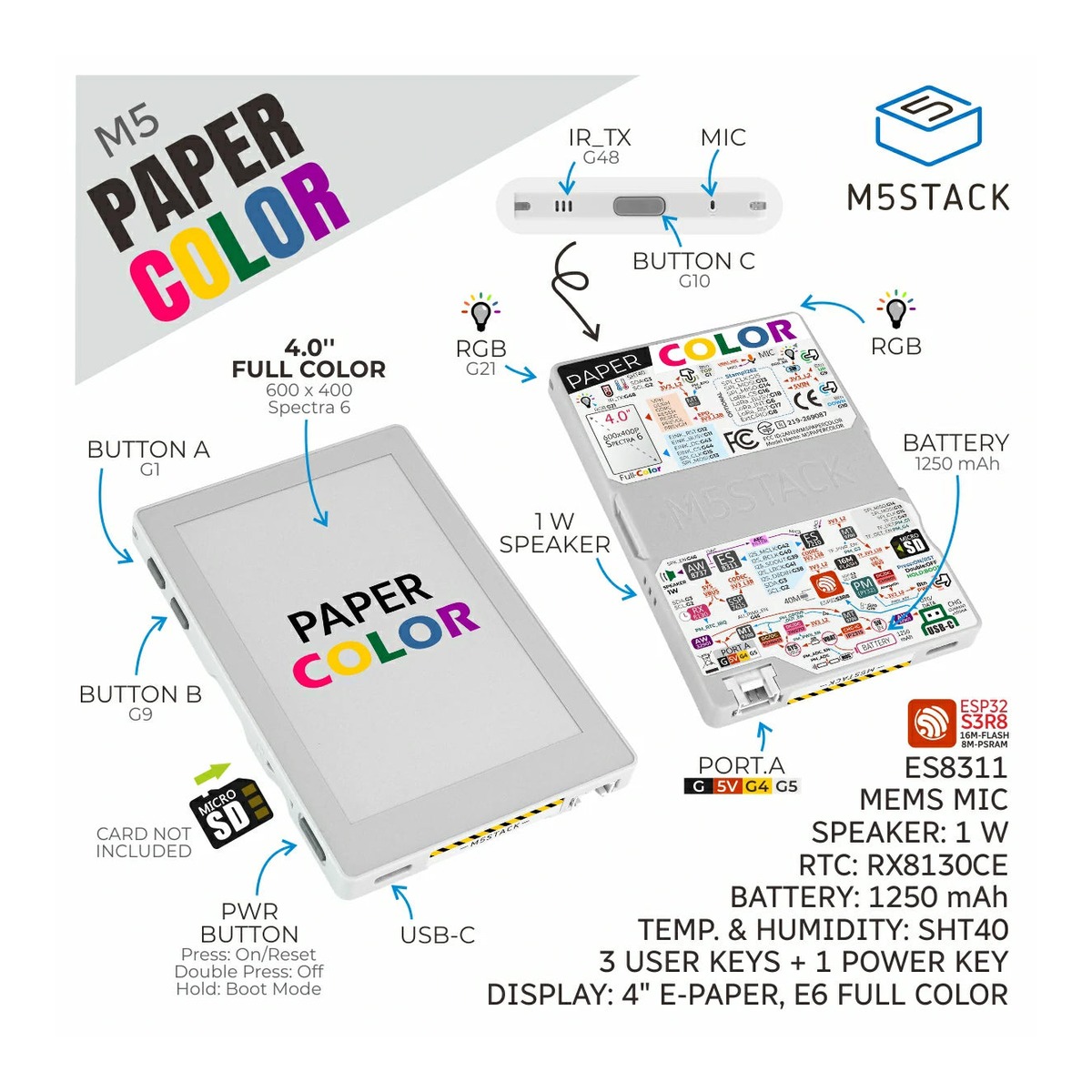

Rich Onboard Peripherals

SHT40 temperature and humidity sensor
RX8130CE real-time clock (RTC)
microSD card slot for expanded storage
Infrared emitter
2x RGB LED

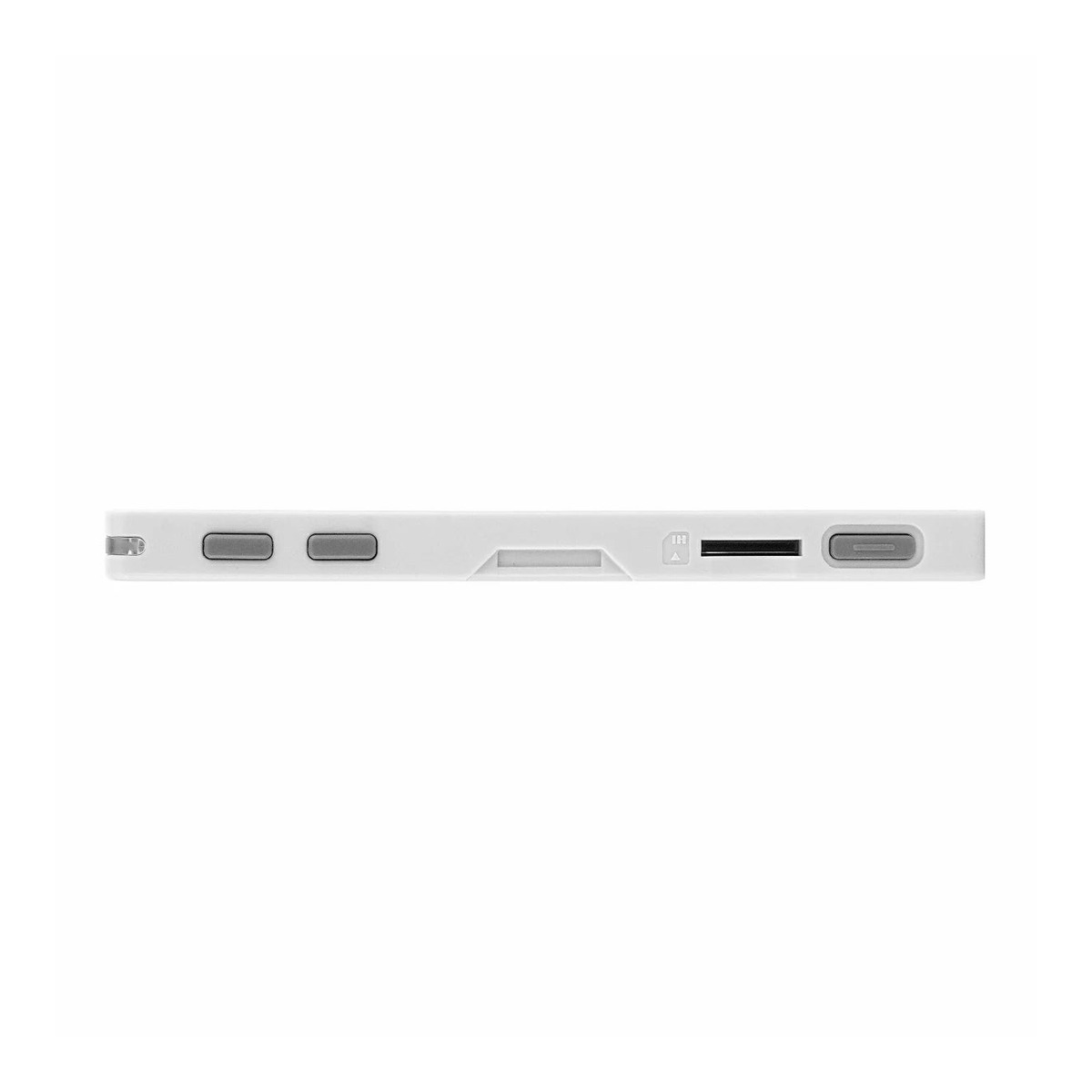

3x user buttons + 1x power button (ON/OFF/RESET/BOOT)
HY2.0-4P expansion interface

Long-Lasting Battery Life

1250mAh built-in rechargeable battery
M5PM1 multi-stage power management system

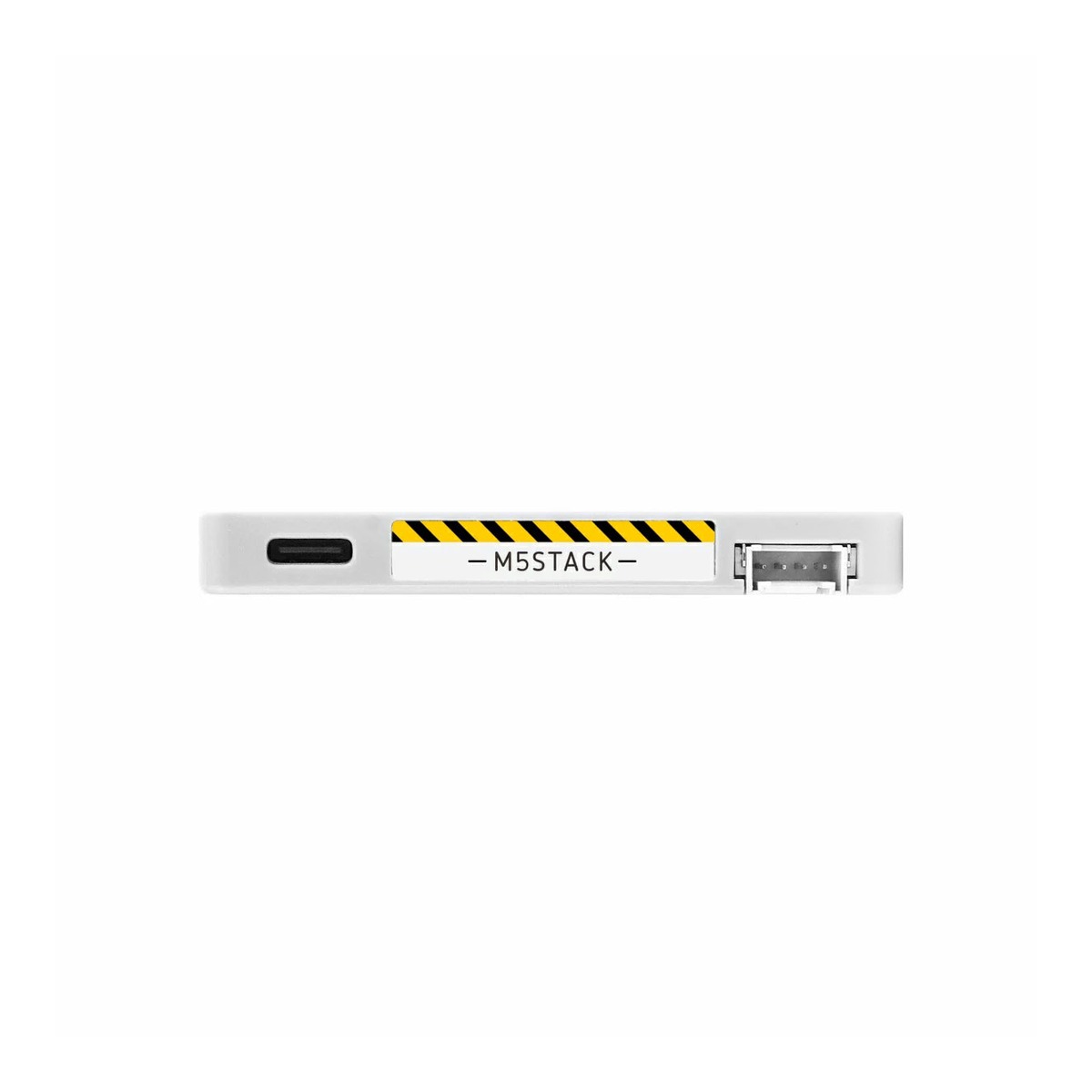

USB Type-C charging (5V DC input)

Specifications

SoC: ESP32-S3R8, Dual-core Xtensa LX7, up to 240MHz
Flash: 16MB | PSRAM: 8MB
Display: 4″ E-Paper E6 Full-Color, 600×400 resolution
Battery: 1250mAh
Audio Codec: ES8311 | Speaker: 1W @ 8 Ohm
Microphone: MEMS + ES7210 ADC + AEC
Temp/Humidity: SHT40 | RTC: RX8130CE
Storage: microSD | RGB LEDs: 2x
Power Input: USB Type-C, 5V DC
Standby Power: 92.53uA | Full Load: 211.97mA
Dimensions: 70.8 x 103.9 x 8.5mm | Weight: 73.3g

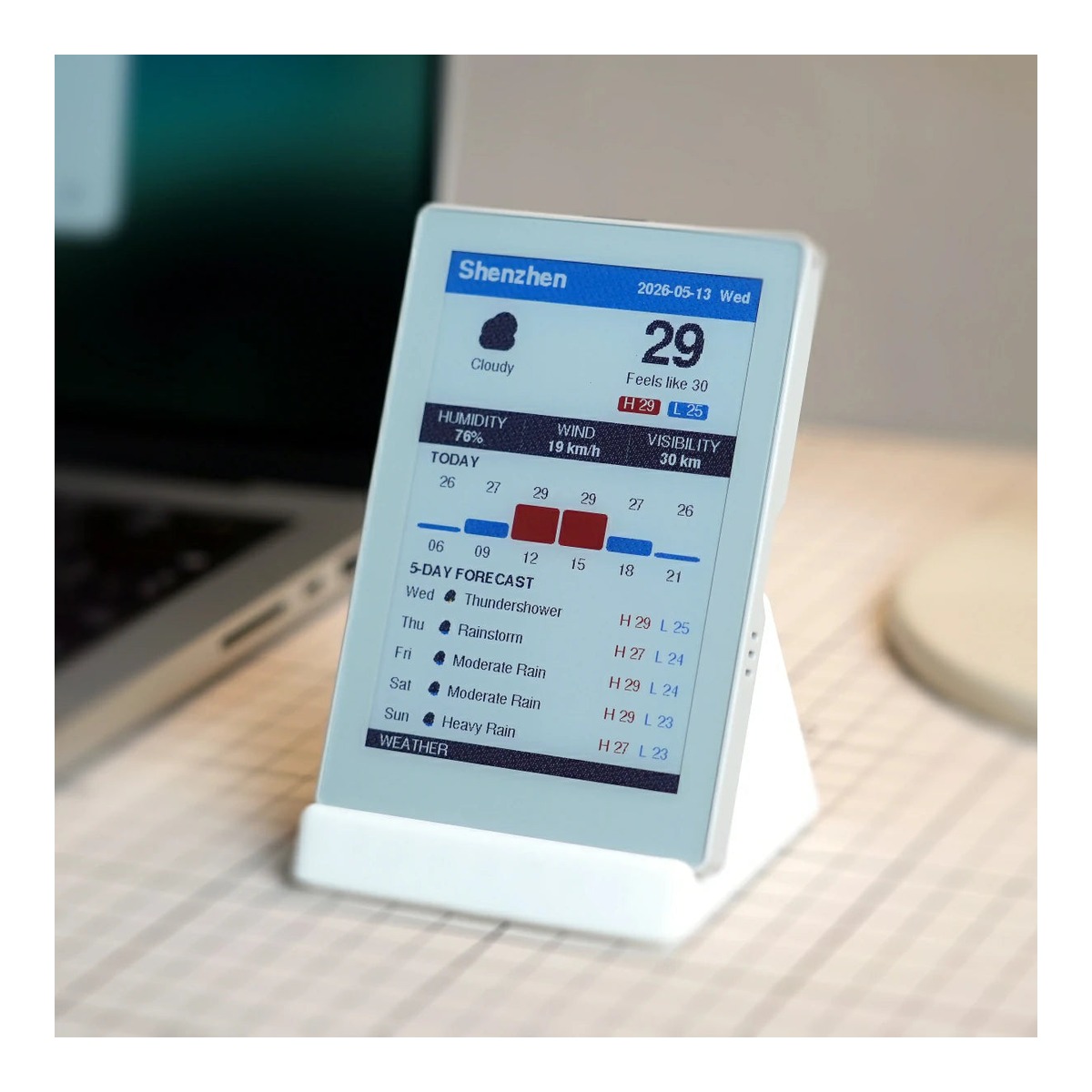

Ideal Applications

Smart digital photo frame
Electronic signage and price tags
Voice interaction terminals
Environmental monitoring instruments
IoT data dashboards and art display installations

Package includes: 1x M5Paper Color board

SoC	ESP32-S3R8, Dual-core Xtensa LX7, up to 240MHz
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Power	USB Type-C, DC 5V
Battery Capacity	1250mAh
Audio Codec	ES8311
Microphone	MEMS Microphone, ES7210 Audio ADC, AEC Echo Cancellation
Speaker	1W @ 8Ω, AW8737A Audio Amplifier
Temp / Humidity	SHT40
RTC	RX8130CE
Expandable Storage	microSD
User Buttons	3x User Buttons + 1x Power Button (ON/OFF/RESET/BOOT)
RGB LED	2x
Expansion Interface	HY2.0-4P
Infrared	Infrared Emitter
Power Consumption	Full Load: 211.97mA, Standby: 92.53μA
Product Size	70.8 x 103.9 x 8.5 mm
Product Weight	73.3g
Package Size	120.0 x 80.0 x 23.0 mm
Gross Weight	93.4g

Specifications

Display	4" E-Paper SPECTRA 6 Full-Color (ED2208-DOA), 600×400

SoC	ESP32-S3R8, Dual-core Xtensa LX7, up to 240MHz
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Display	4" E-Paper SPECTRA 6 Full-Color (ED2208-DOA), 600×400
Input Power	USB Type-C, DC 5V
Battery Capacity	1250mAh
Audio Codec	ES8311
Microphone	MEMS Microphone, ES7210 Audio ADC, AEC Echo Cancellation
Speaker	1W @ 8Ω, AW8737A Audio Amplifier
Temp / Humidity	SHT40
RTC	RX8130CE
Expandable Storage	microSD
User Buttons	3x User Buttons + 1x Power Button (ON/OFF/RESET/BOOT)
RGB LED	2x
Expansion Interface	HY2.0-4P
Infrared	Infrared Emitter
Power Consumption	Full Load: 211.97mA, Standby: 92.53μA
Product Size	70.8 x 103.9 x 8.5 mm
Product Weight	73.3g
Package Size	120.0 x 80.0 x 23.0 mm
Gross Weight	93.4g
