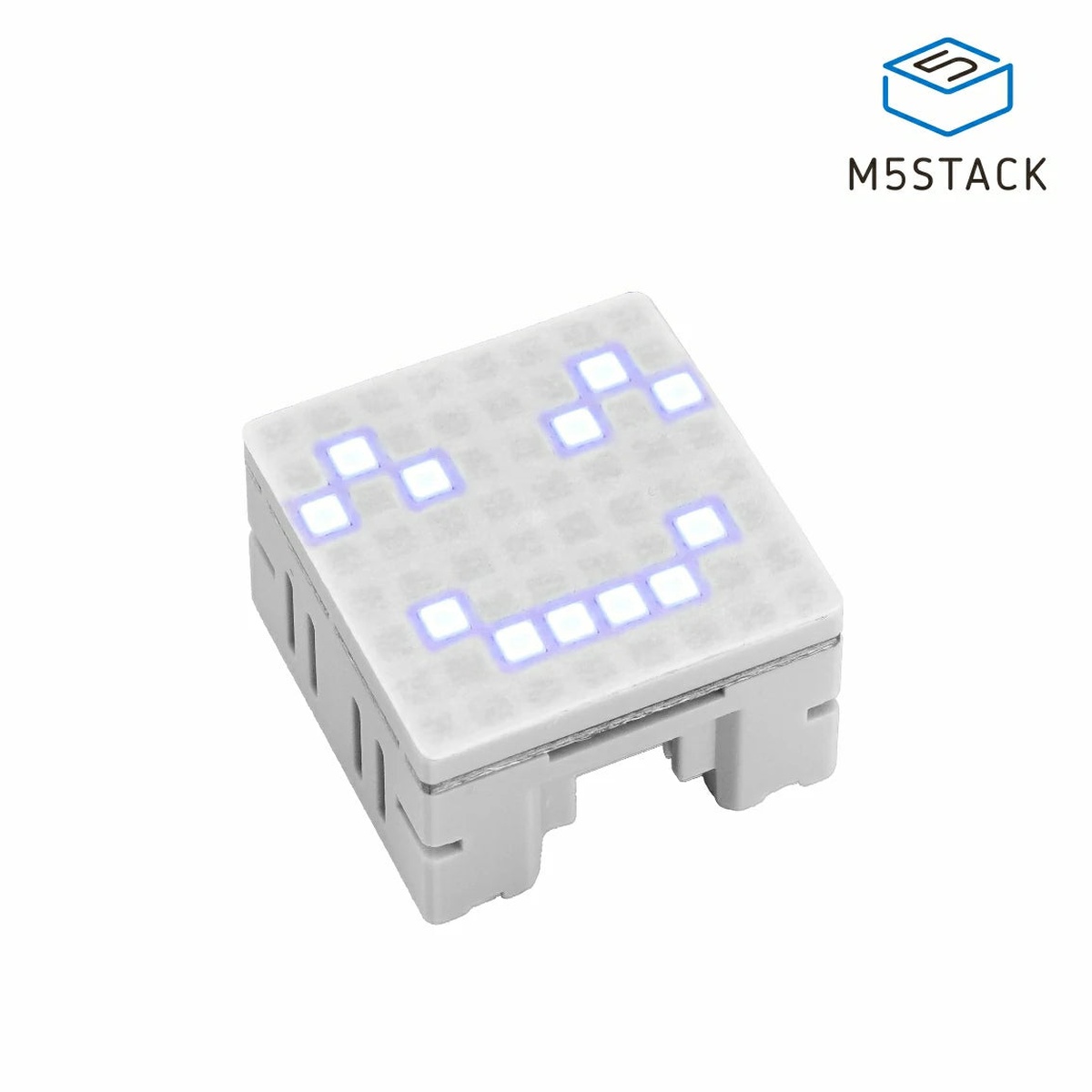

Chain Mono Matrix with 8×8 LEDs – White

SKU: MTU217 Category:
Brand: MTools Tec

$7.99

8×8 monochrome LED dot matrix display node from the M5Stack Chain series — STM32G031G8U6, UART daisy-chain, built-in ASCII generation, string scrolling, and brightness control.

10+ in stock

Secure Checkout
Fast Shipping
Easy Returns
24/7 Support

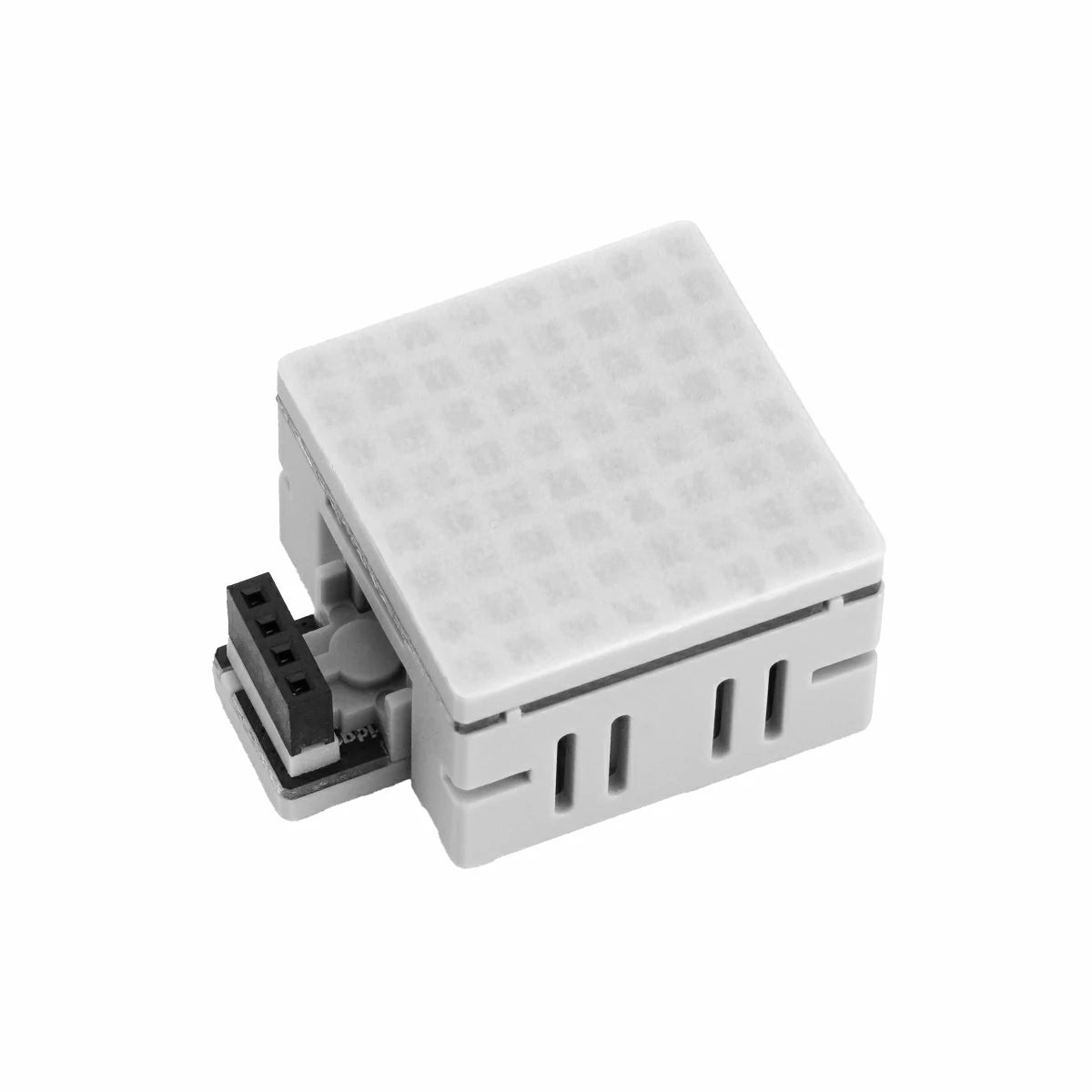

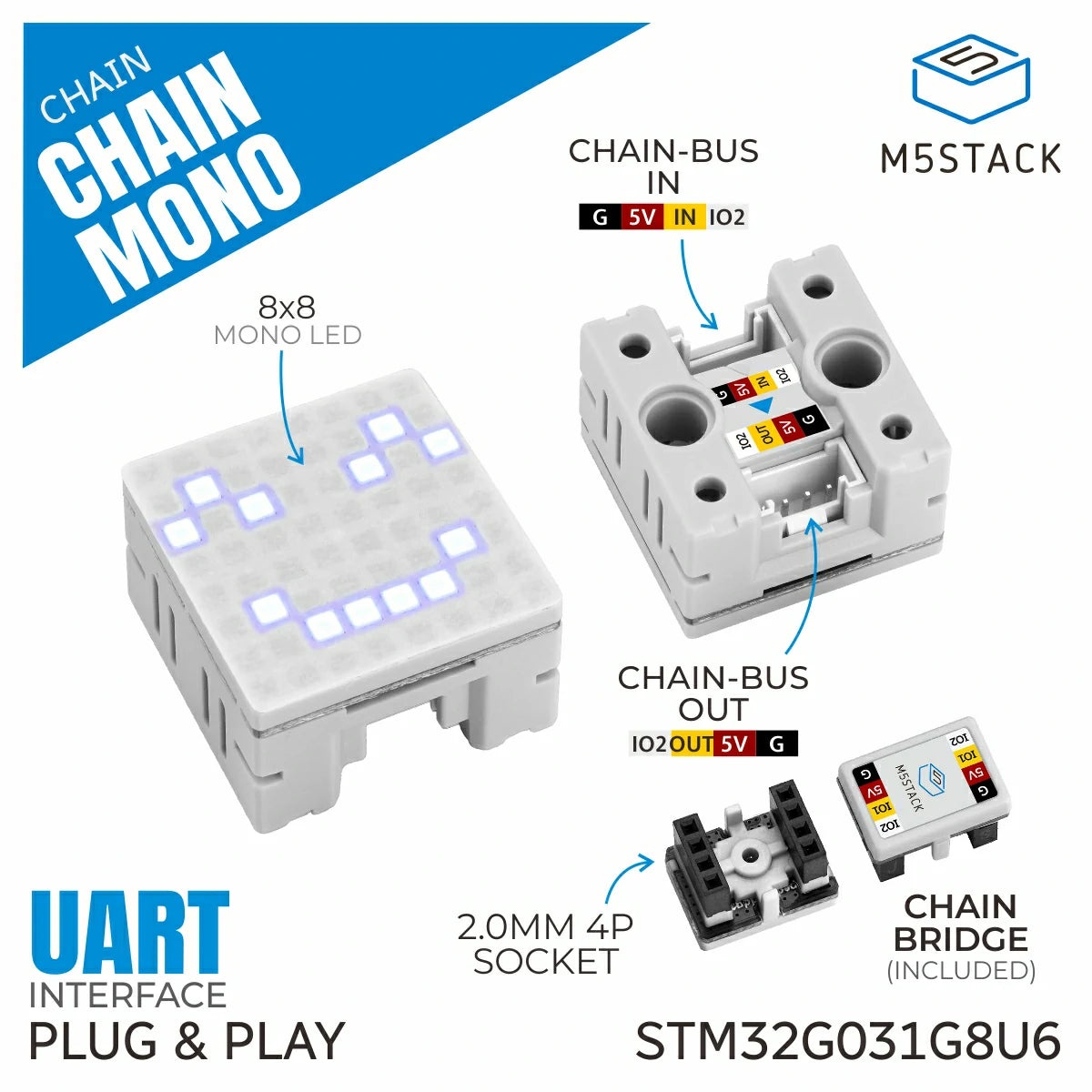

Chain Mono — 8×8 Monochrome LED Dot Matrix Node

Chain Mono is an LED display node from the M5Stack Chain series, featuring an 8×8 monochrome LED dot matrix unit. It supports independent pixel control, batch pixel writing, and fast full-screen buffer refresh. Built-in ASCII character generation, string scrolling, brightness adjustment, and multi-angle screen rotation enable diverse dynamic light and pixel animation effects.

Powered by an STM32G031G8U6 main controller, Chain Mono uses a UART serial daisy-chain communication protocol. Through two HY2.0-4P expansion interfaces, it can be extended with more Chain series devices to build richer interactive applications.

Features

  • STM32G031G8U6 main controller

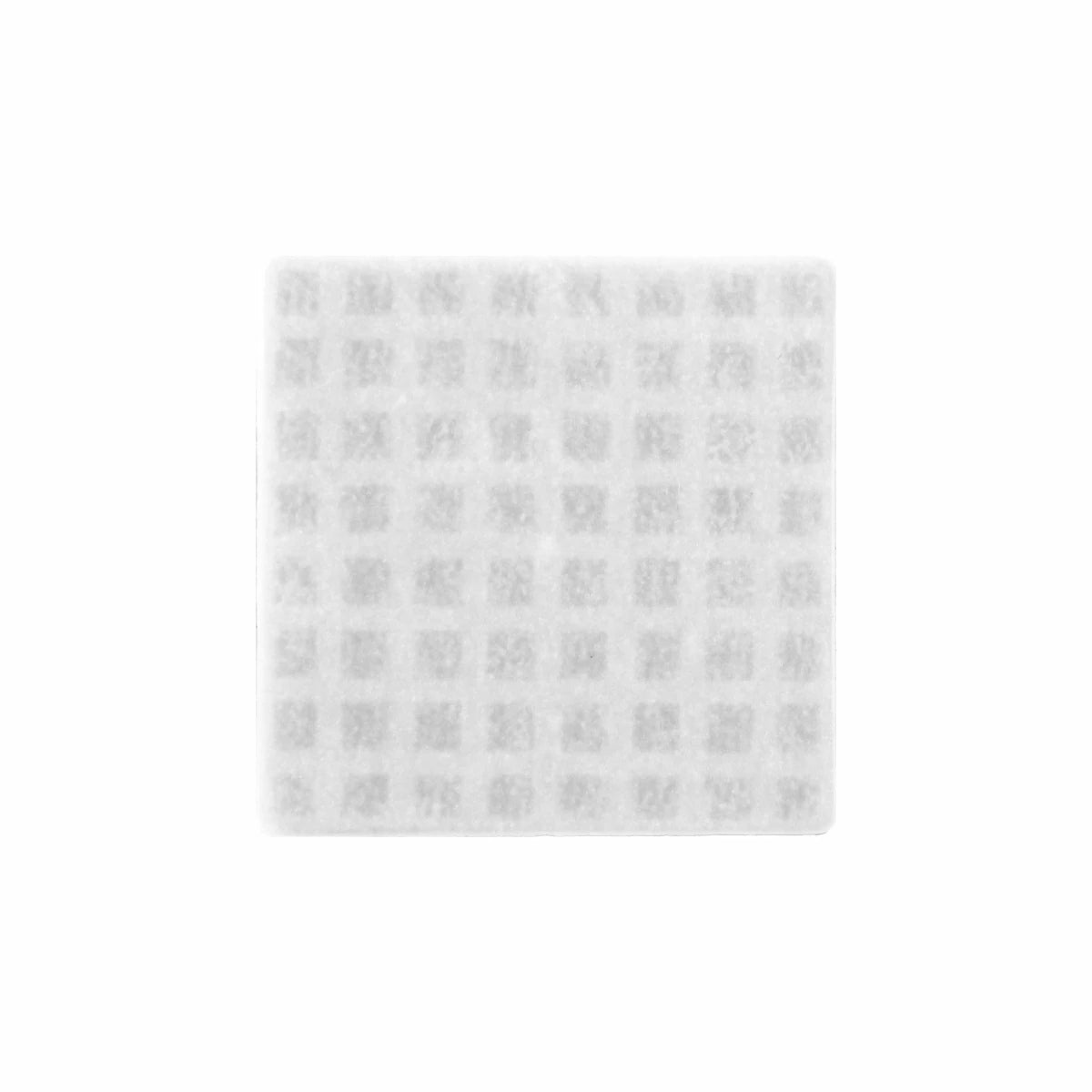

  • 8×8 monochrome LED dot matrix display
  • Built-in ASCII character generation and character drawing
  • Independent pixel control and batch writing support
  • 8-byte frame buffer with full-screen refresh
  • Custom patterns and string scrolling — up to 256 characters per node
  • 0°/90°/180°/270° screen rotation
  • UART serial daisy-chain communication (115200bps @ 8N1)

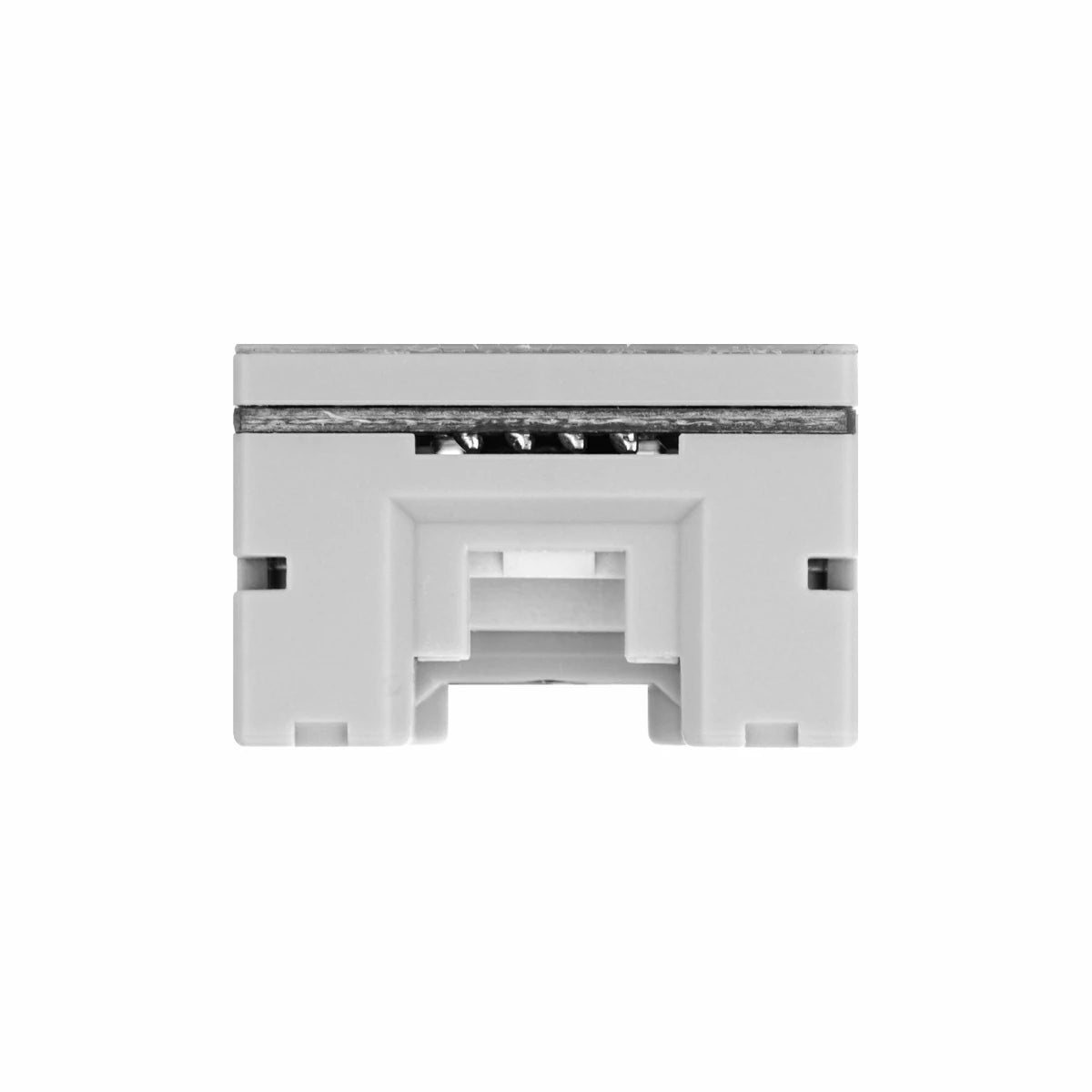

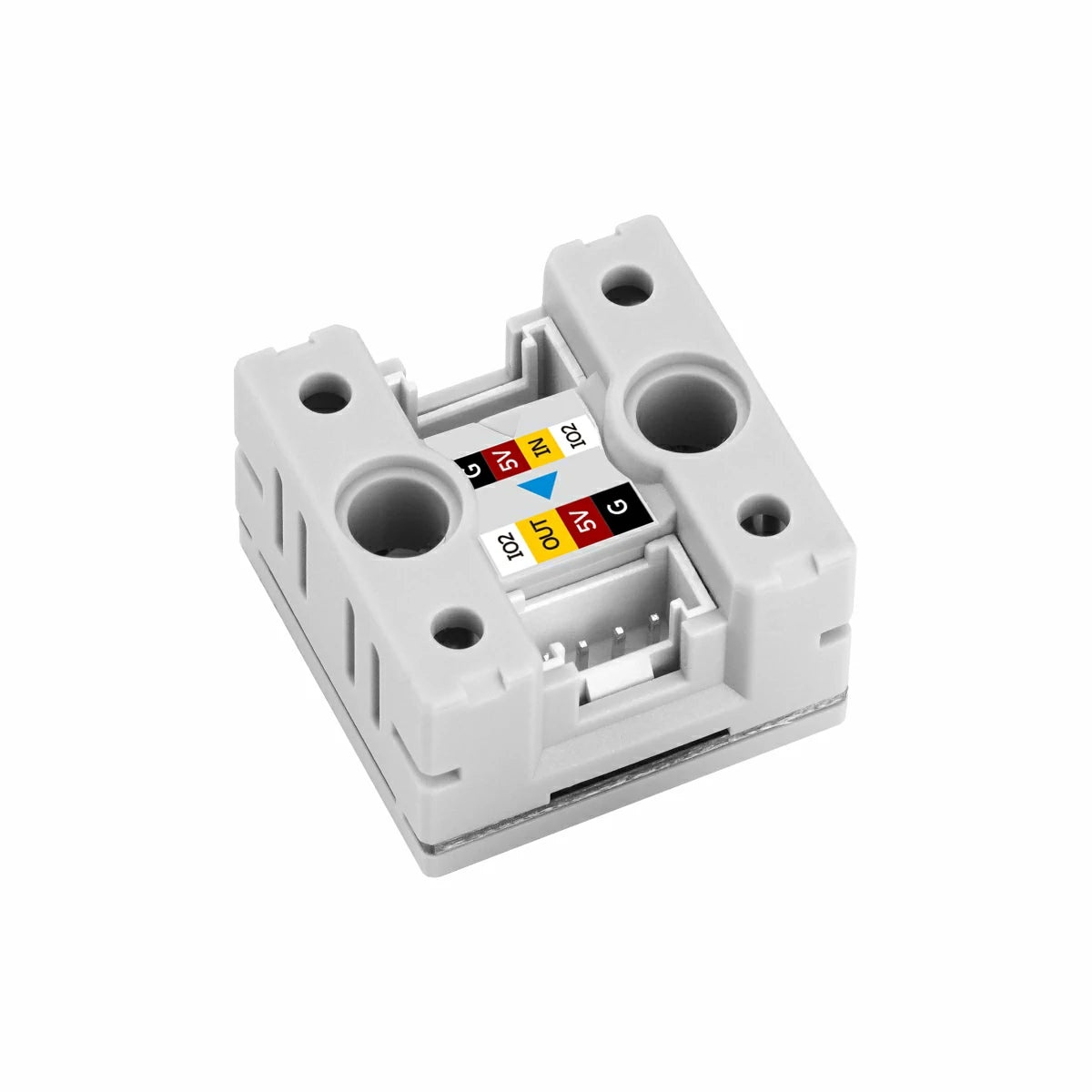

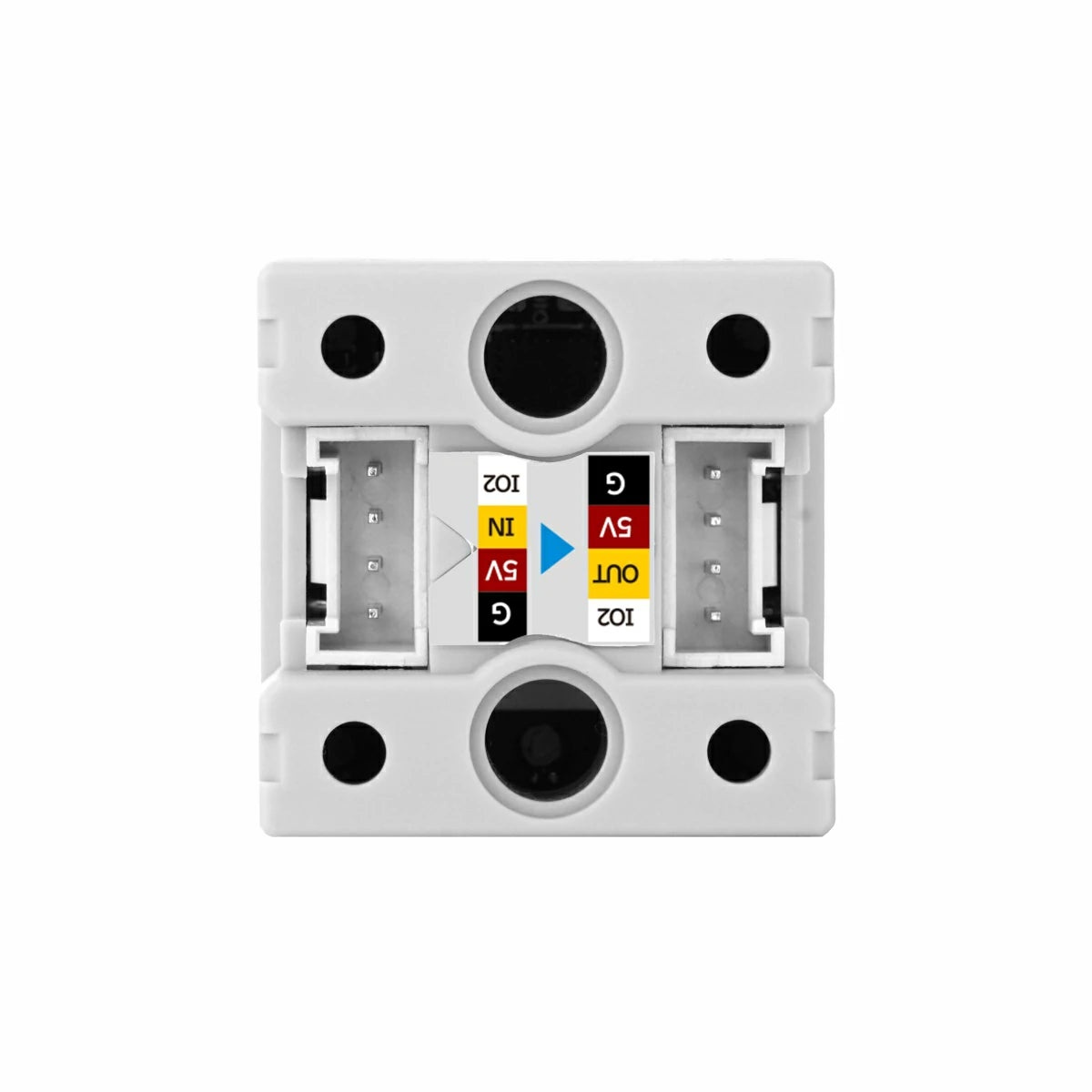

  • 2× HY2.0-4P expansion interfaces for daisy-chaining

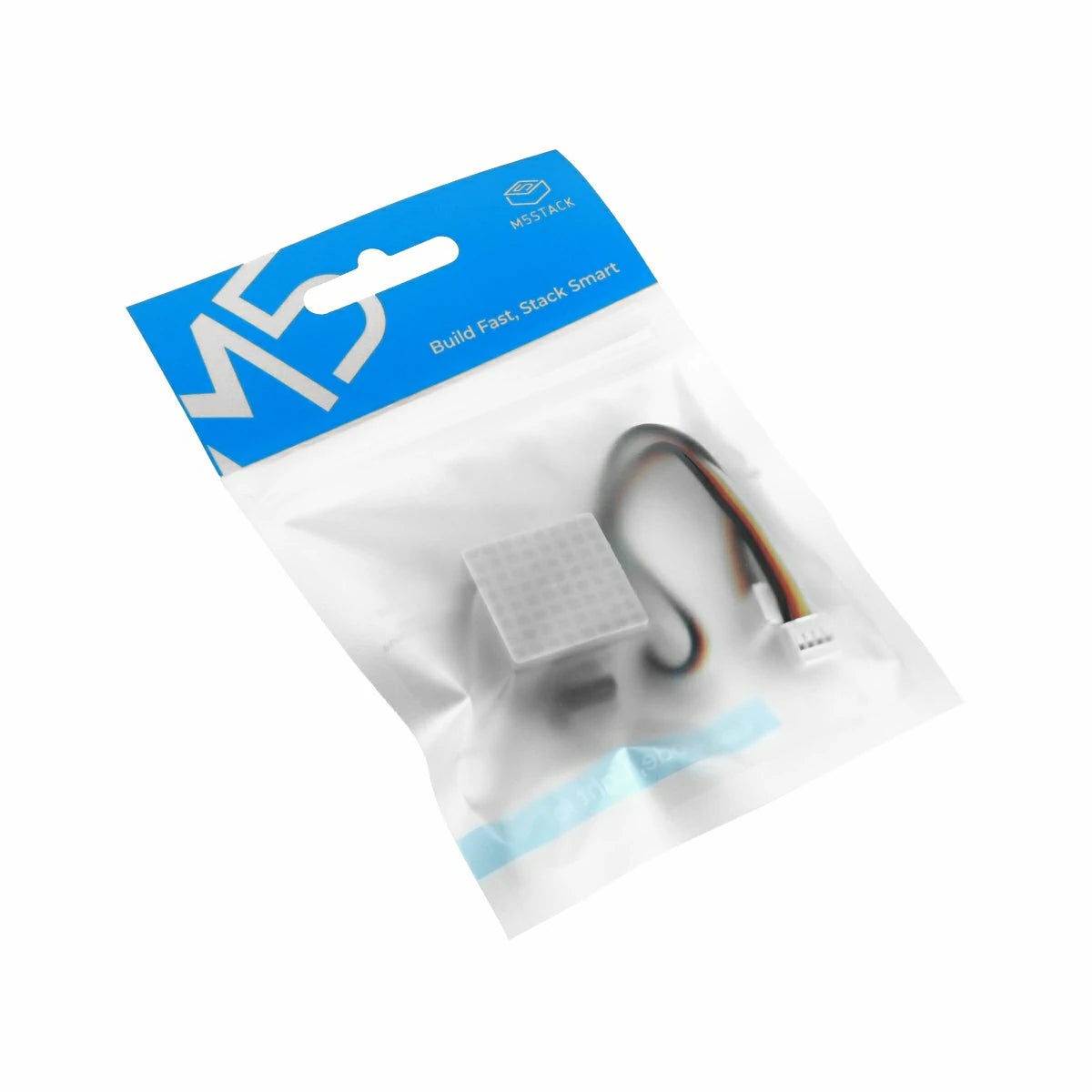

Includes

  • 1 × Chain Mono

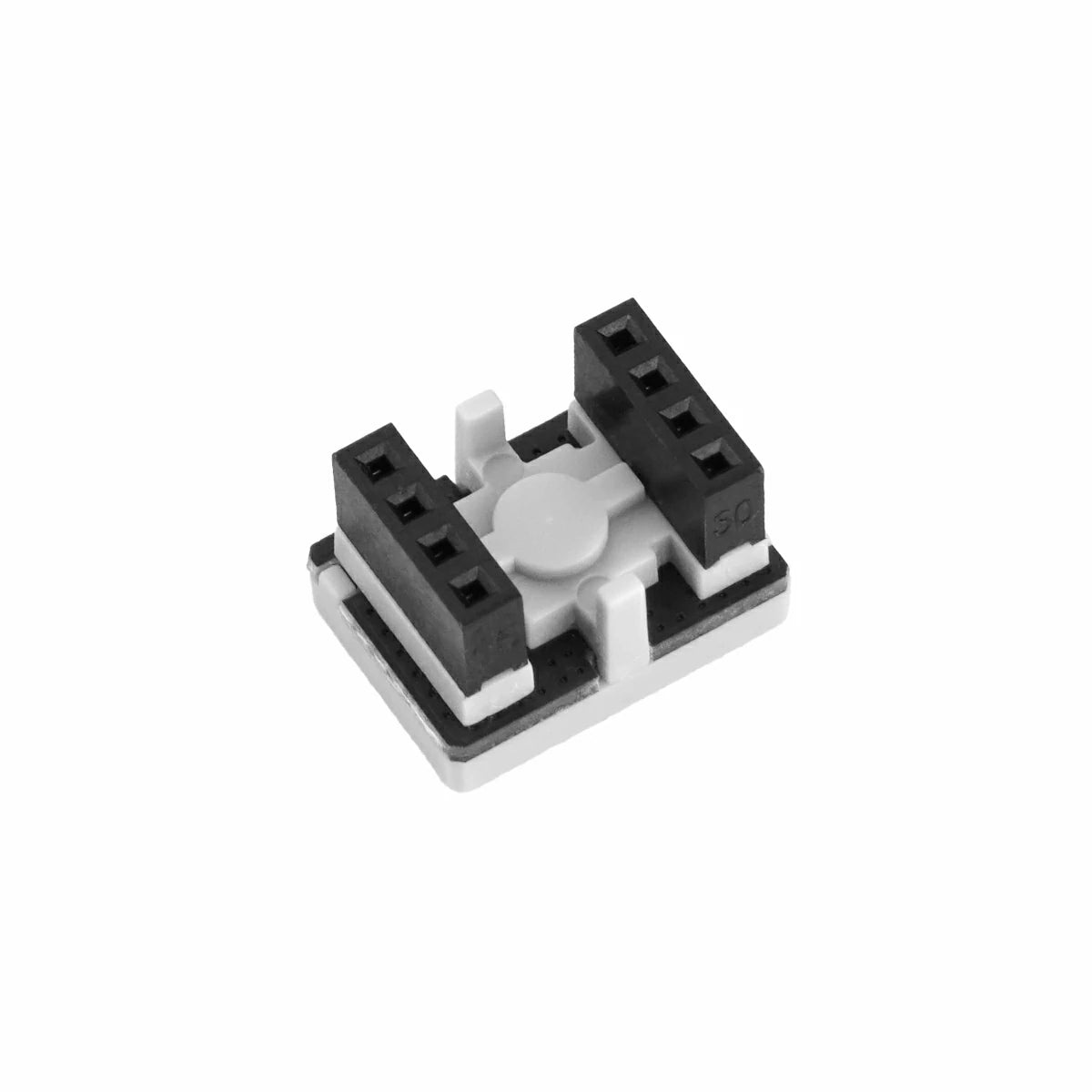

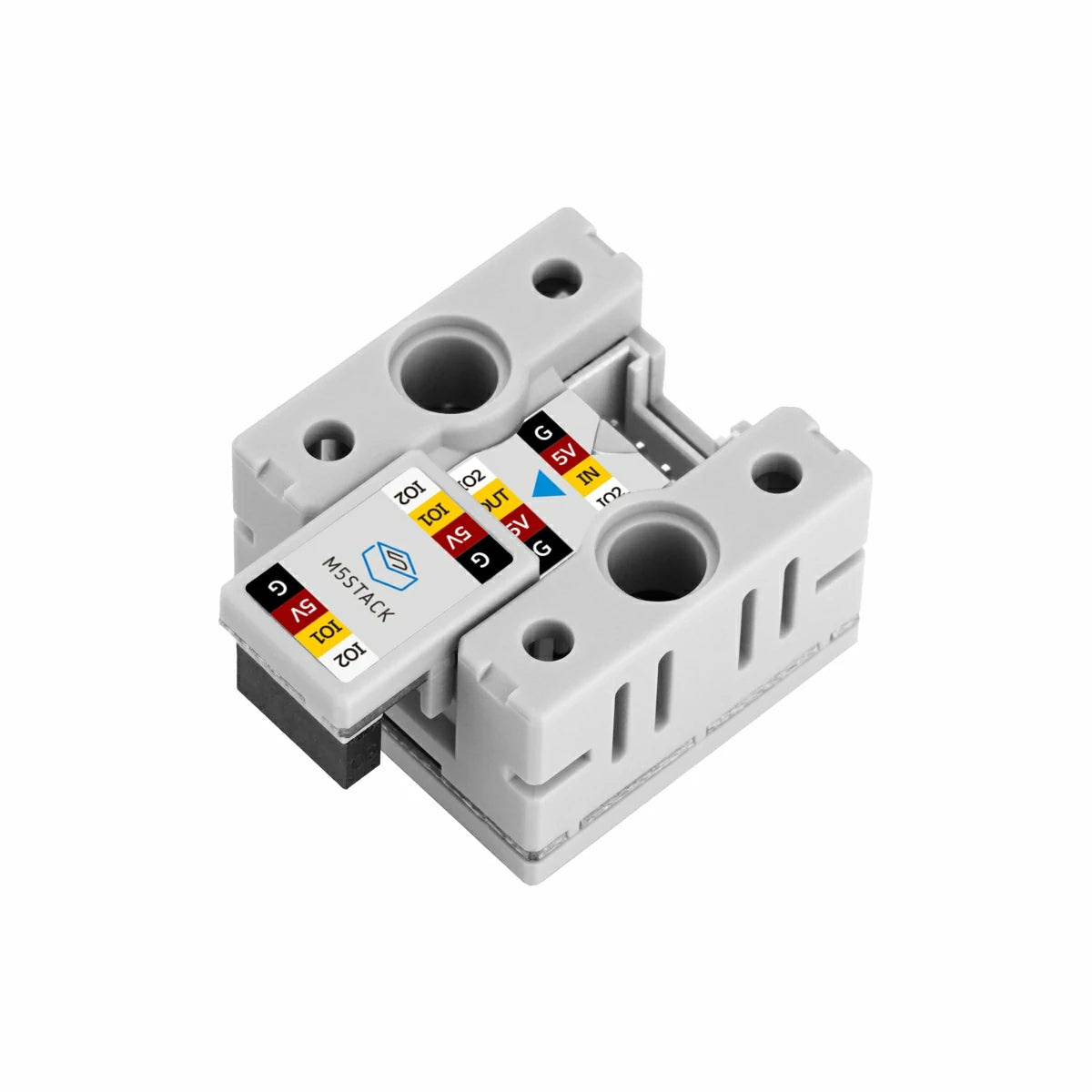

  • 1 × Chain Bridge

Applications

  • Pixel light creations
  • Desktop ambient lighting
  • Creative light signage
  • Smart device indicator lighting

Specifications

Specification Parameter
MCU STM32G031G8U6
Input Power DC 5V
Communication UART 115200bps @ 8N1
Interface 2 × HY2.0-4P
LED Color White
Standby Power DC 5V @ 8.13mA
Operating Power DC 5V @ 22.29mA (max brightness, all on)
Operating Temperature 0 ~ 40°C
Product Size 24.0 × 24.0 × 16.0 mm
Product Weight 6.2g
Package Size 138.0 × 93.0 × 11.0 mm
Gross Weight 13.2g
