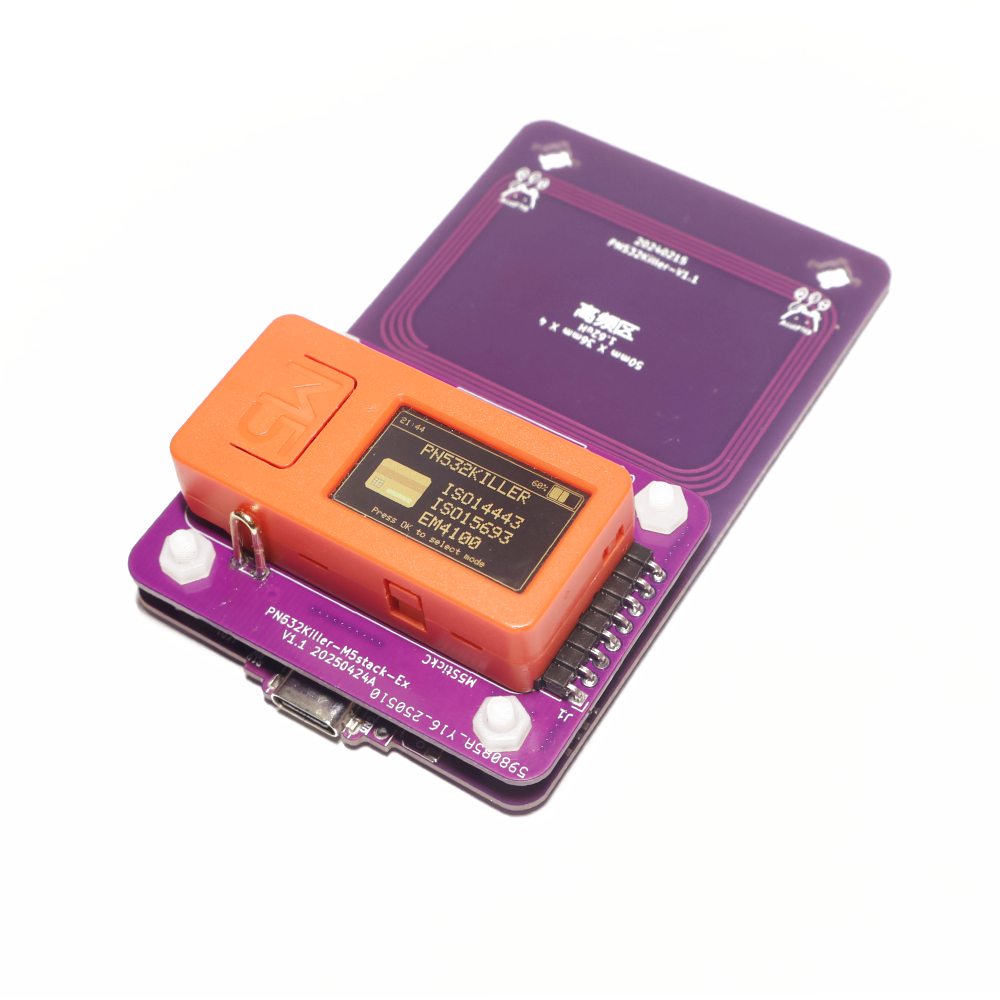

M5StickC Adapter for PN532Killer works with M5StickC Plus 1.1 and 2 version. Use reader, emulator and sniffer with Bruce firmware on M5StickC.
Also it can turn PN532Killer as a BLE reader, so you can control it with MTools BLE App for more powerful reader functions.

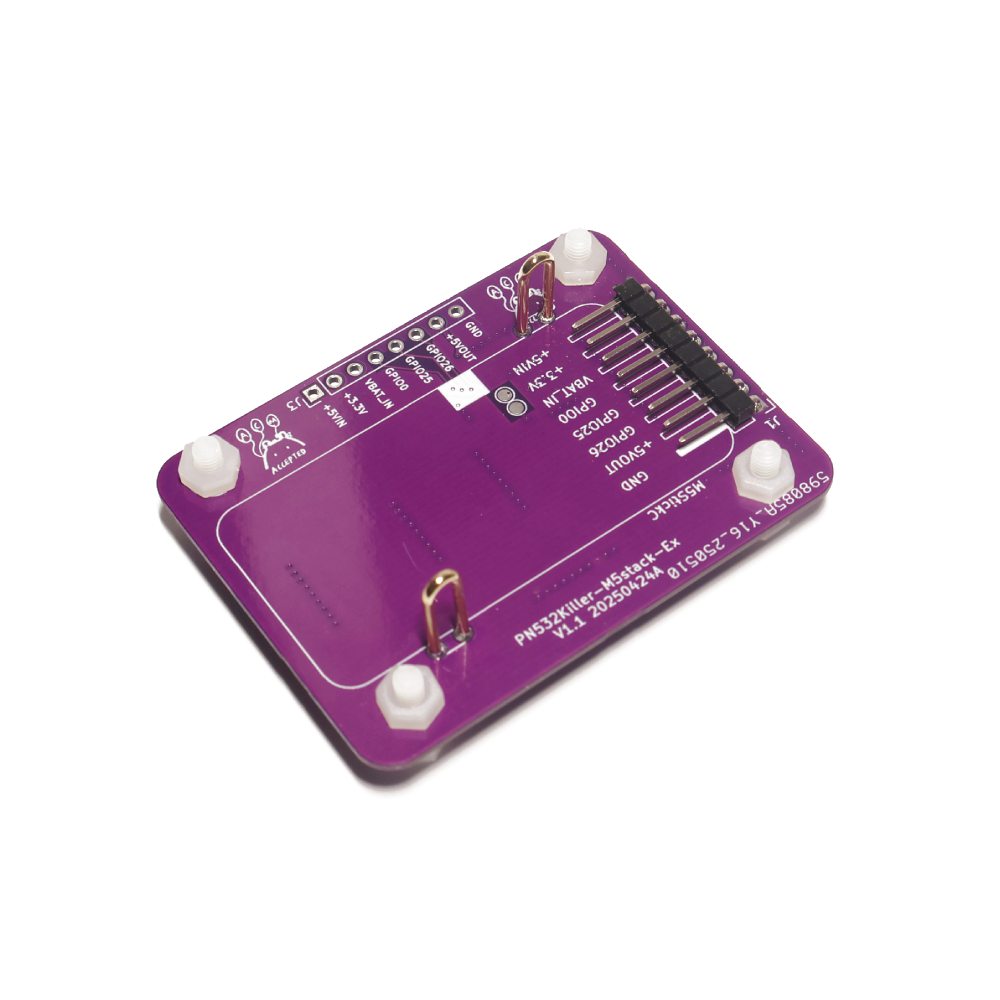

How to Assemble Adapter for PN532Killer

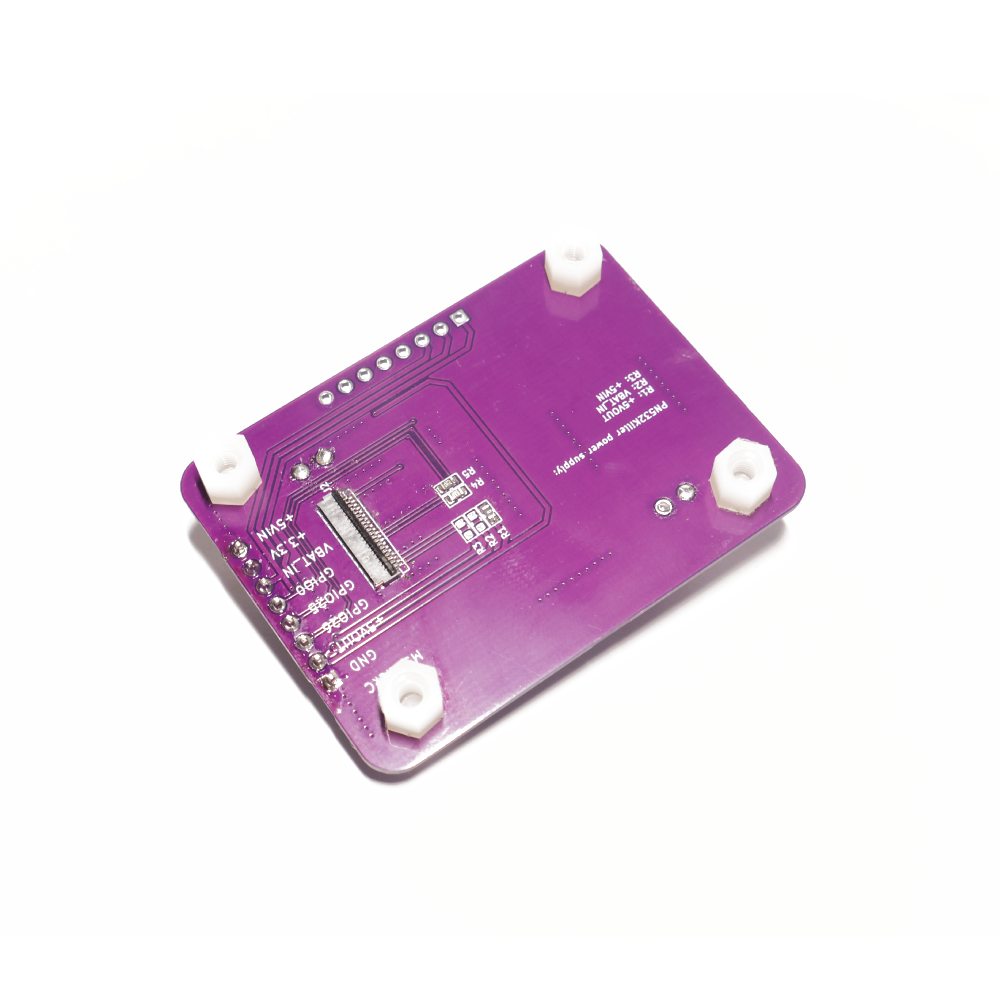

- Pry open the FPC connectors on Adapter and PN532Killer.

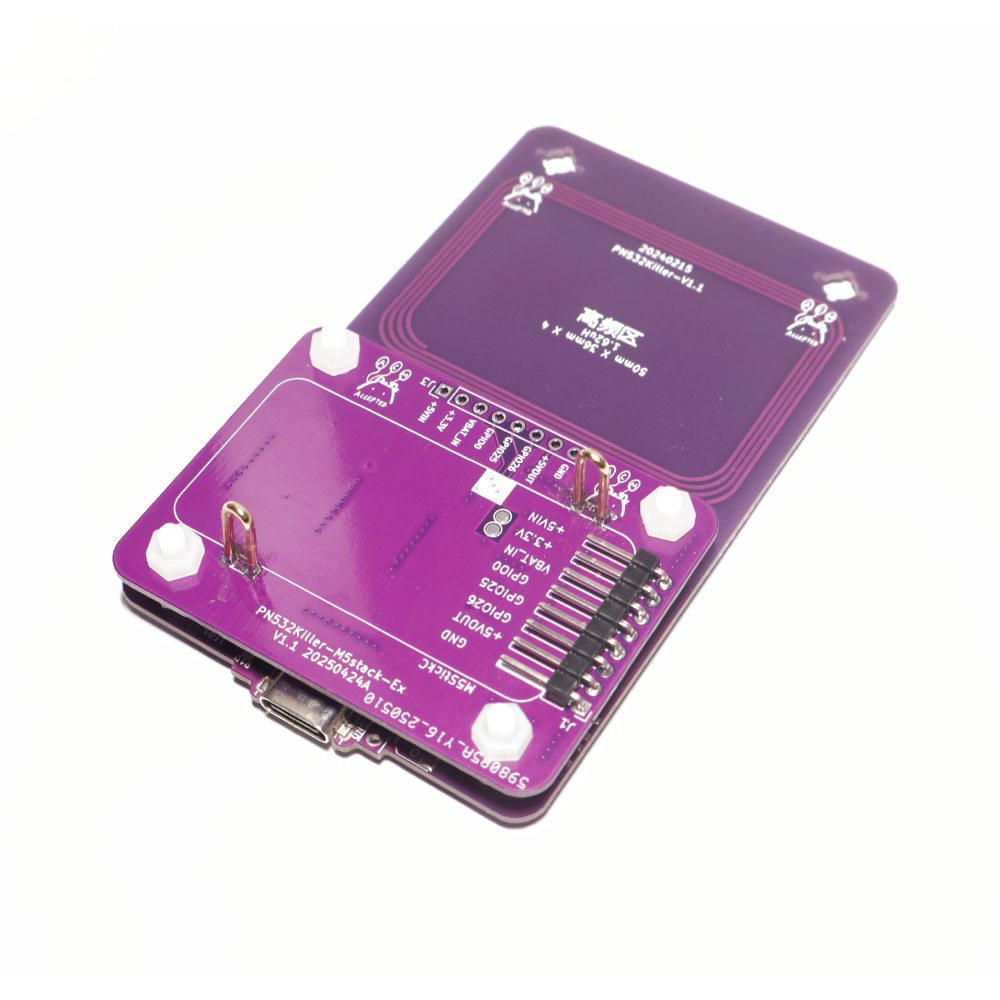

- Connect the Adapter and PN532Killer with FPC cable and lock the FPC connector.
- Install the bottom screws.
- Insert the M5StickC Plus on Adapter
Package Include
- M5StickC Adpater *1
- 20P 0.5mm FPC Cable 6cm *1
- M3*5 Screw *4

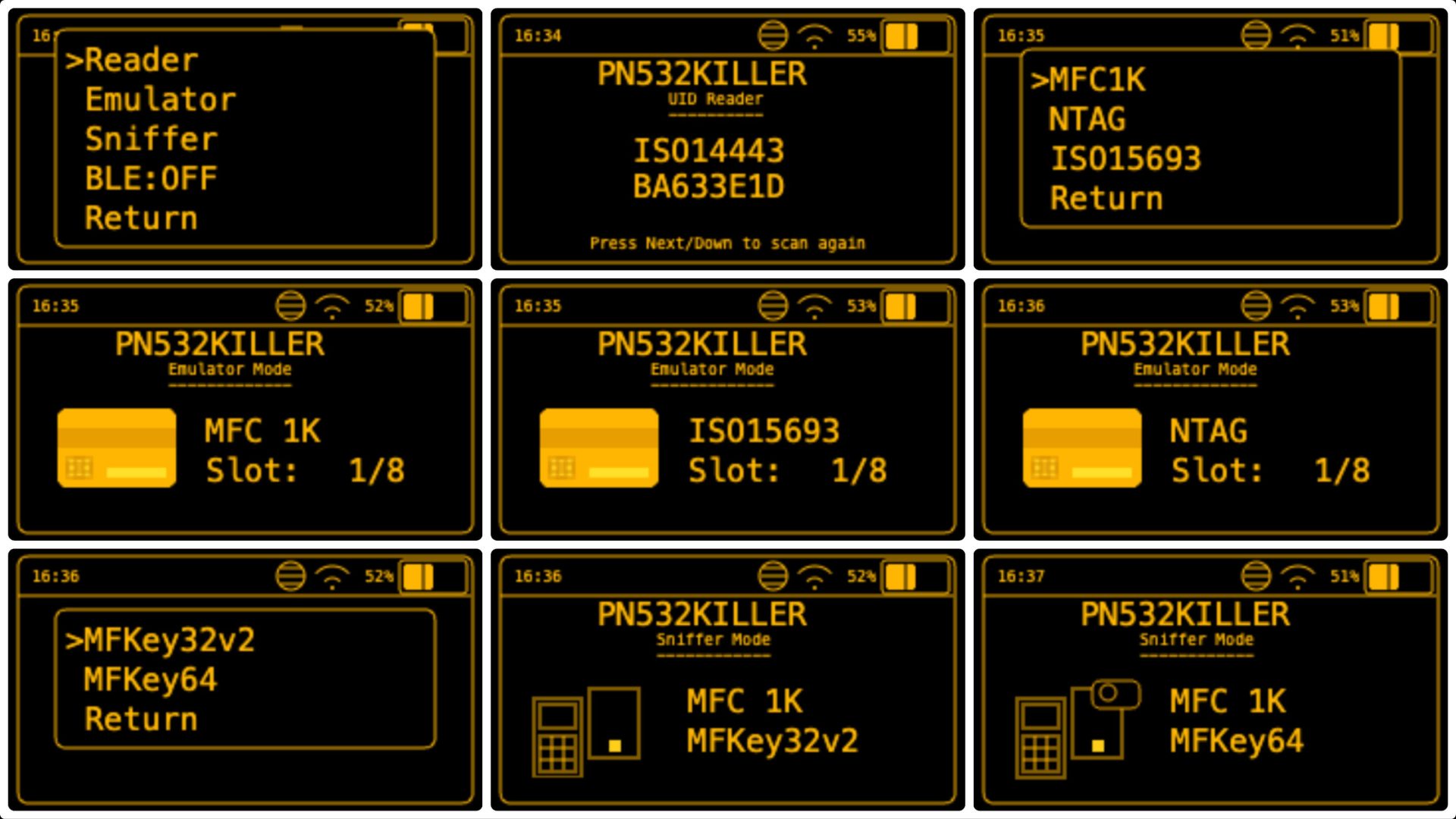

Reader Mode – Read UID
With the adapter, Burce firmware can read the UID of ISO14443A and ISO15693 Tag.
- Click bottom button for next reading
- Click top button to exit
Emulator Mode – Swtich Slot
There are 8 slots on both Mifare Classic 1K and ISO15693 Tag. Click top and bottom button can switch to next or previous slot.
BLE Extension
M5StickC Plus can be the BLE module for PN532Killer, so you can use them as the BLE Reader. With MTools BLE App, it can be a full function reader for tag reading, writing and magic tags operating.
