Filter

UHF Expansion Plus for Flipper Zero, front view on white background

UHF Expansion Plus for Flipper Zero

SKU: FZUHFPLUS Categories: UHF Reader, RFID Reader
Brand: MTools Tec

Original price was: $54.99.Current price is: $44.99.

UHF RFID reader expansion for Flipper Zero with a 96 × 96 mm board, custom 25 × 25 mm ceramic antenna, and a maximum working distance of up to 1 m. Supports Flipper Zero inventory, Windows USB-C reader/writer software, and Android MTools via OTG.

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

UHF RFID · FLIPPER ZERO

Go further with UHF Expansion Plus

A larger UHF reader expansion for portable inventory with Flipper Zero, built around a custom ceramic antenna.

96 × 96 mm board · 25 × 25 mm ceramic antenna · up to 1 m range

Scan EPC Gen2 / ISO 18000-6C tags on Flipper Zero. Connect by USB-C to a Windows PC or compatible Android device for supported reader/writer workflows.

DIRECT GPIO CONNECTION

Ready for Flipper Zero

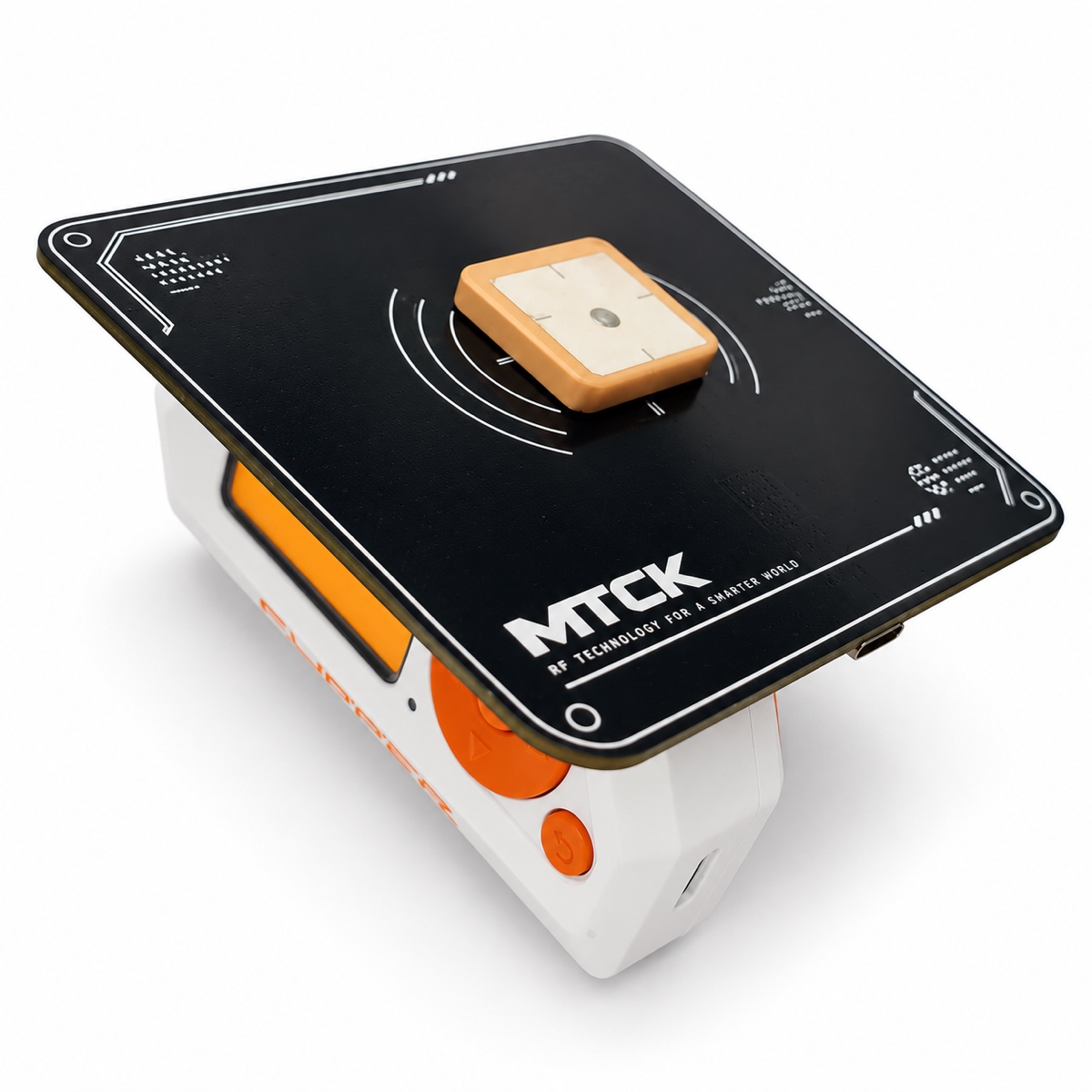

Plug the expansion into the Flipper Zero 8-pin GPIO header to use the portable UHF inventory application. The photo shows the Plus board installed on a Flipper Zero.

Before connecting: Turn off power and confirm the header alignment. Do not force the pins.

One reader, three ways to work

Use Flipper Zero for field inventory, Windows for deeper tag operations, or Android with MTools via USB OTG.

FLIPPER ZERO

Portable inventory

Scan nearby tags, browse a paged EPC list, inspect EPC, RSSI and PC data, then export records to CSV on the Flipper SD card.

WINDOWS PC

Reader / writer

Connect through USB-C for real-time inventory and supported EPC Gen2 memory read, write, lock and kill operations.

ANDROID

MTools OTG

Connect to a compatible Android device over USB OTG and use the MTools app for a phone-based workflow.

Mode distinction: The Flipper app is designed for inventory, tag details and CSV export. Use supported PC or Android software for reader/writer operations.

OPEN-SOURCE FLIPPER APPLICATION

See the tag data on your Flipper Zero

Follow live tag count, browse captured EPCs and inspect individual tag details without carrying a laptop.

Inventory scan

UHF Expansion paged EPC list on Flipper Zero

Paged tag list

UHF Expansion EPC RSSI and PC detail screen on Flipper Zero

Tag details

From scan to saved record

Fast inventory

Start or stop scanning from Flipper Zero and watch the detected tag count update.

EPC and diagnostics

Browse captured tags and inspect full EPC, RSSI signal value and PC (Protocol Control) bits.

CSV export

Save inventory records to the Flipper SD card for review or further processing.

PLUS HARDWARE

A larger board with a custom antenna

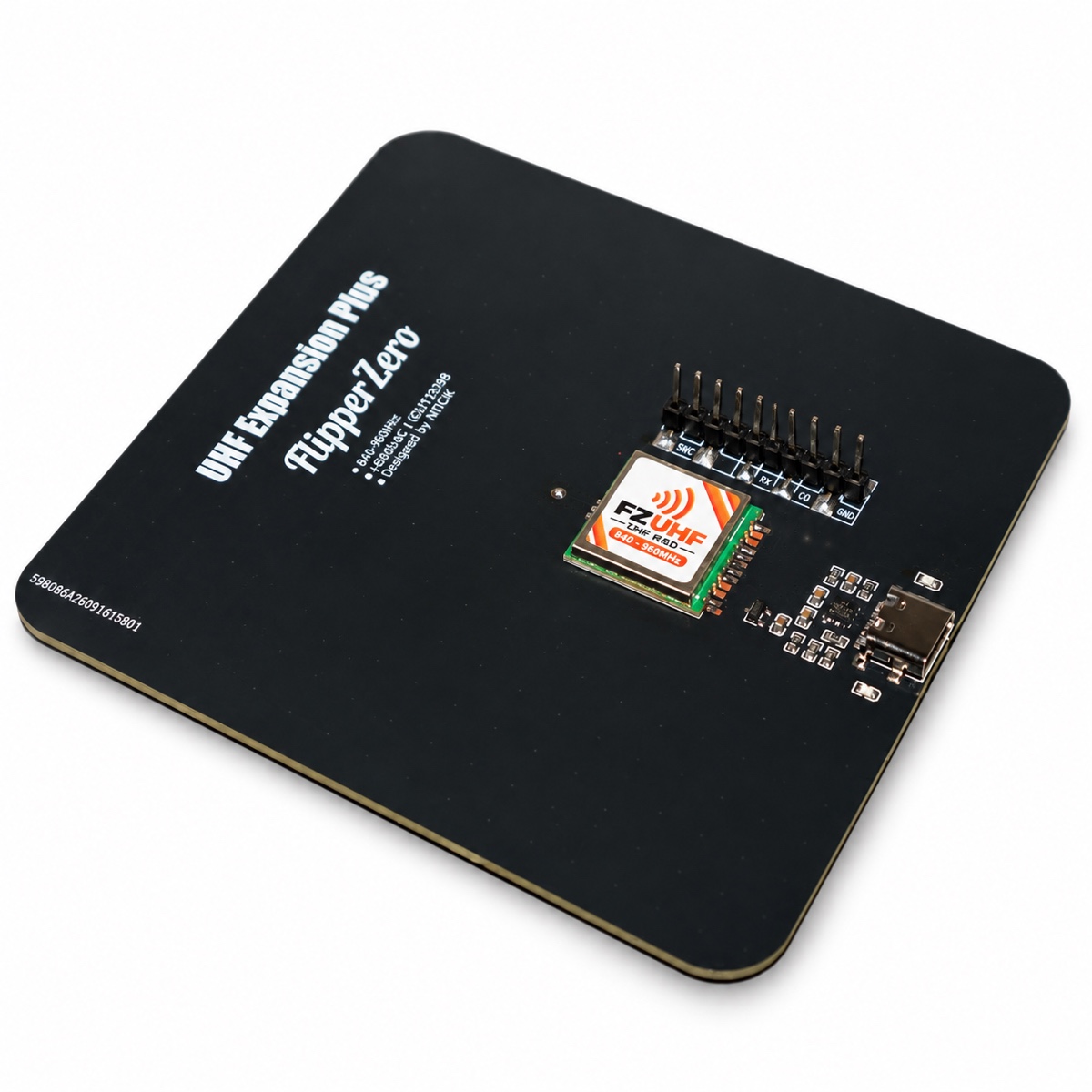

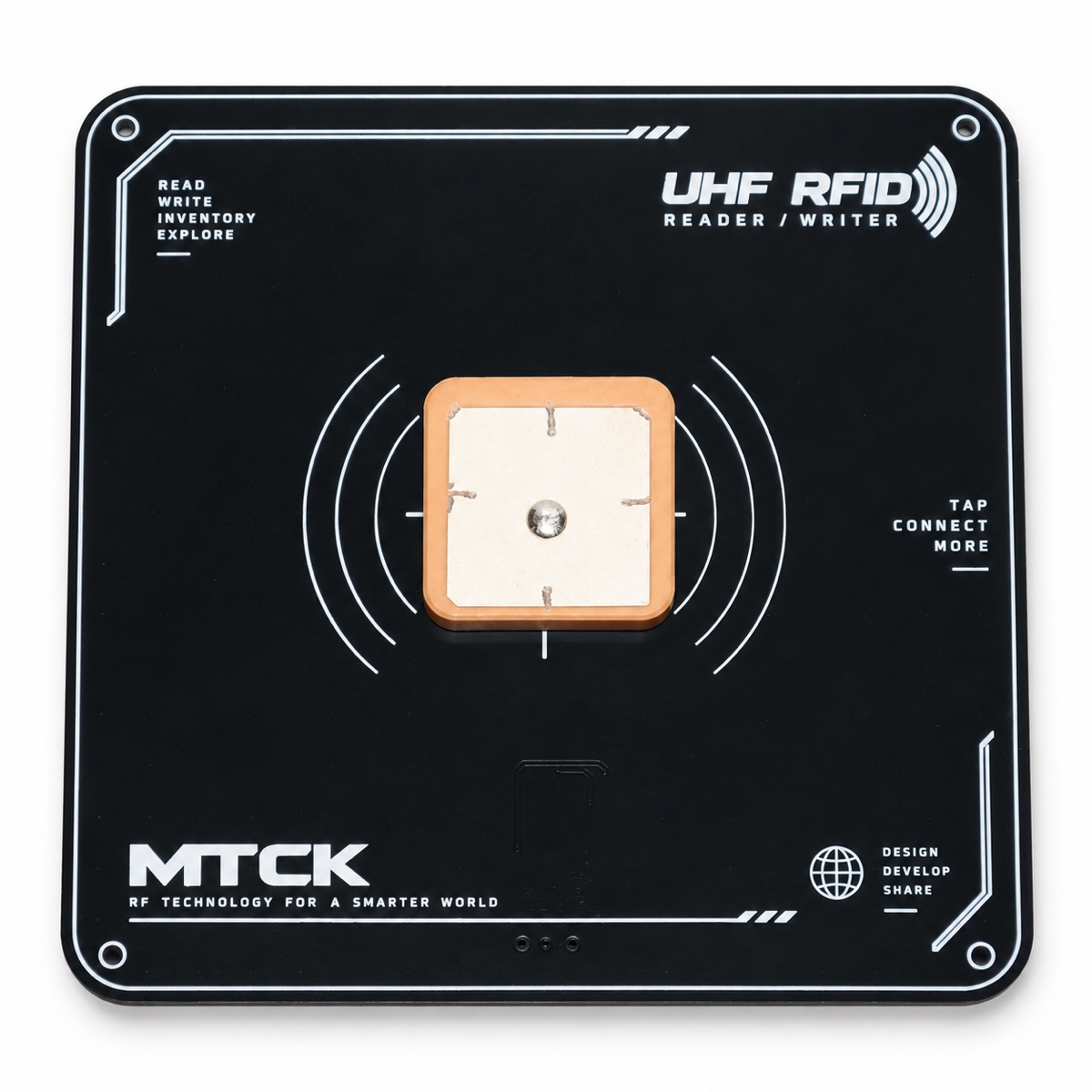

The 96 × 96 mm board places a custom 25 × 25 mm ceramic antenna at its center. The maximum working distance reaches up to 1 m under suitable conditions.

UHF EPC Gen2 / ISO 18000-6C tag support
Flipper Zero 8-pin GPIO connection
USB-C for supported PC and Android workflows

Reading distance varies with tag, orientation, surroundings and operating conditions. The 1 m figure is a maximum, not a guaranteed distance for every tag.

UHF Expansion Plus vs. original FZUHF

Choose the size that fits your setup

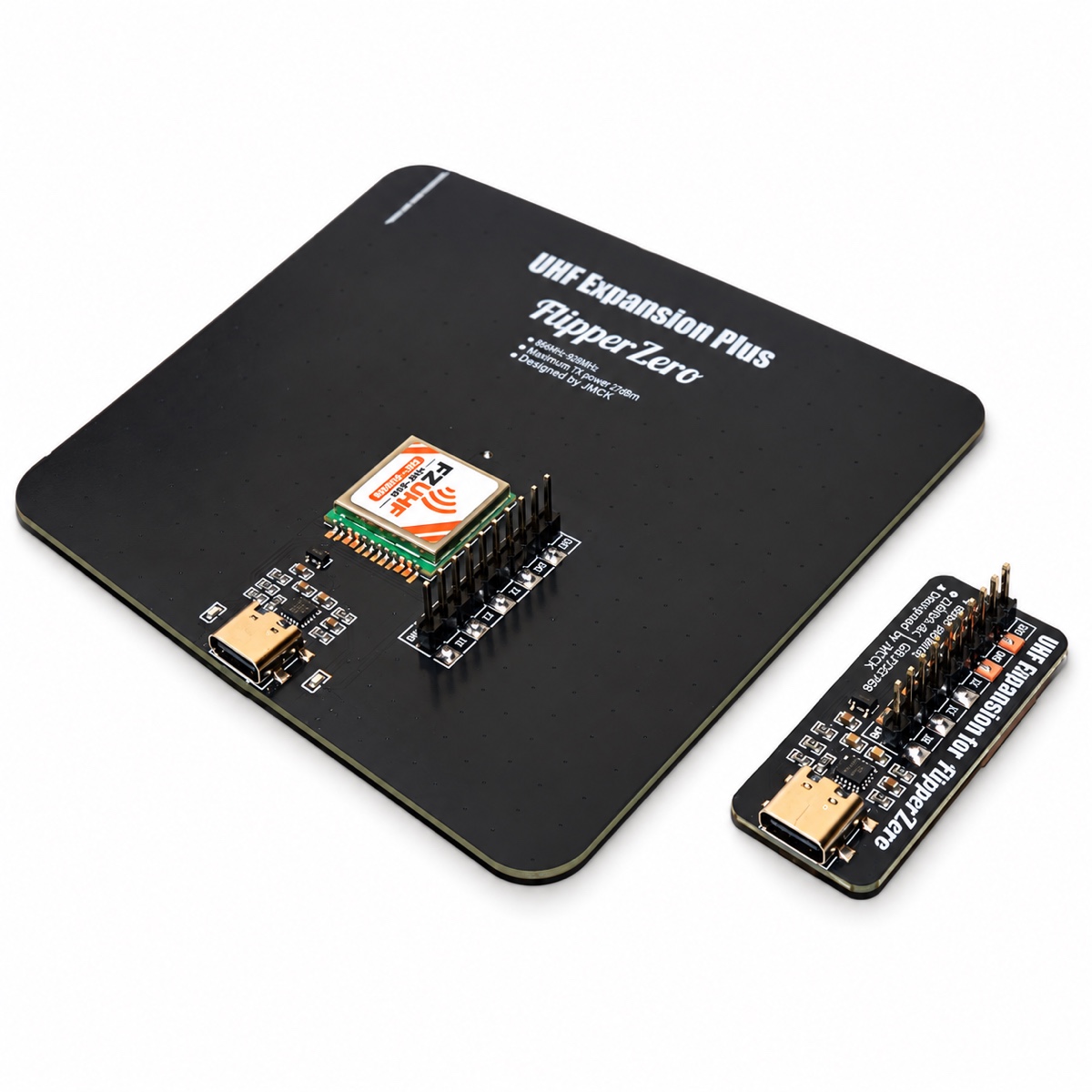

Plus uses a larger 96 × 96 mm form factor and a custom ceramic antenna. This side-by-side image shows its size relative to the compact original FZUHF.

Choose Plus for the larger board and its stated maximum range of up to 1 m. View the original FZUHF.

Specifications and setup

Technical details

SKU	FZUHFPLUS
Board size	96 × 96 mm
Antenna	Custom 25 × 25 mm ceramic
Maximum working distance	Up to 1 m, depending on tag and environment
Air interface	EPC Gen2 / ISO 18000-6C
Connections	Flipper Zero 8-pin GPIO and USB-C

Get started

With power off, connect the expansion to the Flipper Zero GPIO header and confirm pin alignment.
Install the open-source UHF application using its project instructions.
Open the app, start inventory and export records when needed.

For PC reader/writer mode, use the dedicated Windows program and manual.

Flipper app and documentation
Windows program and manual

Specifications

Board Dimensions	96 × 96 mm
Ceramic Antenna	Custom 25 × 25 mm
Maximum Working Distance	Up to 1 m
Air Interface Protocol	ISO 18000-6C / EPC Gen2
Expansion Interface	Flipper Zero 8-pin GPIO
Communication Interface	USB-C
Board Dimensions	96 × 96 mm	Ceramic Antenna	Custom 25 × 25 mm
Maximum Working Distance	Up to 1 m	Air Interface Protocol	ISO 18000-6C / EPC Gen2
Expansion Interface	Flipper Zero 8-pin GPIO	Communication Interface	USB-C

Board Dimensions	96 × 96 mm
Ceramic Antenna	Custom 25 × 25 mm
Maximum Working Distance	Up to 1 m
Air Interface Protocol	ISO 18000-6C / EPC Gen2
Expansion Interface	Flipper Zero 8-pin GPIO
Communication Interface	USB-C
