UCM601C UHF RFID Reader Module

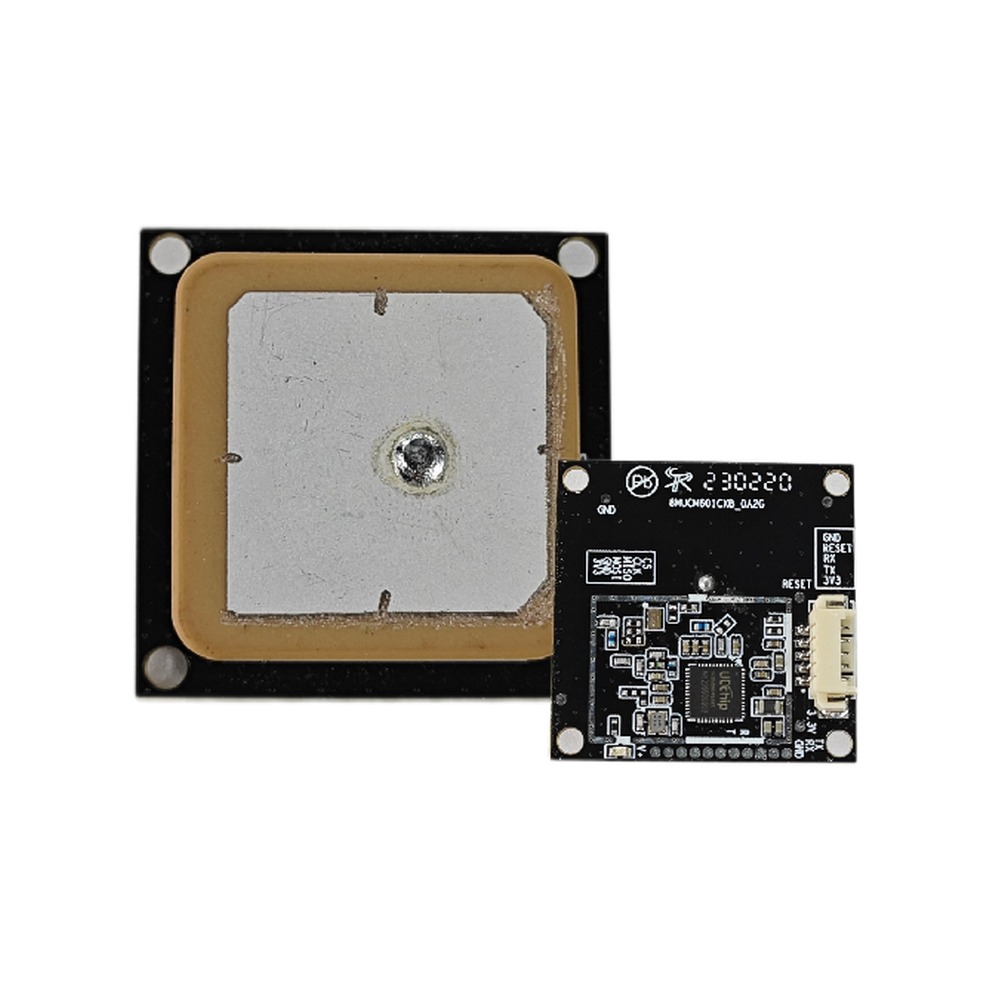

The UCM601C is a compact, highly integrated UHF RFID read/write module developed by UCchip, based on the UC8688 chipset with fully independent IP cores. Designed with an integrated ceramic antenna for desktop and portable applications, it can connect directly to mobile devices for on-the-go use.

Air Interface Protocols

• EPCglobal UHF Class 1 Gen 2
• ISO 18000-6C
• GB/T 29768-2013

Read/Write Features

• Self-interference cancellation circuit
• Anti-collision algorithm for multi-tag identification
• Output power: 3~20dBm
• Output power accuracy: ±1dB
• Output power flatness: ±0.2dB
• Receive sensitivity: -67dBm
• Peak inventory speed: 30 tags/sec
• Tag buffer: 100 tags @ 96-bit EPC
• Tag RSSI support
• On-chip temperature detection

Frequency & Antenna

• Operating frequency: 920~925MHz (GB standard)
• Integrated 3×3cm ceramic antenna

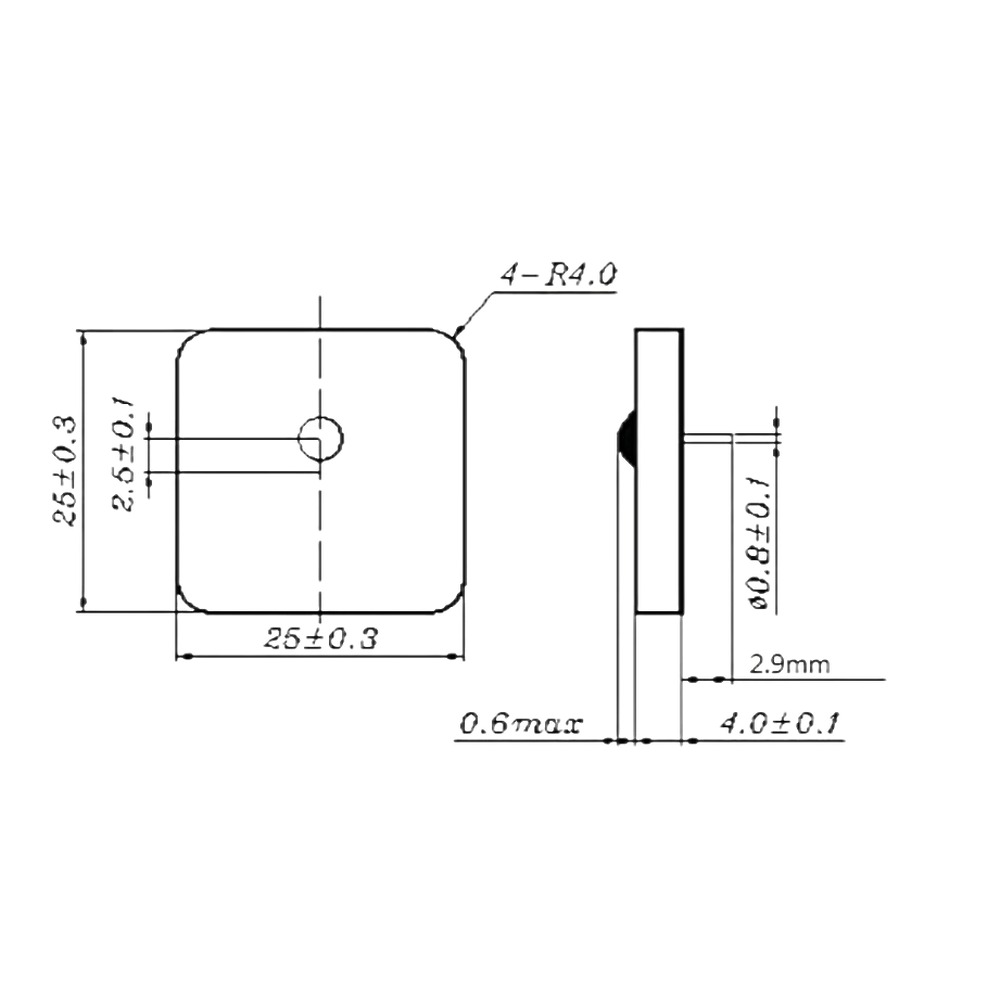

• Antenna size: 25mm × 25mm × 4mm

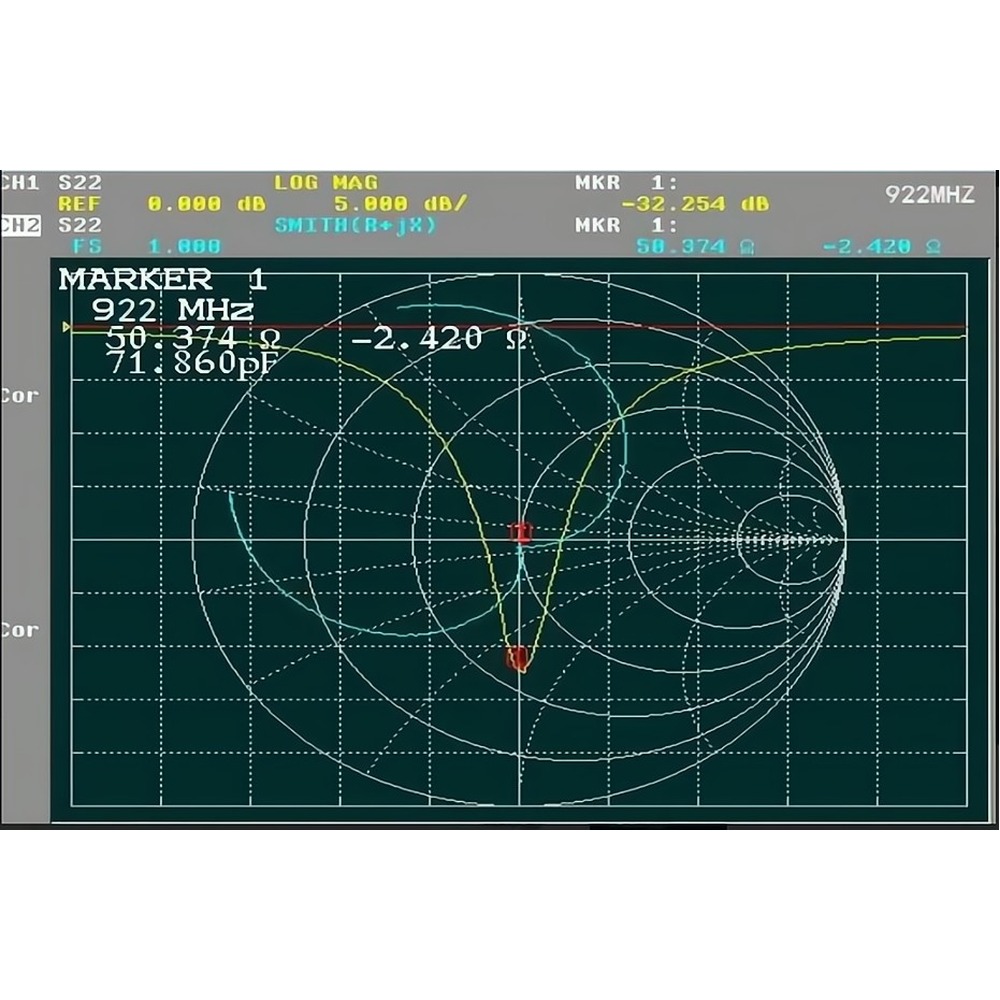

• VSWR: 1.5 MAX
• 10dB bandwidth: 15MHz MIN
• Gain: 1.5dB typ @ 30mm×30mm
• Impedance: 50Ω
• Polarization: RHCP (Right Hand Circular Polarization)

Interface

• Communication: TTL UART
• Default baud rate: 115200bps (configurable)

Power

• Operating voltage: 3.3V
• Standby current: <20mA
• Operating current: 20~110mA @ 3.3V

Physical

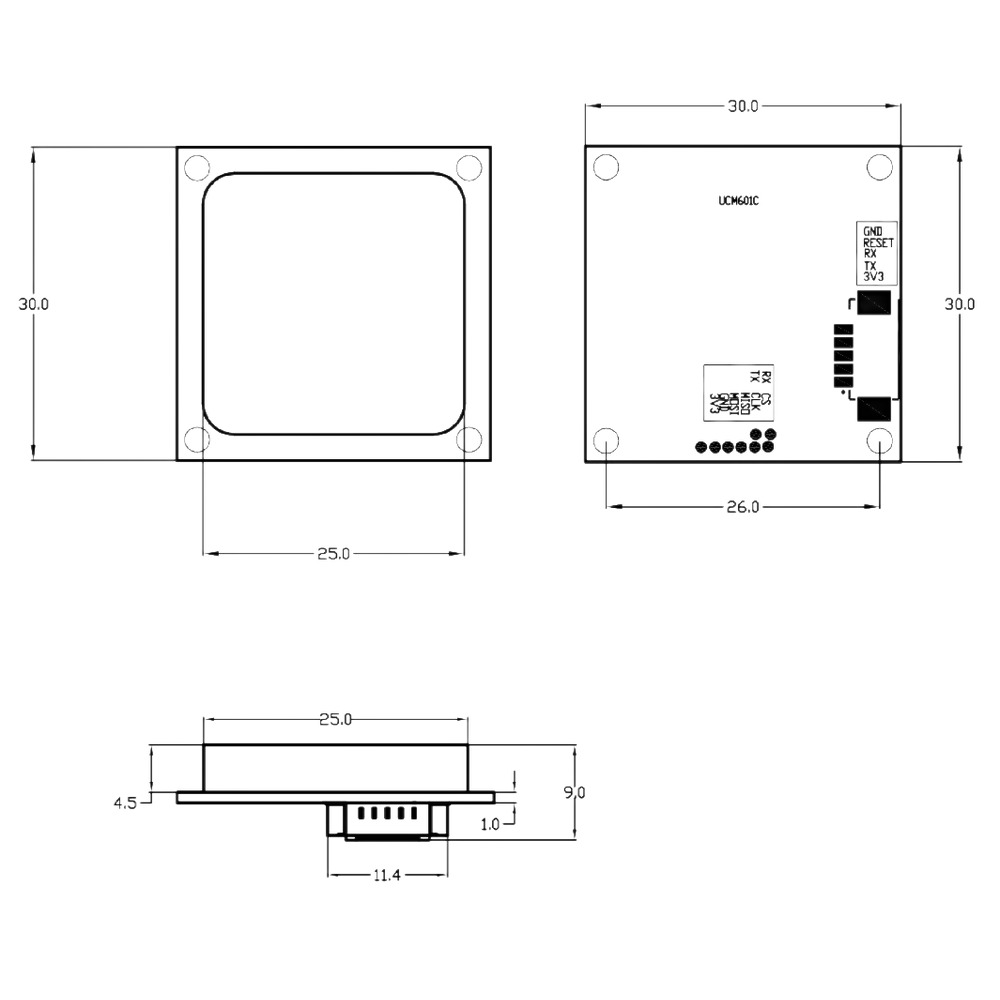

• Dimensions: 30mm × 30mm × 9mm (including connector)
• Weight: ~16g
• Ingress protection: IEC IP51

Environmental

• Operating temperature: -40°C ~ 70°C
• Storage temperature: -40°C ~ 85°C
• Relative humidity: 10%RH ~ 95%RH
