Seeed Wio Tracker L1 Pro - ADV Bootloader

Seeed Wio Tracker L1 Pro - ADV Bootloader - Image 2

Seeed Wio Tracker L1 Pro - ADV Bootloader - Image 3

Seeed Wio Tracker L1 Pro - ADV Bootloader - Image 4

Seeed Wio Tracker L1 Pro - ADV Bootloader - Image 5

Seeed Wio Tracker L1 Pro - ADV Bootloader - Image 6

Seeed Wio Tracker L1 Pro - ADV Bootloader - Image 7

Seeed Wio Tracker L1 Pro – ADV Bootloader

SKU: SSWTLP Categories: Lora, Lora Node
Brand: MTools Tec

$43.99

Low-power, scalable LoRa tracking device with GPS and OLED display, featuring efficient nRF52840 processing and durable 3D-printed enclosure, ready for field use.

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

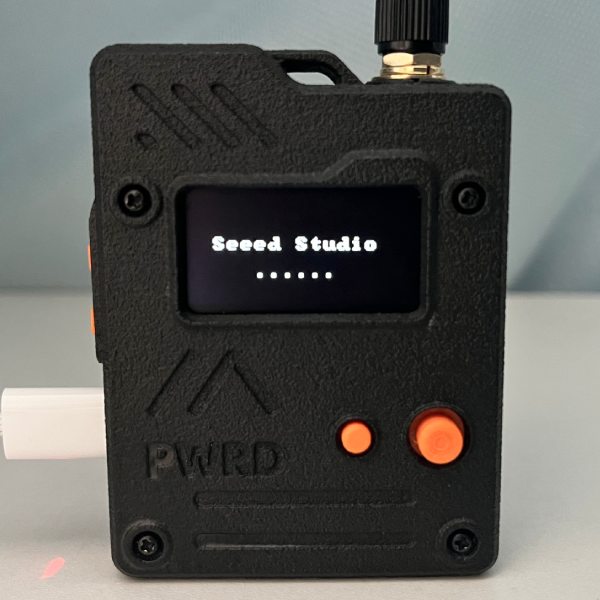

Ready-to-Use 3D-Printed Enclosure

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

High Expandability

Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

Specification

Processor	Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262, supports 862-930MHz
Wireless	Bluetooth 5.0
GPS	L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display	Size: 1.3 inch
	Resolution: 128*64 pixels
	Active Area(mm): L34.5W23.0H1.47
Power	Type-C: 5v—1A
	Solar energy interface: 5v—1A
	Battery interface: 3.7v—1A
Certification	FCC, CE, RoHS

Hardware Overview

Diagram

Application

Documents

Wio Tracker L1 Pro 3D – Shell Reference Document

ECCN/HTS

HSCODE	8526919090
USHSCODE	8526910040
UPC
EUHSCODE	8517180000
COO	CHINA

Part List

Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery	x1
LoRa Antenna	x1

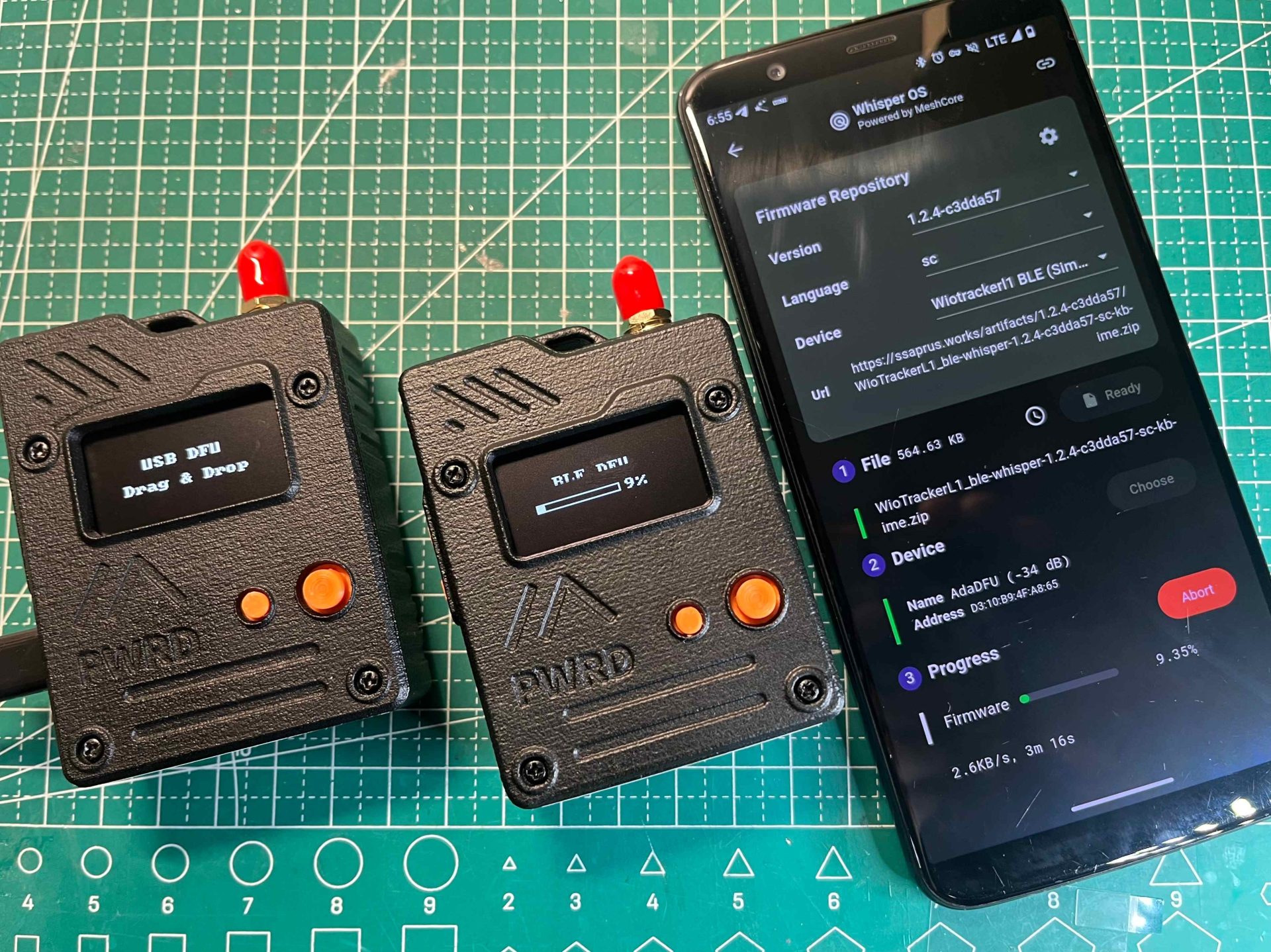

How to upgrade firmware

Via USB Mode – Drag & Drop
Via Bluetooth – Advanced bootloader with visible DFU process

Weight	0.080 kg
Weight	0.080 kg

Specifications

Working Frequency	862-930MHz
Battery	2000mAh
Working Frequency	862-930MHz	Battery	2000mAh

Weight	0.080 kg
Working Frequency	862-930MHz
Battery	2000mAh
