M5Pager V1.1

SKU: K049-B Category: IoT Devices
Brand: MTools Tec

Original price was: $129.99.Current price is: $119.99.

ESP32-D0WDQ6-V3 dual-core @ 240MHz
4.7″ E-Ink display (540×960, 235 PPI, 16 grayscale)
Capacitive touch (GT911), two-point touch
Built-in 1150mAh battery, RTC (BM8563)
WiFi, USB Type-C, microSD slot, HY2.0 × 3

10+ in stock

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

Description

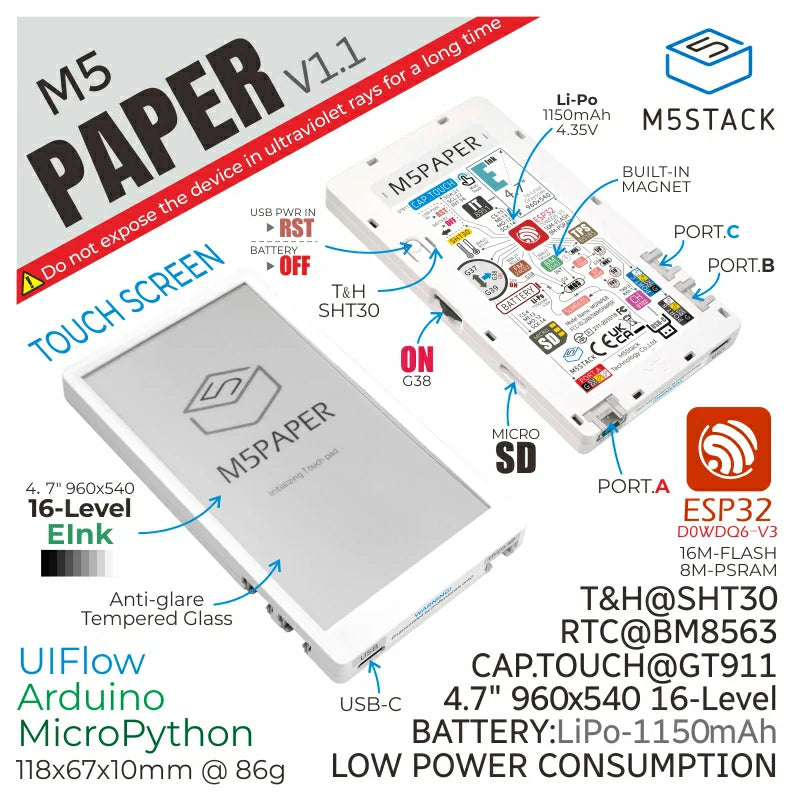

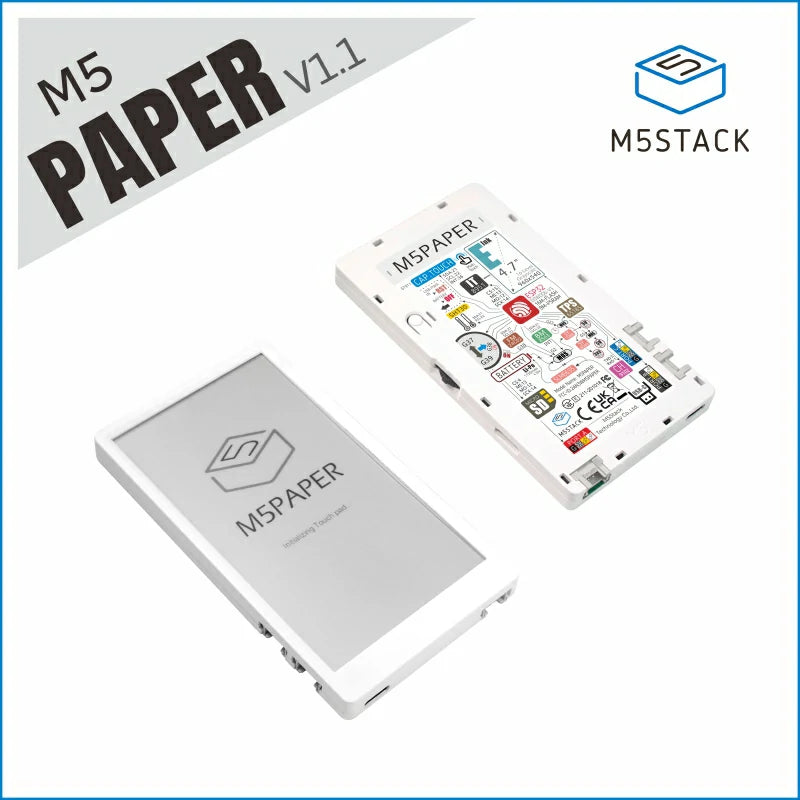

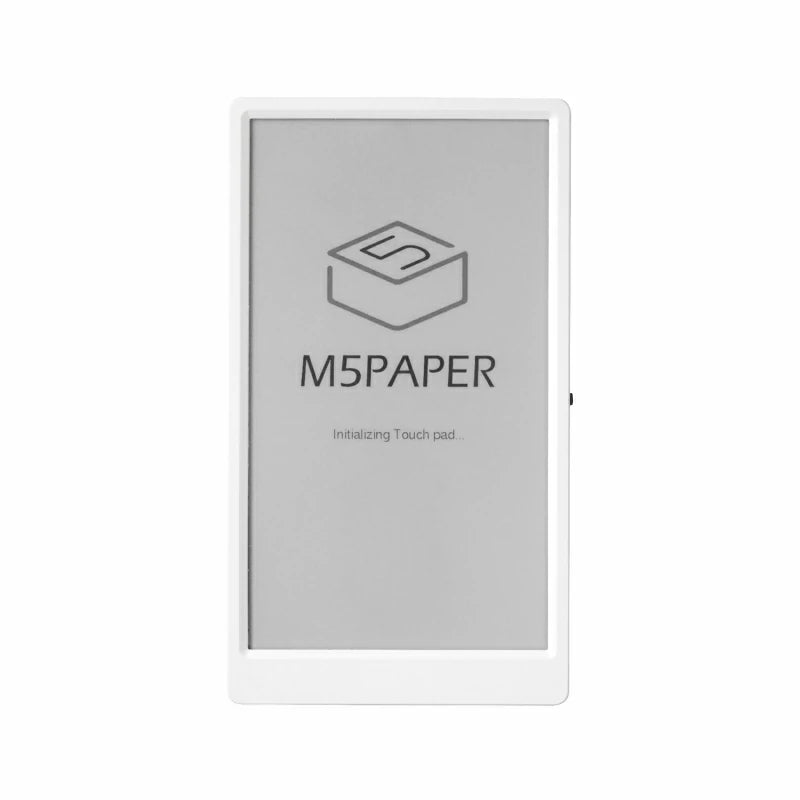

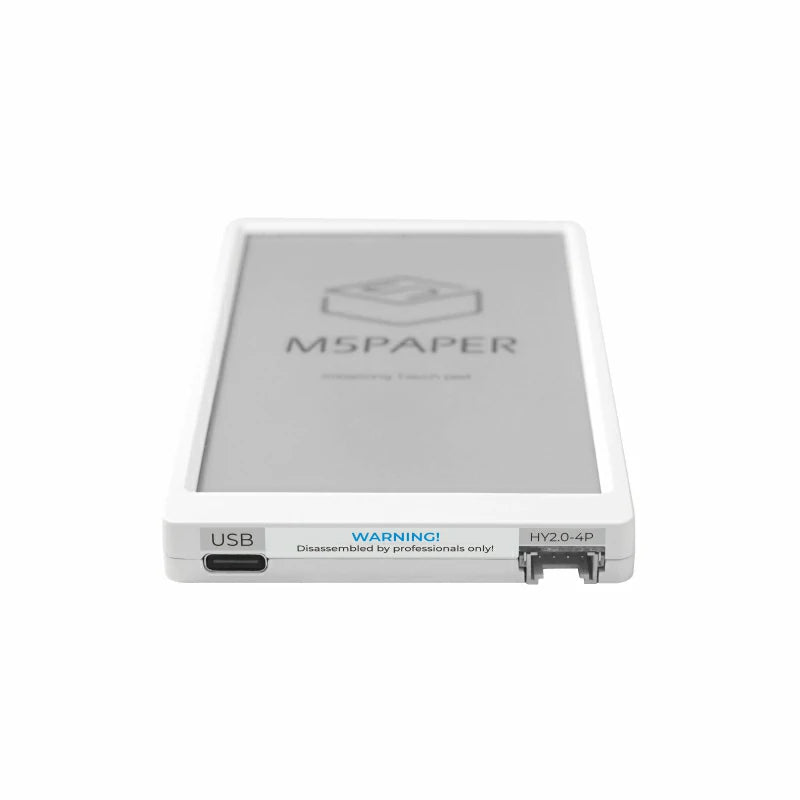

M5Pager V1.1 is a touch-enabled e-ink screen main control device launched by M5Stack, featuring the ESP32-D0WDQ6-V3 controller. The front is embedded with a 540 x 960 @4.7″ e-ink screen that supports 16-level grayscale display. It is paired with a GT911 capacitive touch panel, supporting two-point touch and various gesture operations. Compared to ordinary LCD screens, the e-ink screen provides users with a superior text reading experience, along with low power consumption and image retention when powered off.

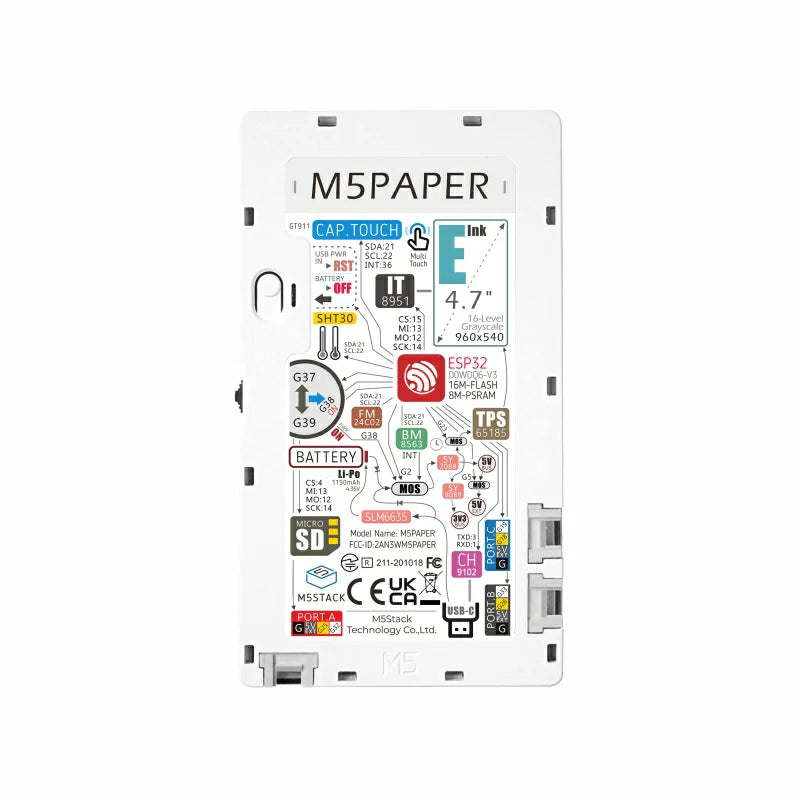

This development board integrates a rotary switch, an SHT30 temperature and humidity sensor, and physical buttons. For data storage, it includes a TF-card (microSD) interface and an FM24C02 storage chip, offering 2K-bit (256×8) EEPROM for user data storage during power loss.

It comes with a built-in 1150mAh lithium battery, combined with an internal RTC (BM8563) to enable sleep and wake functions, providing strong battery life. Additionally, it offers 3 HY2.0-4P peripheral interfaces, allowing for the expansion of various sensor devices, opening up endless possibilities for future application development.

Note

1. Do not expose the e-ink screen to ultraviolet light for extended periods, as it may cause irreversible damage.
2. The low-power management solution used in M5Pager differs from that of CORE and StickC devices. When in use, the PWR button (press the rotary switch) serves as the power button (long press for 2s). To power off the device, use the software API or press the reset button on the back. When powered via USB, the device cannot be turned off.
3. If you encounter issues with downloading programs (e.g., timeout or “Failed to write to target RAM”), try reinstalling the device drivers. For driver downloads, please refer to the content below the documentation.

Features

Embedded ESP32, supports WiFi
Built-in 16MB Flash
E-Ink low-power display panel
Supports two-point touch
Nearly 180-degree viewing angle
Magnetic back design
Built-in 1150mAh large-capacity lithium battery
HY2.0-4P peripheral interface × 3
Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO

Includes

1 × M5Pager V1.1

Applications

IoT controller
E-book reader
Industrial instrument display panel
Electronic label

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3 @ dual-core processor, main frequency 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V @ 500mA
Interfaces	USB Type-C × 1, HY2.0-4P × 3, TF-card (microSD) slot
Sleep Mode Power Consumption	3.7V @ 10µA (RTC Only)
E-ink Screen	Model: ED047TC1 540 × 960 @ 4.7″ Grayscale: 16 levels Display area: 58.32 × 103.68mm Display driver IC: IT8951E
Physical Buttons	Rotary switch × 1, reset button × 1
RTC	BM8563
Antenna	2.4G 3D antenna
PIN Breakout	G25, G32, G26, G33, G18, G19
Battery	1150mAh @ 3.7V
Operating Temperature	0 ~ 60°C
Case Material	Plastic (PC)

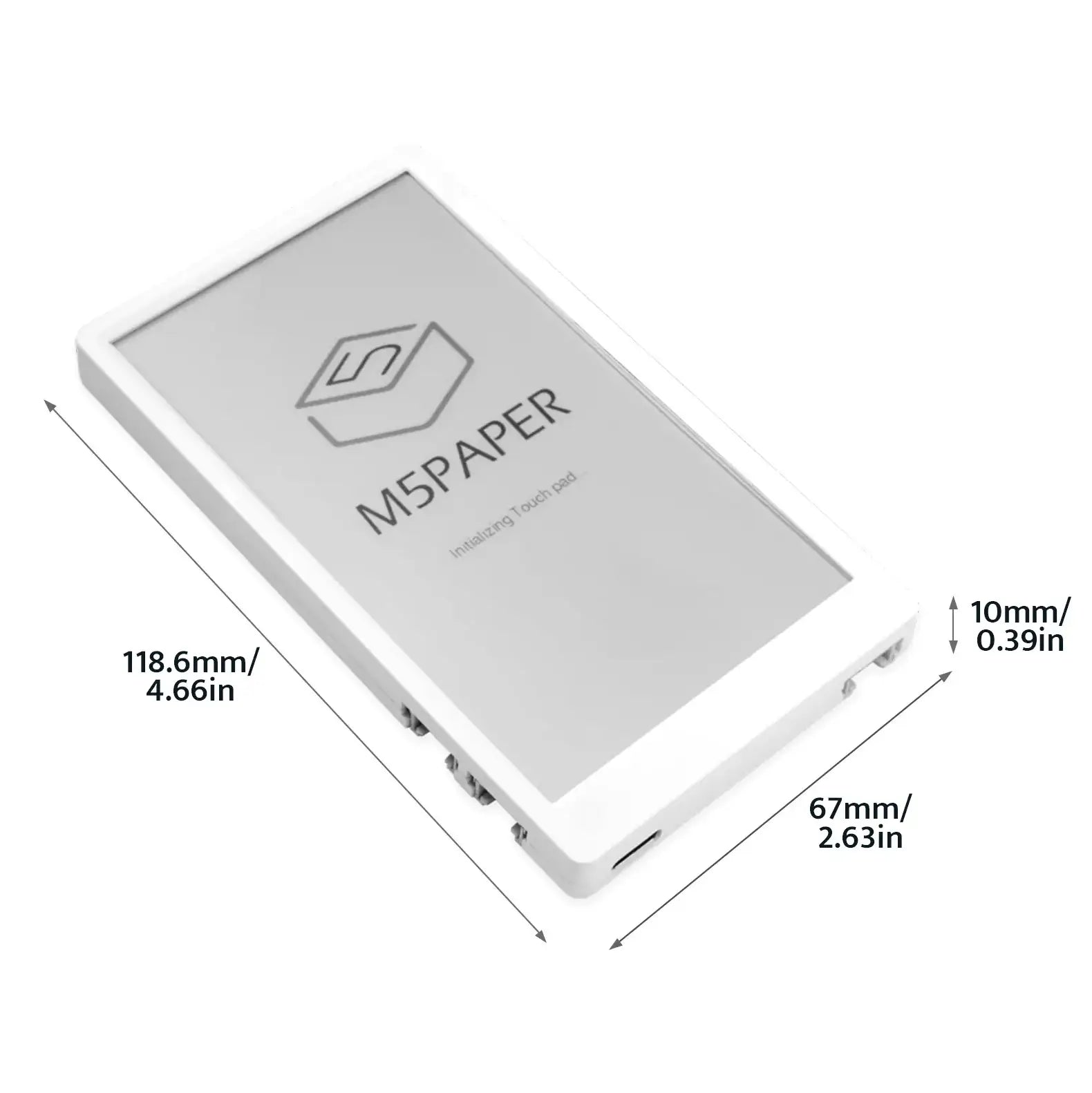

Product Size	118.6 × 67.0 × 10.0mm
Product Weight	81.9g
Package Size	120.0 × 70.0 × 14.0mm
Gross Weight	99.1g

Learn and Documents

→ DOCUMENTS

Weight	0.082 kg
Dimensions	118.6 × 67.0 × 10.0 cm
Weight	0.082 kg	Dimensions	118.6 × 67.0 × 10.0 cm

Weight	0.082 kg
Dimensions	118.6 × 67.0 × 10.0 cm
