GAT562 30S HF mesh module on white background

GAT562 30S Mesh Module – nRF52840 SX1262 30dBm

SKU: N/A Category: RFID Reader
Brand: MTools Tec

Original price was: $29.99.Current price is: $27.99.

Compact nRF52840 + SX1262 mesh module with up to 1 W output, Bluetooth 5.0 and Meshtastic / MeshCore compatibility. Available in EU868 and US915.

Working Frequency

Clear

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

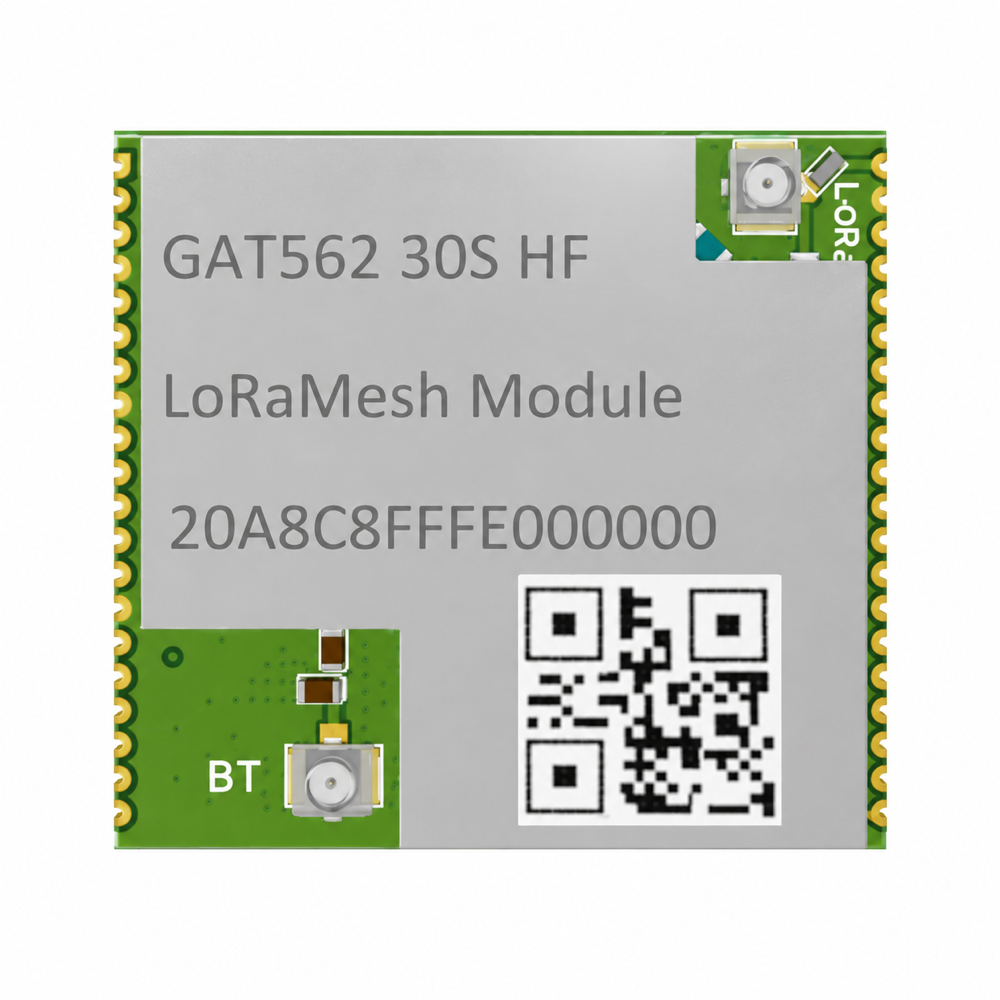

GAT562 30S Mesh Module

Build a custom off-grid mesh device with the nRF52840, SX1262 LoRa radio and an integrated power amplifier supporting up to 30 dBm (1 W). Compatible with Meshtastic and MeshCore firmware.

Choose your frequency

EU868: European 868 MHz version. US915: US 915 MHz version. Select the hardware band that matches your deployment region and network.

Hardware specifications

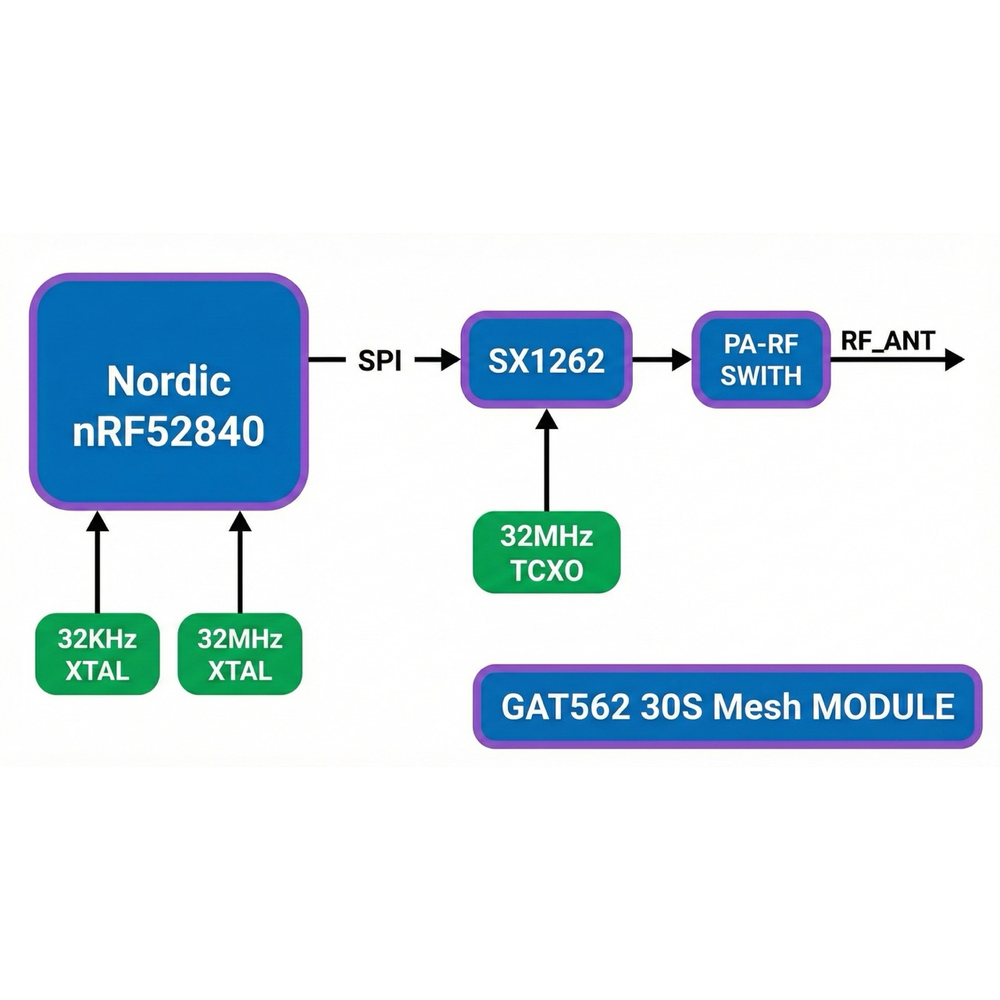

nRF52840 MCU with Bluetooth 5.0
SX1262 LoRa radio with up to 30 dBm output

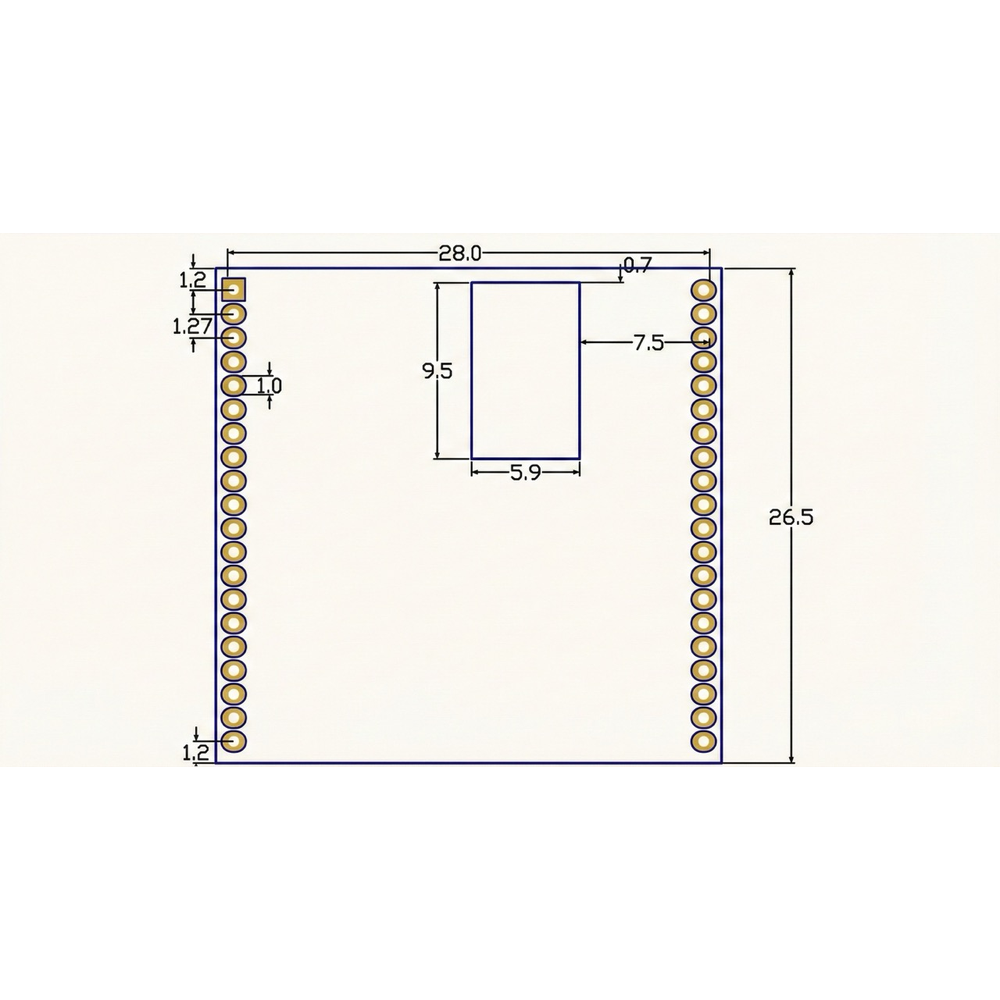

26.5 × 28 × 3.0 mm module

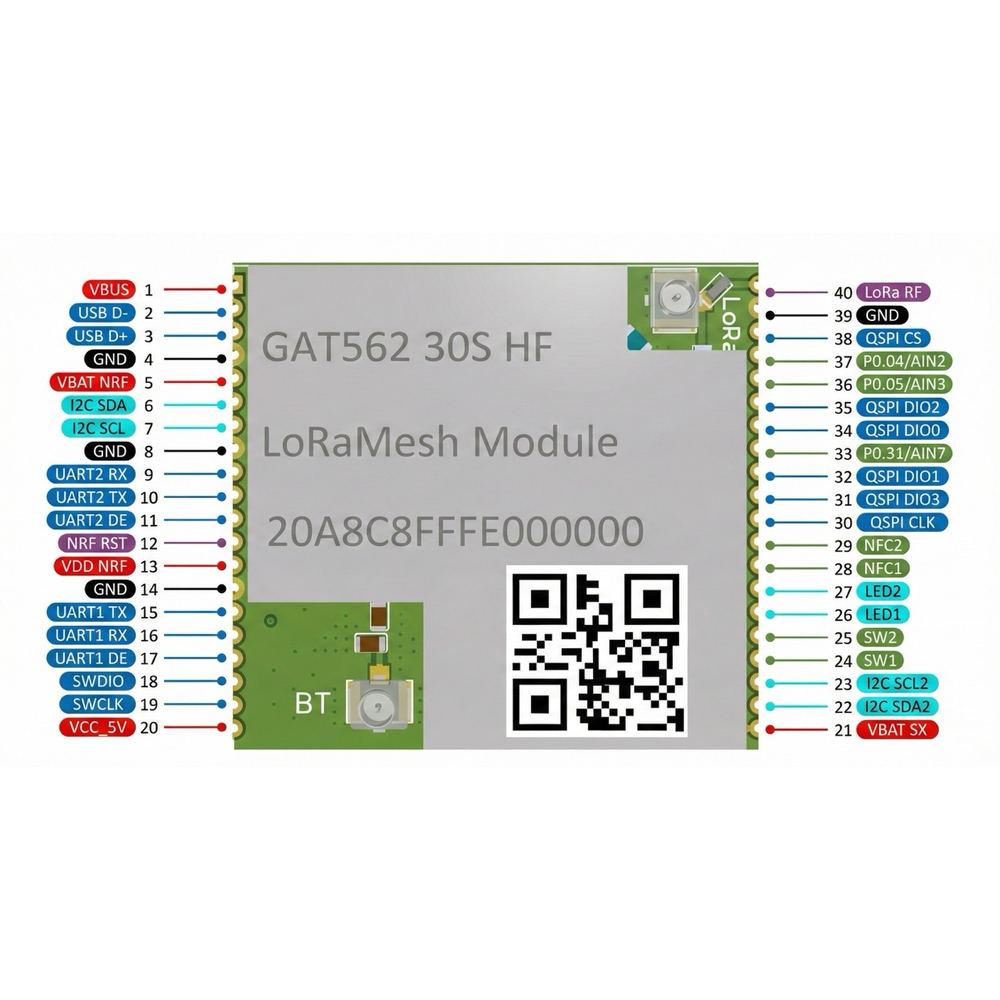

UART, I²C, GPIO, ADC, USB and SWD connections
3.3 V radio / MCU supply; 5 V PA supply
Operating temperature: −40°C to 85°C

This is a module for integration into a custom carrier board.

Integration resources

Hardware documentation, pin definitions and electrical characteristics

Specifications

Working Frequency	EU868, US915
Working Frequency	EU868, US915

Working Frequency	EU868, US915
