SenseCAP Wio Tracker L2 Pro for Meshtastic

SKU: SEEED-WIO-L2-PRO Categories: Lora, Lora Node
Brand: MTools Tec

An open-source Meshtastic device with a 3.2-inch touchscreen for standalone on-device communication and hands-on customization.
Powered by the Wio-S3 module, it combines LoRa (863–928 MHz), GNSS positioning, offline maps, Wi-Fi and BLE in one portable device—ready for everyday Mesh communication and custom connected projects.

Affiliate product: purchase, current pricing and fulfillment are handled by Seeed Studio. We may earn a commission from qualifying purchases.

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

Features

Your Standalone Meshtastic Device

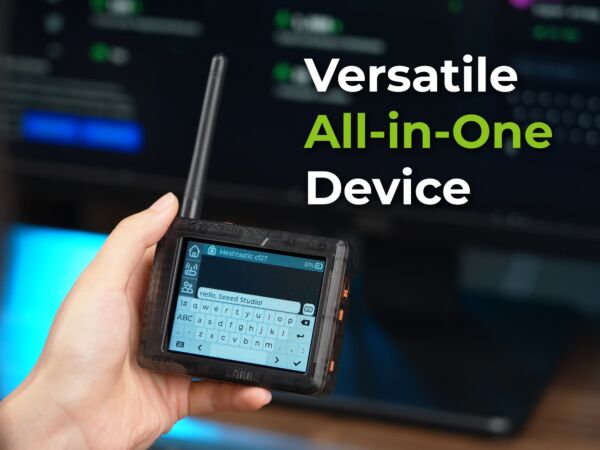

Wio Tracker L2 Pro standalone Meshtastic device

3.2″ High-Quality Touchscreen

Featuring a 320×240 high-resolution display with switchable MUI and Base UI, it delivers smooth on-device interaction for messaging, mapping, and control—without a mobile phone.

Wio Tracker L2 Pro 3.2-inch high-quality touchscreen

Offline Maps with GNSS Positioning

Pre-download offline maps to a MicroSD card and view your real-time GNSS location directly on the device, even without cellular coverage or Internet access.

ESP32S3 Powered, Ready to Build On

Powered by the ESP32-S3 with Wi-Fi and BLE, L2 Pro provides a flexible platform for UI customization, feature development, and open-source applications.

Wio Tracker L2 Pro ESP32S3 powered platform

Intuitive, Versatile Interaction

Touch, buttons, LEDs, microphone, and speaker support intuitive everyday control and richer custom interactions.

3000mAh Long-Lasting Battery

Supports extended daily use with reduced charging frequency; operates within -10°C to 55°C conditions.

Easy to Carry, Flexible Placement

A foldable antenna improves portability, and the 1/4″ mounting interface supports flexible placement with compatible accessories.

One Hardware, Endless Possibilities

Build your own interface, dashboard, game, map tool, or interactive experience—L2 Pro is ready for whatever you want to make.

Specifications

Item	Parameter
Processor	Wio-S3 (ESP32S3 + SX1262 Module)
LoRa	863-928 MHz MAX TX Power: 20dBm
GNSS	L76K (GPS, BeiDou, GLONASS, QZSS)
On-chip Memory	16MB Flash / 8MB PSRAM
Antenna	Foldable LoRa Antenna
	Wifi/BLE 5.0: FPC antenna
	GPS: ceramic antenna
Interface	Grove * 1
	MicroSD Card Slot
	Quarter-inch threaded hole
QSPI Interface	Compatible with IPS Screen & E-INK Screen
Power Input	USB Type-C: 5V — 1A
	Solar:JST-PH 2P-2.0mm, 5V ~ 13V
	Li-ion Battery (3P-1.25mm): 3.7V
IPS Touch Screen	Size: 3.2 inch
IPS Touch Screen	Resolution: 240 × 320 pixels
LED	Mesh LED * 1 Charging LED * 1
Button	WAKE-UP * 1 User/Boot * 1 RST * 1 Power Switch * 1
Audio	I2S Codec: ES8311
	MIC: Pin Reserved
	Speaker: 6Ω 0.8W
Communication Distance	Up to 5.8 km
Dimension	Dimensions pending confirmation: manufacturer lists 87.5 × 69 × 26.6 with inconsistent units.
Device Weight	171.5g
OperationTemperature	-10℃ to +55℃
Certification	FCC,CE,RoHS,TELEC

Battery

Item	Parameter
Battery Capacity	Rechargeable Li-ion battery, 3000mAh
Battery Life Monitoring	Periodic uplink battery level
Charging Protocol	USB Type-C (Supports charging, flashing, data transfer and OTG)
Device Power Input	5V, 1A
Fully-charged cut-off voltage	4.2V
Charging Temperature Limit	0 to +45℃

Hardware Overview

Applications

From outdoor adventures and crowded festivals to open-source prototyping and indoor mesh hub, L2 Pro combines standalone Mesh communication with a flexible hardware platform you can explore, customize, and build on.

Outdoor Adventures
Indoor Mesh Hub
Festivals & Large Events
Maker & Developer Projects

Part List and Regional Availability

Wio Tracker L2 Pro (Built-in Battery)	x1
RP‑SMA to SMA RF adapter metal	x1

Regional Availability

This product is not available for sale, shipment, or resale in Mainland China due to regional restrictions.

Affiliate product. Seeed Studio handles payment, shipping and support. Check the destination page for current price and availability.

Buy at Seeed Studio
