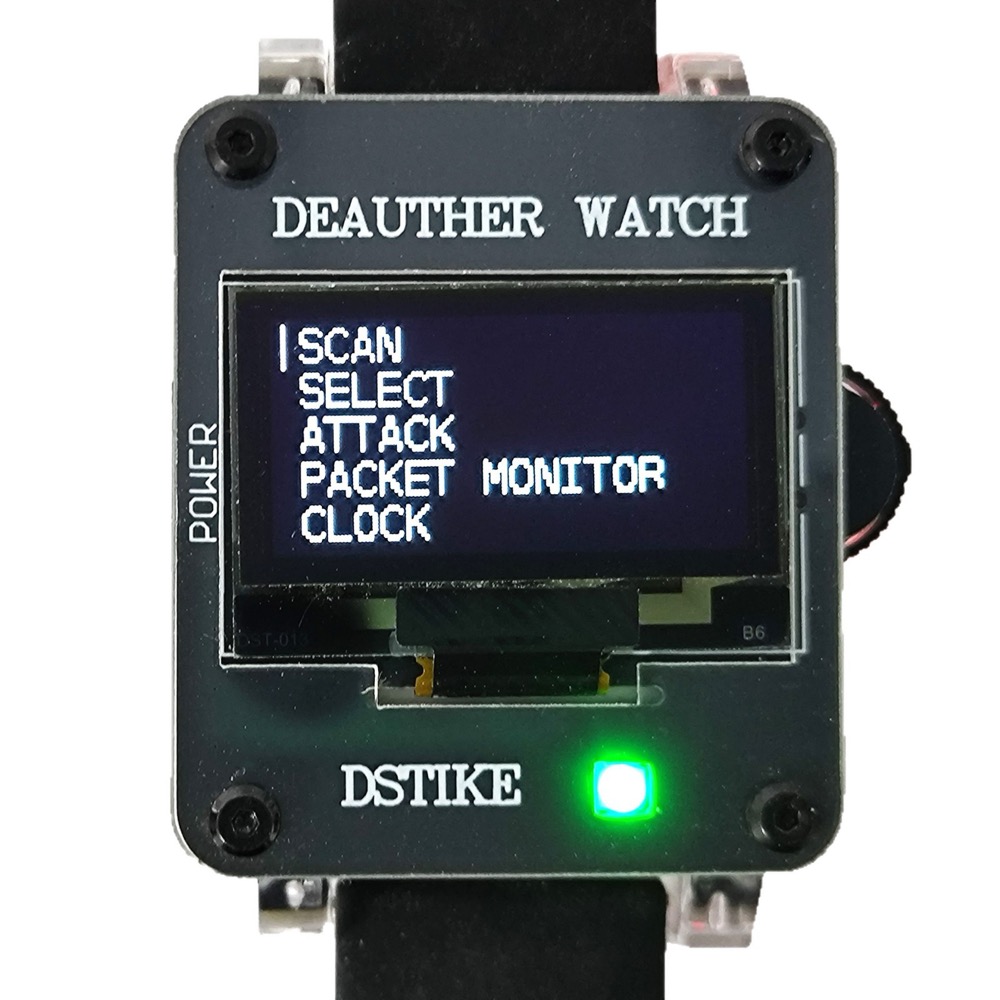

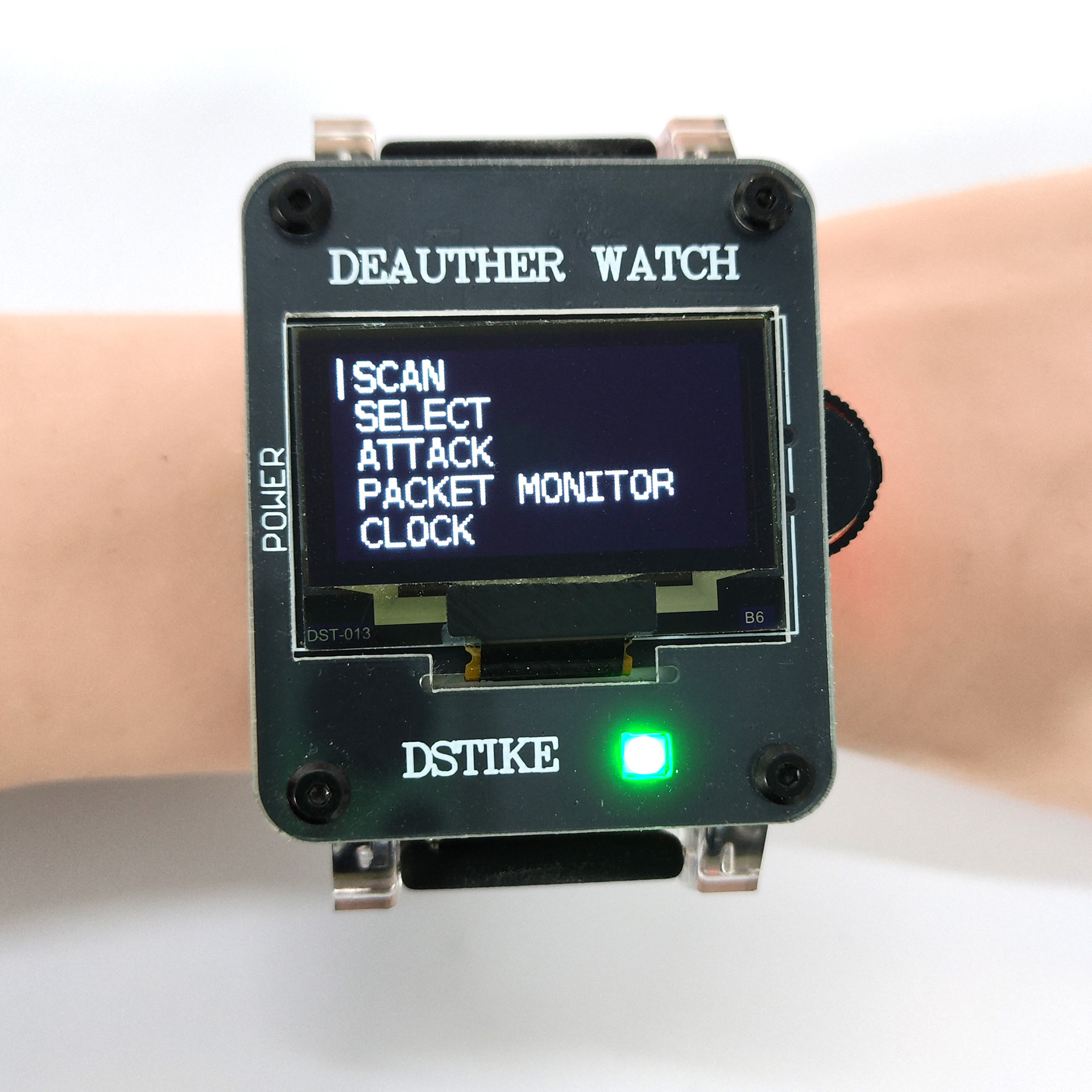

DSTIKE Deauther Watch X II ESP8266 development watch on white background

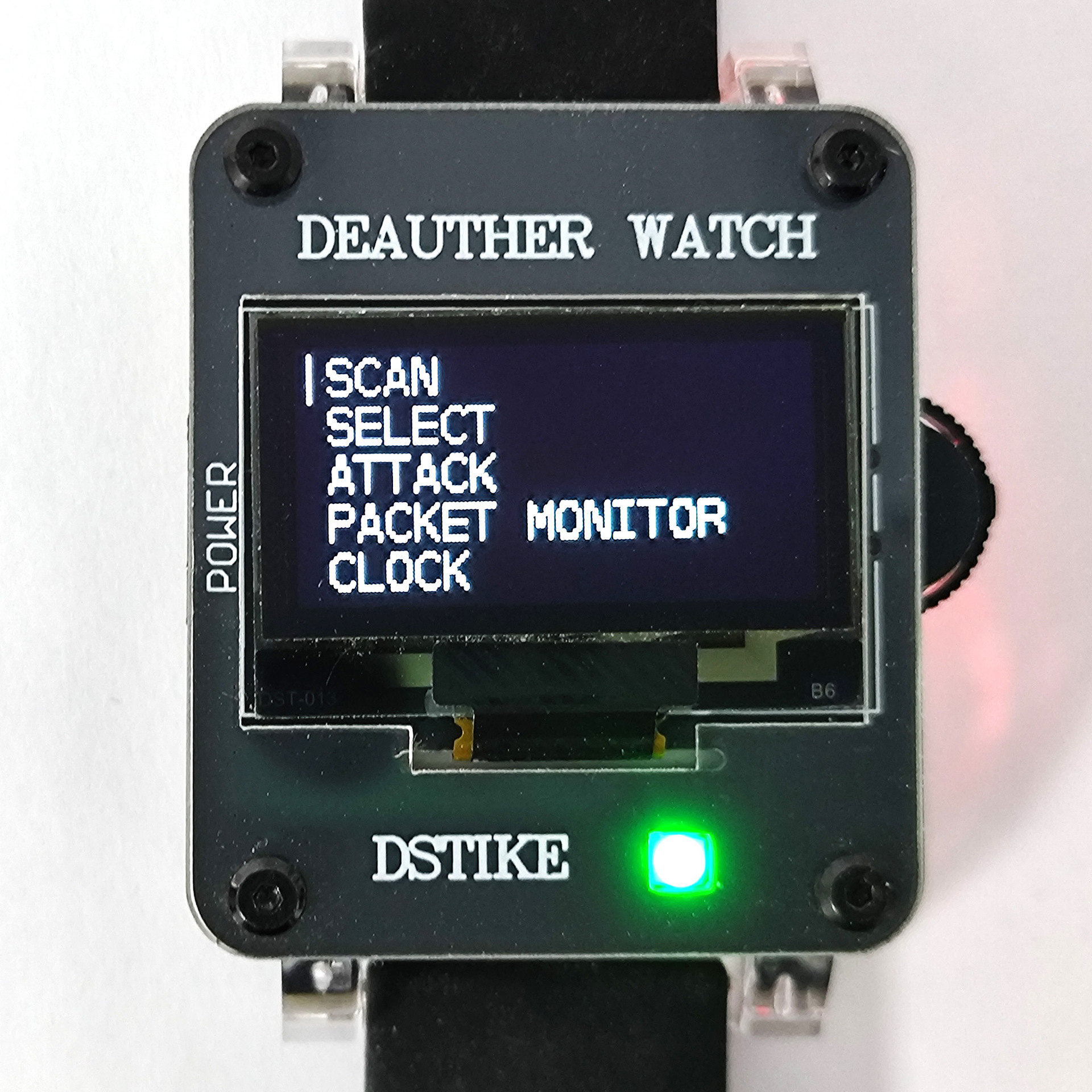

Deauther Watch X II OLED menu and three-way navigation switch

DSTIKE Deauther Watch X II – ESP8266 2.4GHz Development Watch

SKU: DEAUTHER-WATCH-X-II Category: Deauther
Brand: MTools Tec

Original price was: $39.99.Current price is: $36.99.

DSTIKE Deauther Watch X II is an assembled ESP8266 2.4GHz Wi-Fi development watch with a 1.3-inch OLED, 700mAh battery, USB-C charging and flashing, three-way control, and open-source firmware.

ESP8266 ESP-07 with 4MB flash
USB-C data and charging
For education, development, and authorized security testing

Secure Checkout

Fast Shipping

Easy Returns

24/7 Support

ESP8266 / 2.4GHz / USB-C

Deauther Watch X II puts an open Wi-Fi development platform on your wrist.

Built around a customized ESP8266 ESP-07, this assembled DSTIKE watch combines a 1.3-inch OLED, 700mAh battery, three-way control, RGB status LED, and USB-C firmware access in a compact wearable enclosure.

ESP8266ESP-07 with 4MB flash

1.3-inchSH1106 OLED display

700mAhRechargeable battery

USB-CCharge and flash firmware

WEARABLE DEVELOPMENT HARDWARE

A compact platform for learning and authorized Wi-Fi testing.

Deauther Watch X II is designed for ESP8266 developers, makers, educators, and security professionals working with their own 2.4GHz networks or systems they have explicit permission to test. The preinstalled open-source firmware provides an on-device interface for network observation and controlled lab exercises.

The exposed-board design keeps the display and controls easy to reach while a transparent acrylic cover protects the electronics. It is supplied assembled with the battery and strap installed, so you can begin exploring the hardware without building the enclosure first.

WHAT CHANGED

Practical upgrades over Deauther Watch X.

USB-C connectionReplaces the previous Micro-USB connector for charging and firmware flashing.

700mAh batteryIncreased from 500mAh for more capacity between charges.

Hex-screw assemblyUpdated enclosure hardware gives the assembled watch a more serviceable construction.

Updated status controlRevised RGB indicator and power-control design provide clearer device feedback.

OPEN AND PROGRAMMABLE

Flash your own ESP8266 projects over USB-C.

The customized ESP-07 module provides 4MB of flash and is compatible with the Arduino IDE toolchain. The USB-C data connection supports both charging and firmware programming, making the watch useful beyond the preinstalled firmware.

A three-way navigation switch provides menu input without a touch panel, while the WS2812B RGB LED gives visible status feedback. The internal ceramic antenna keeps the standard assembled version compact.

SPECIFICATIONS

Deauther Watch X II hardware details.

Controller	Customized ESP8266 ESP-07 module with 4MB flash
Wireless	2.4GHz Wi-Fi, IEEE 802.11b/g/n
Display	1.3-inch SH1106 monochrome OLED
Controls	Three-way navigation switch and power control
Status light	WS2812B addressable RGB LED
Battery	Built-in 700mAh rechargeable battery
USB	USB-C for charging, data, and firmware flashing
Antenna	Built-in ceramic antenna
Construction	3D-printed enclosure with transparent acrylic panels and hex screws
Listed dimensions	Approx. 42 x 60mm watch body
Listed weight	Approx. 100g
Power input	5V, 100mA listed input
Listed operating temperature	10 to 35 degrees C

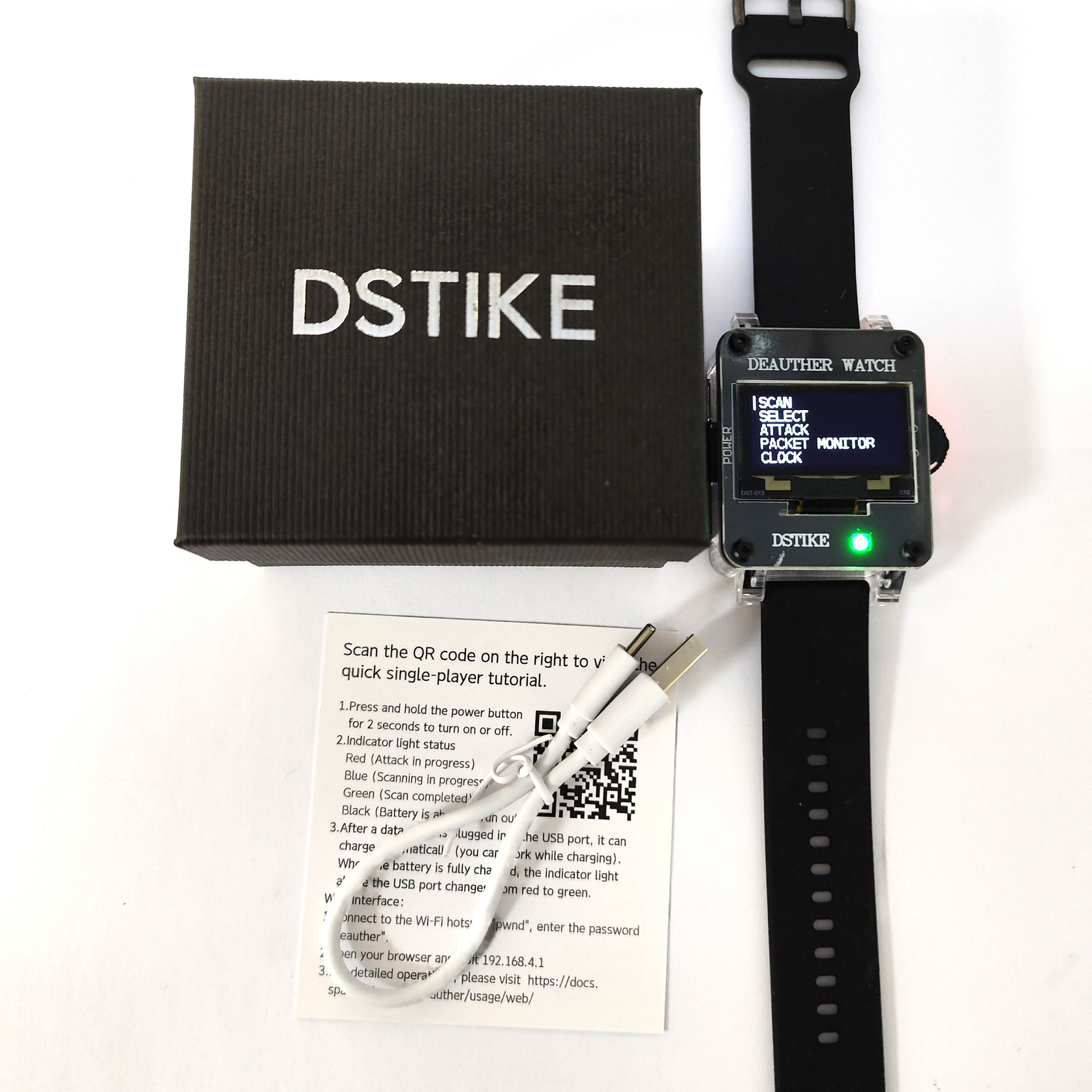

IN THE BOX

Assembled and ready for development.

Deauther Watch X II assembled watch
Built-in 700mAh battery
Watch strap
USB-C data and charging cable
Quick-start guide

Version note: this listing is for the assembled standard version with its built-in ceramic antenna. An external antenna expansion board is not included.

Compatibility and operation notes

This ESP8266 platform supports 2.4GHz 802.11b/g/n Wi-Fi only. It does not support 5GHz Wi-Fi, Wi-Fi 6, Bluetooth, or cellular networks.
Available functions depend on the installed firmware version and configuration.
Open-source development hardware may require firmware flashing, configuration, and troubleshooting.
Battery runtime varies with display use, radio activity, LED brightness, and firmware behavior.
The enclosure is not advertised as waterproof or dustproof.

Responsible use

Use Deauther Watch X II only for education, development, and security testing on networks and devices that you own or have explicit permission to test. Wireless regulations and computer-access laws vary by location; the operator is responsible for lawful use.

Weight	0.1 kg
Weight	0.1 kg

Specifications

Controller	ESP8266 ESP-07 with 4MB flash
Display	1.3-inch SH1106 monochrome OLED
Wireless	2.4GHz Wi-Fi 802.11b/g/n
Battery	700mAh rechargeable
USB	USB-C charging, data, and firmware flashing
Version	Assembled standard version; external antenna board not included
Controller	ESP8266 ESP-07 with 4MB flash	Display	1.3-inch SH1106 monochrome OLED
Wireless	2.4GHz Wi-Fi 802.11b/g/n	Battery	700mAh rechargeable
USB	USB-C charging, data, and firmware flashing	Version	Assembled standard version; external antenna board not included

Weight	0.1 kg
Controller	ESP8266 ESP-07 with 4MB flash
Display	1.3-inch SH1106 monochrome OLED
Wireless	2.4GHz Wi-Fi 802.11b/g/n
Battery	700mAh rechargeable
USB	USB-C charging, data, and firmware flashing
Version	Assembled standard version; external antenna board not included
