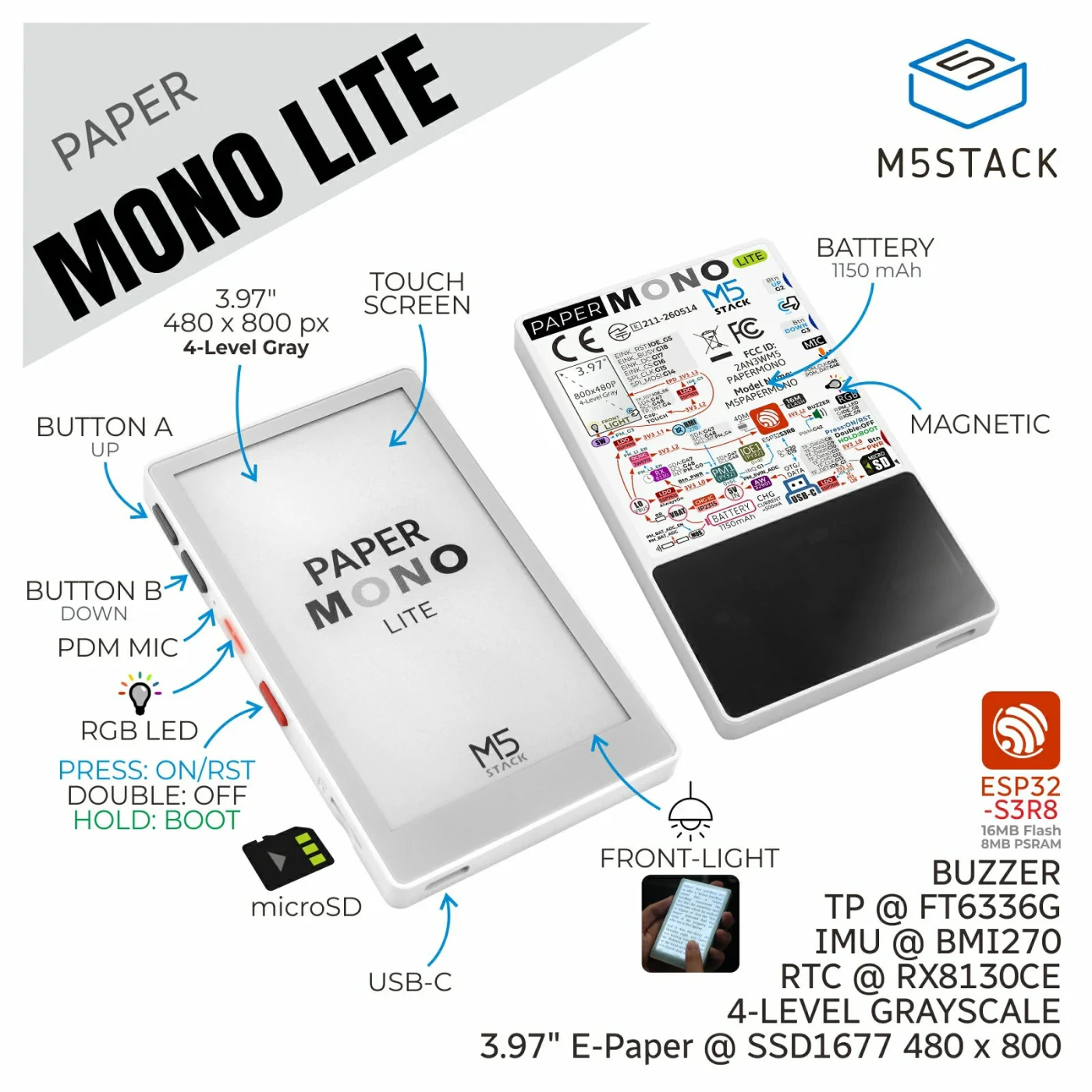

M5PaperMono is a 3.97-inch, 480 x 800 four-level grayscale touch e-paper development board powered by ESP32-S3. Both versions include a front light, Wi-Fi, BLE, microSD, RTC, IMU and a 1150mAh battery. Choose Standard for integrated LoRa and NFC hardware, or Lite without LoRa and NFC.
PaperMono combines a high-resolution touch e-paper display, adjustable front light and an ESP32-S3 development platform in a slim handheld form. Choose Standard for integrated LoRa and NFC, or Lite for projects that only need the shared display platform.

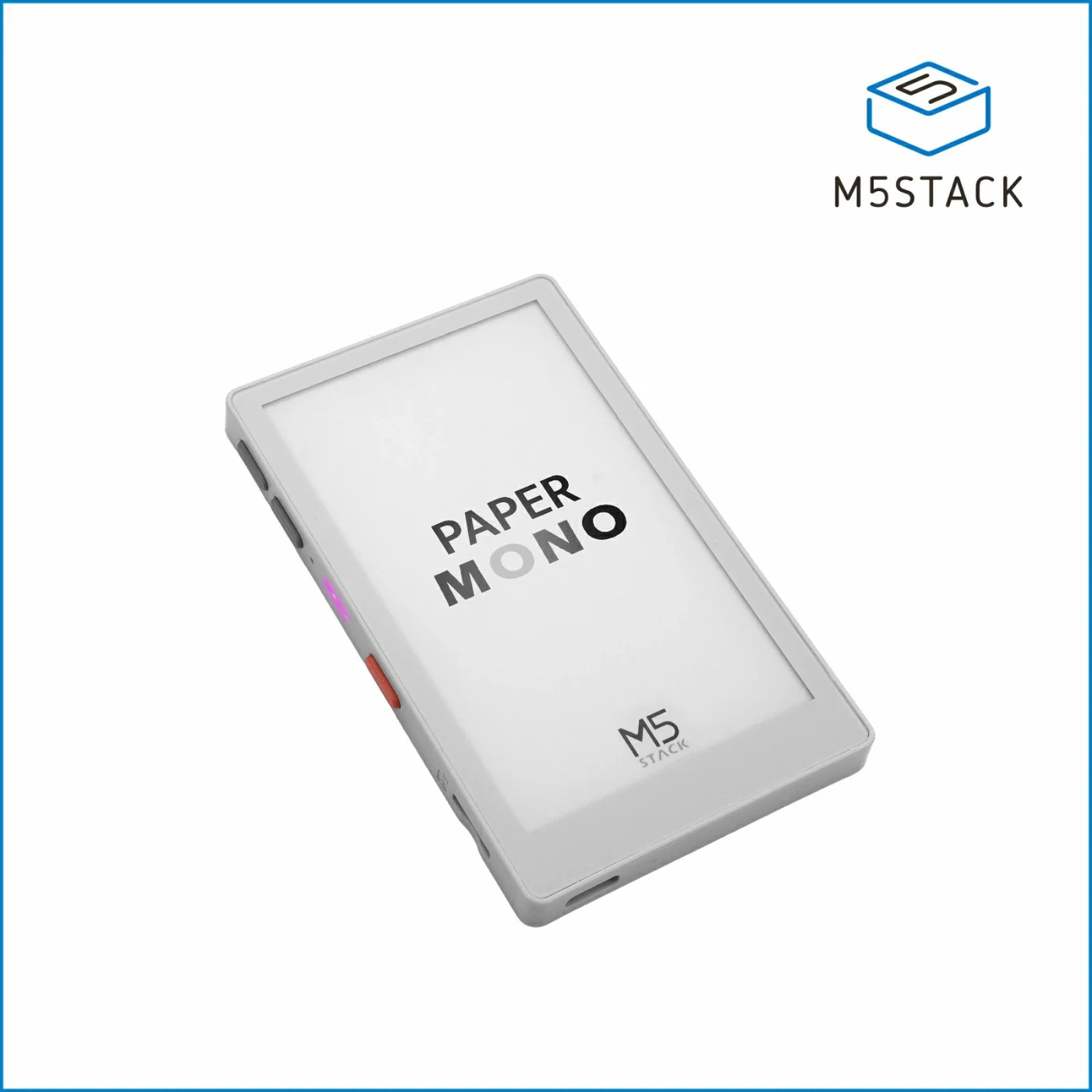

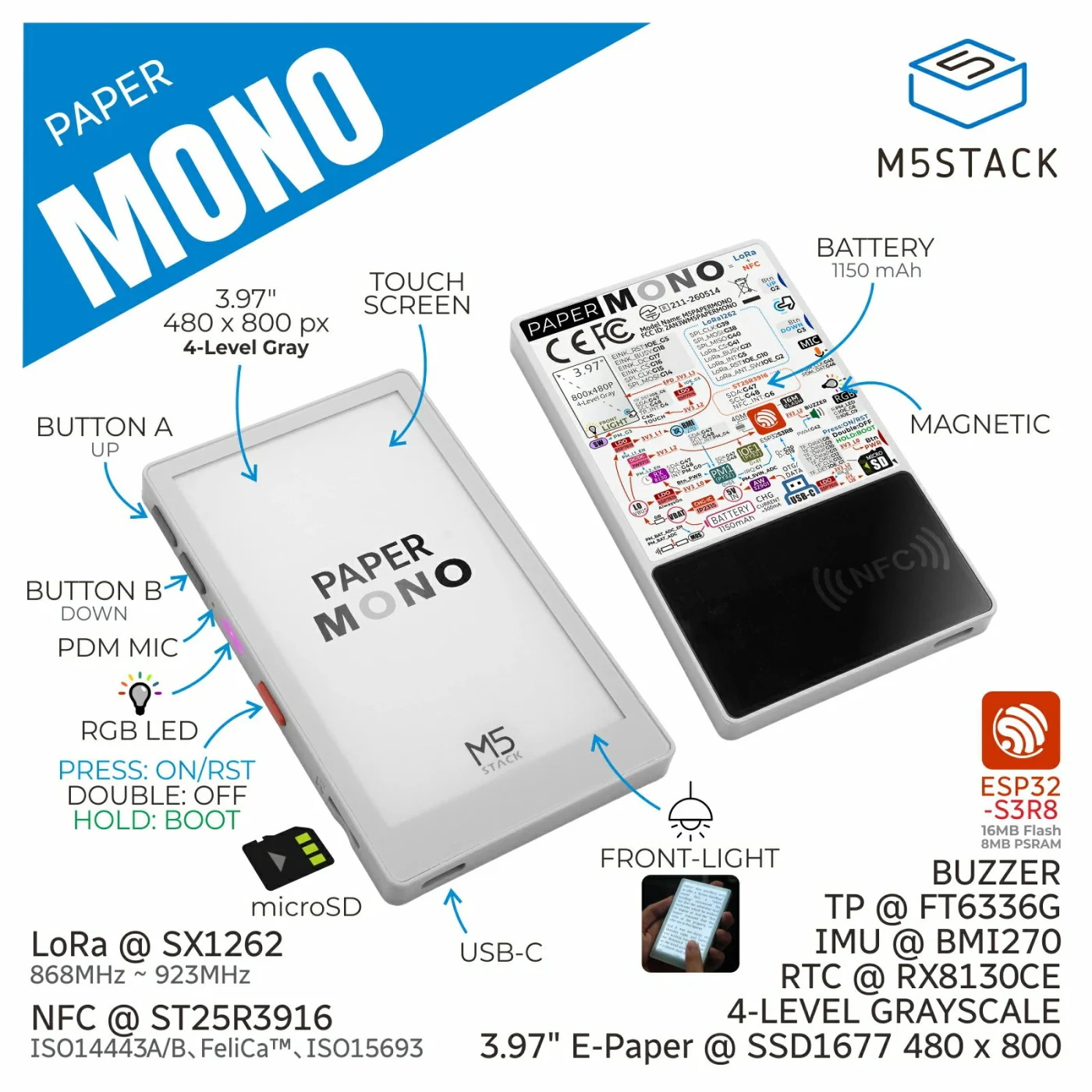

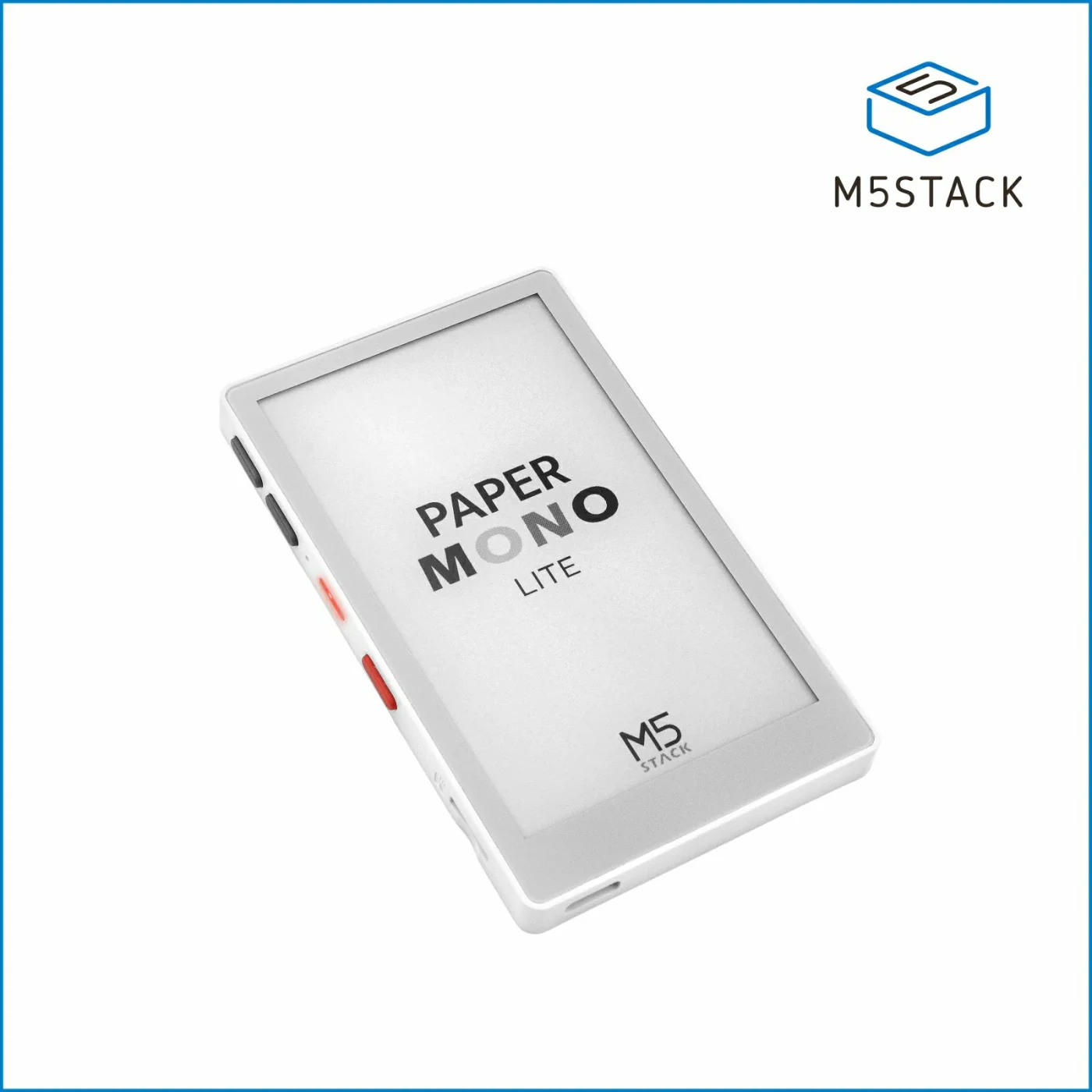

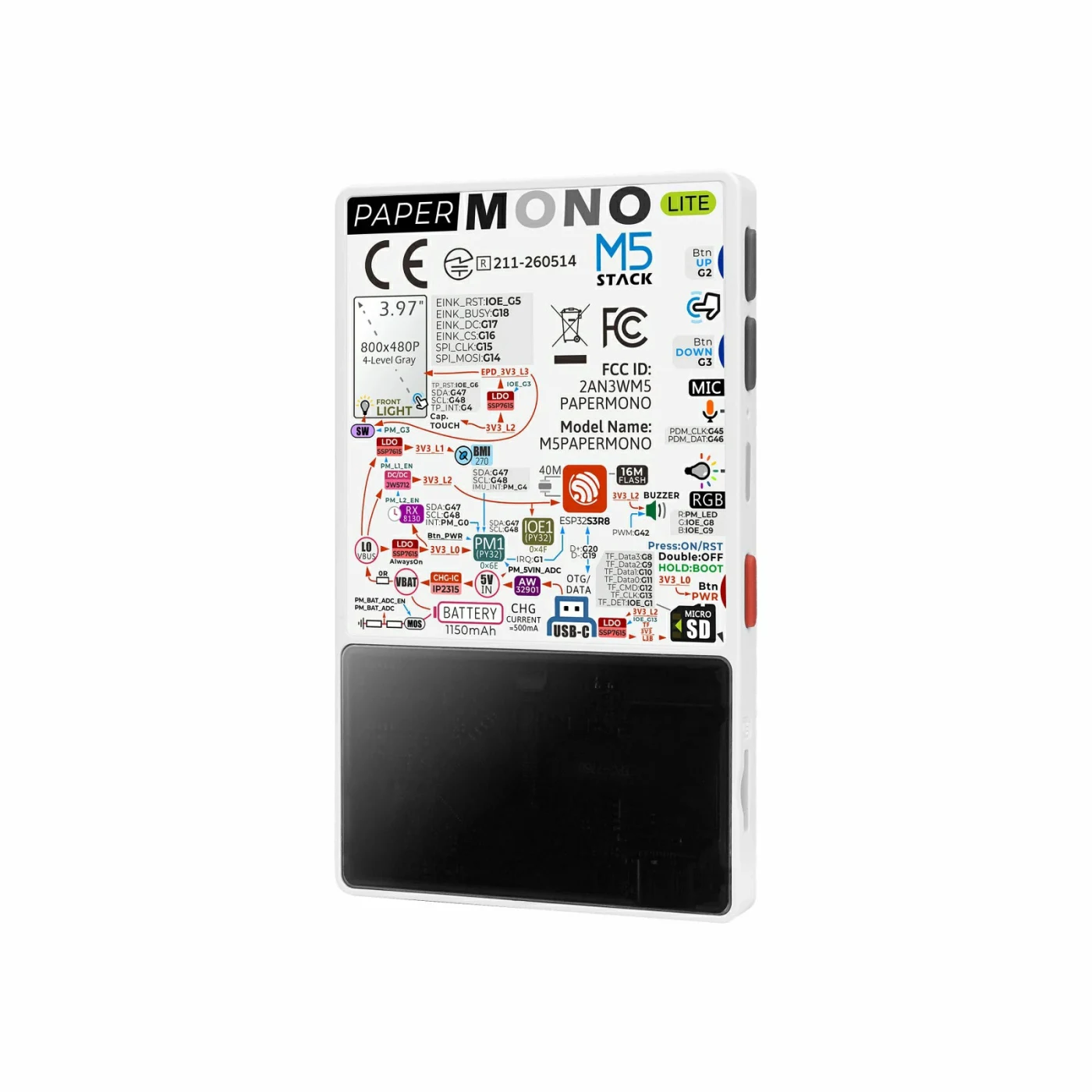

Both versions share the same core display experience. Standard adds integrated LoRa and NFC hardware; Lite omits those two radios for a streamlined display platform.
For long-range messaging, identification, access control and distributed IoT projects.

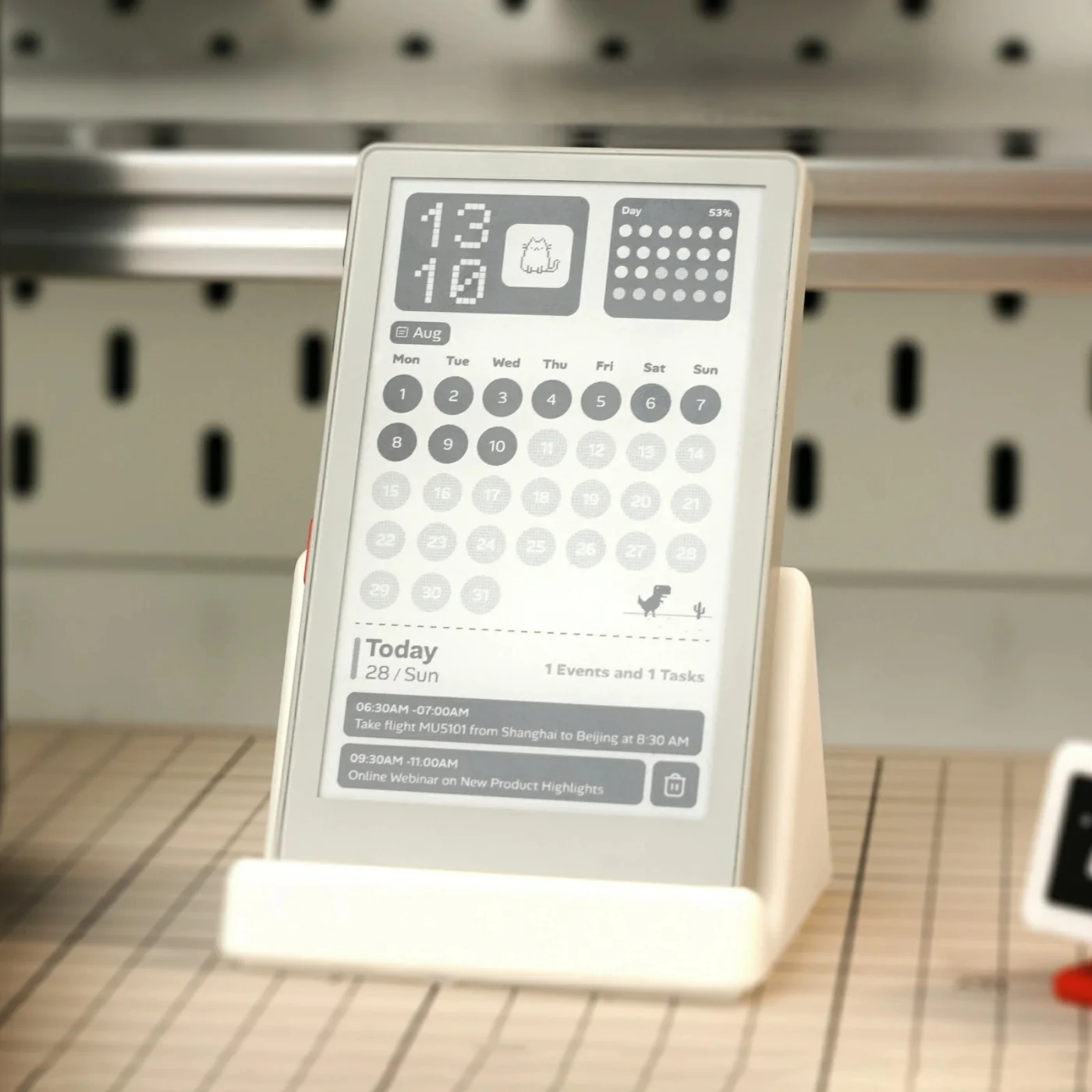

For readers, dashboards, signage and local Wi-Fi or Bluetooth applications.
SSD1677 monochrome e-paper with 480 × 800 resolution, four grayscale levels and FT6336G capacitive touch.
The integrated front light extends the display beyond daylight and bright indoor environments.
Dual-core ESP32-S3R8 up to 240MHz with 16MB Flash and 8MB Octal PSRAM.
BMI270 six-axis IMU and a PDM microphone support interactive and context-aware applications.
A microSD card slot and RX8130CE RTC support offline assets, logging and scheduled interfaces.
1150mAh battery, USB-C 5V input and M5PM1 power management support low-power operation.
| SoC | ESP32-S3R8, dual-core Xtensa LX7 up to 240MHz |
|---|---|
| Memory | 16MB Flash, 8MB Octal PSRAM |
| Wireless | 2.4GHz Wi-Fi and Bluetooth Low Energy |
| Display | 3.97-inch SSD1677 monochrome e-paper, 480 × 800, four-level grayscale |
| Touch / light | FT6336G capacitive touch; integrated e-paper front light |

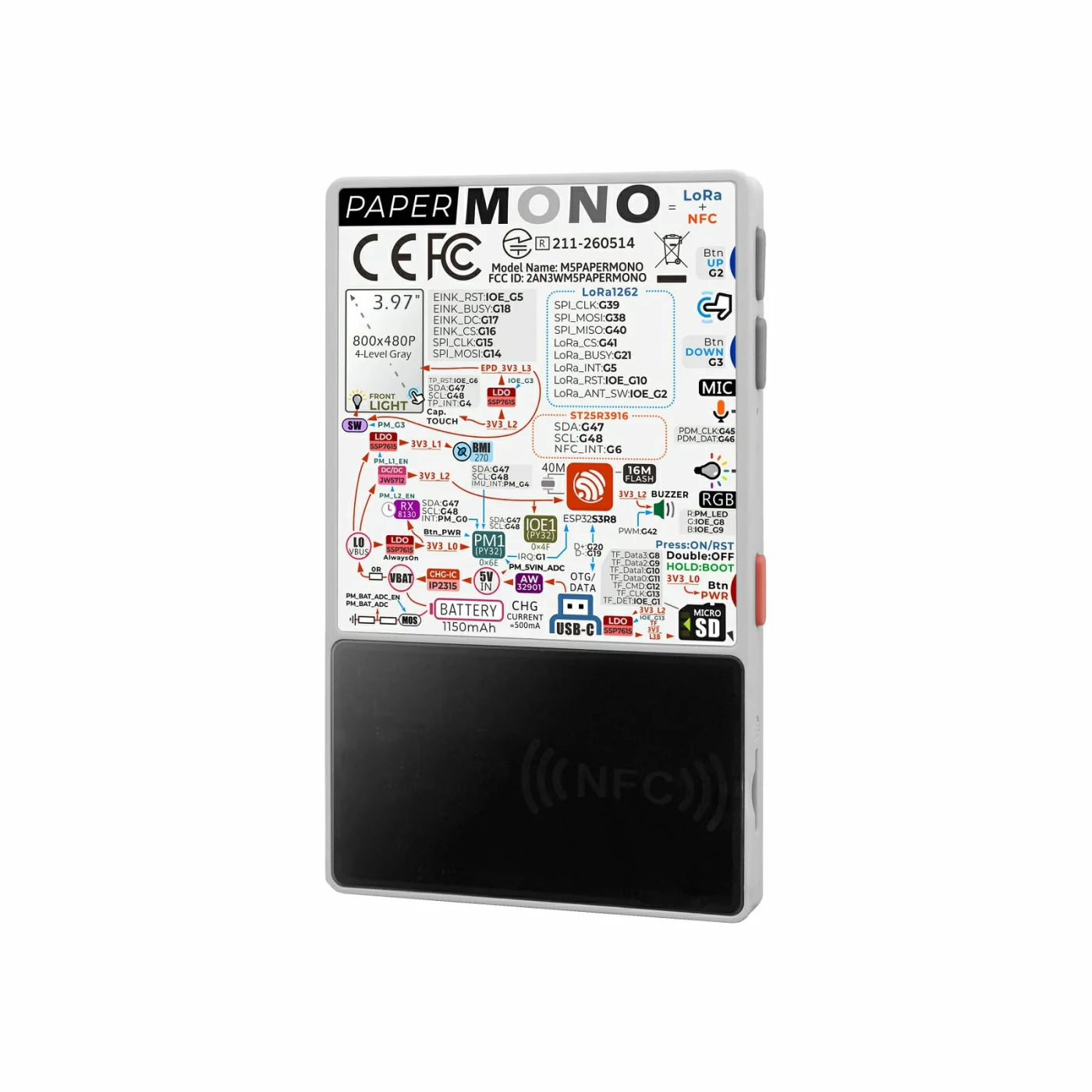

| Standard only | ST25R3916 NFC; SX1262 LoRa 868–923MHz with built-in FPC antenna |
| Sensors / audio | BMI270 six-axis IMU, PDM microphone, built-in buzzer |
| Storage / RTC | microSD card slot; RX8130CE real-time clock |
| Controls / indicator | 2 user keys, 1 power key and built-in RGB LED |
| Power | 1150mAh battery; USB Type-C DC 5V; M5PM1 power management |

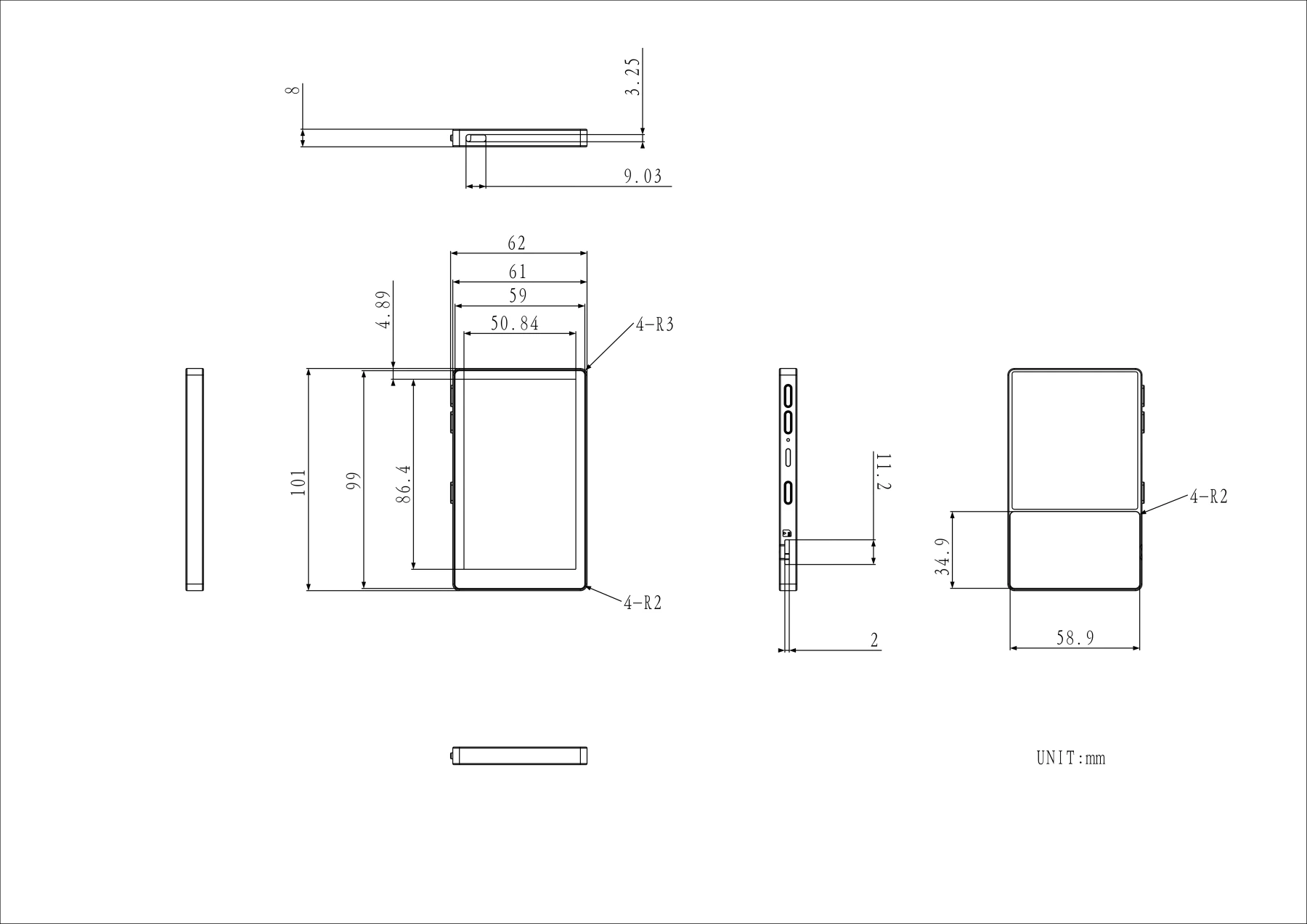

| Dimensions | 61.0 × 101.0 × 7.95mm |
Package includes 1 × PaperMono. Product weight, package dimensions and gross weight are still listed as work in progress by M5Stack.
The following operating guidance and refresh measurements come from M5Stack’s updated PaperMono documentation.
| M5GFX refresh mode | Official lab result |
|---|---|
epd_quality |
4.71 s |
epd_text |
0.45 s |
epd_fast |
0.34 s |
epd_fastest |
0.07 s |
*Standard version only.
The M5Stack ESP-IDF UserDemo covers display refresh, front-light control, battery status, IMU, microphone, RGB LED, buzzer, Wi-Fi, microSD, sleep/wake and shutdown. Standard-version demos also cover NFC and LoRa.
| Version | Standard, Lite |
||
|---|---|---|---|
| SoC | ESP32-S3R8, dual-core Xtensa LX7 up to 240MHz |
||
| Memory | 16MB Flash + 8MB Octal PSRAM |
||
| Display | 3.97-inch SSD1677 e-paper, 480 x 800, four-level grayscale |
||
| Touch and Light | FT6336G capacitive touch + integrated front light |
||
| Wireless | 2.4GHz Wi-Fi + Bluetooth Low Energy |
||
| Battery | 1150mAh |
||
| Product Size | 61.0 x 101.0 x 7.95mm |
||
| Version | Standard, Lite |
SoC | ESP32-S3R8, dual-core Xtensa LX7 up to 240MHz |
| Memory | 16MB Flash + 8MB Octal PSRAM |
Display | 3.97-inch SSD1677 e-paper, 480 x 800, four-level grayscale |
| Touch and Light | FT6336G capacitive touch + integrated front light |
Wireless | 2.4GHz Wi-Fi + Bluetooth Low Energy |
| Battery | 1150mAh |
Product Size | 61.0 x 101.0 x 7.95mm |
| Version | Standard, Lite |
|---|---|
| SoC | ESP32-S3R8, dual-core Xtensa LX7 up to 240MHz |
| Memory | 16MB Flash + 8MB Octal PSRAM |
| Display | 3.97-inch SSD1677 e-paper, 480 x 800, four-level grayscale |
| Touch and Light | FT6336G capacitive touch + integrated front light |
| Wireless | 2.4GHz Wi-Fi + Bluetooth Low Energy |
| Battery | 1150mAh |
| Product Size | 61.0 x 101.0 x 7.95mm |
